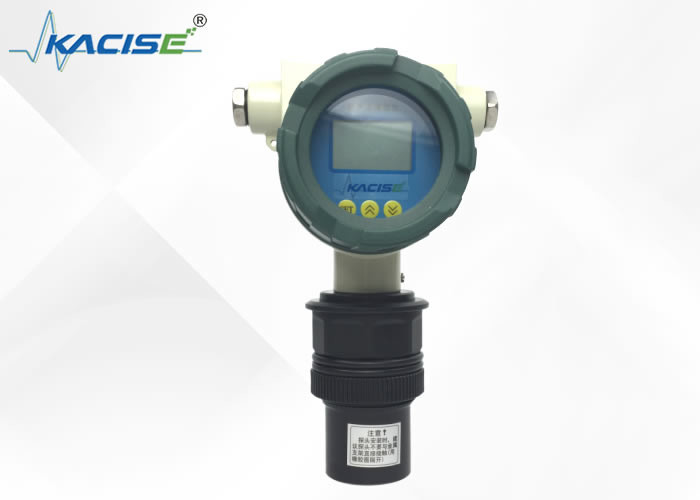

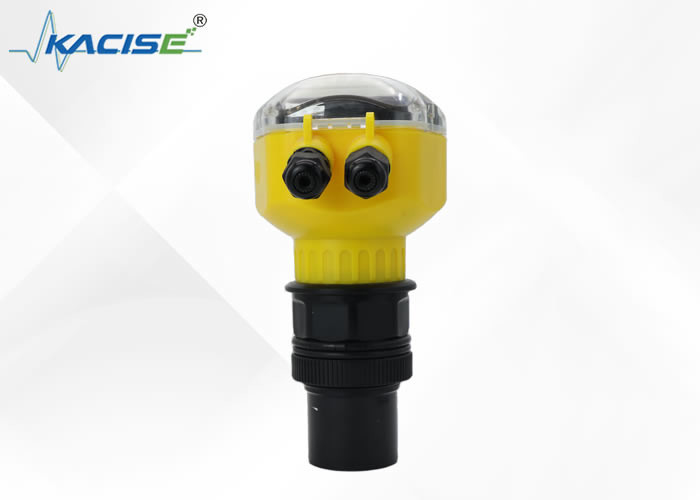

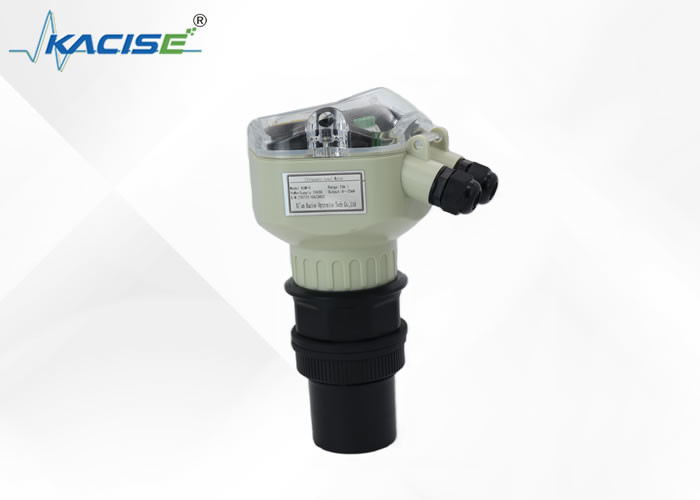

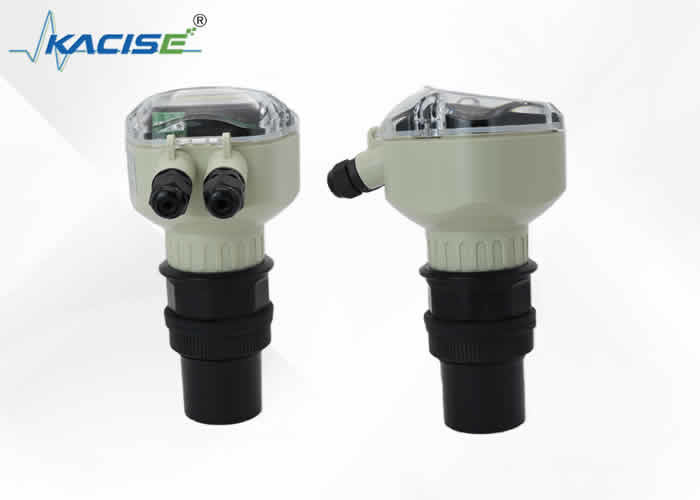

Non-contact IP68 Two-wire Ultrasonic Level Gauge For Industrial Corrosive Level Monitoring

Non-contact IP68 Two-wire Ultrasonic Level Gauge For Industrial Corrosive Level Monitoring

Non-contact Ultrasonic Level Gauge

IP68 Ultrasonic Level Gauge

Place of Origin:

china

Brand Name:

KACISE

Certification:

CE

Model Number:

KUM Series

Contact Us
Request A Quote
Product Details
Range:
5m,10m,15m,20m,30m,40m,50m,60m
Accuracy:
0.5%~1%
Resolution:
3mm Or 0.1%(The Larger One Is Effective)
Display:
English LCD
Communication:
RS485,RS232 (optional)
Protection:
Display Instrument IP66,transducer IP68
Protocol:
Modbus-RTU
Highlight:

Non-contact Ultrasonic Level Gauge

,

IP68 Ultrasonic Level Gauge

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description
Product Description
Non-contact IP68 Two-wire Ultrasonic Level Gauge For Industrial Corrosive Level Monitoring 0

The Non-contact IP68 Two-Wire Ultrasonic Level Gauge is an outstanding device designed specifically for industrial corrosive level monitoring. Its non-contact measurement principle utilizes ultrasonic waves, which are emitted and then bounce back upon hitting the liquid surface. This eliminates the risk of direct contact with corrosive substances, ensuring the longevity and reliability of the gauge. With an IP68 rating, it is highly resistant to dust and can be submerged in water or withstand harsh, wet industrial environments without damage. The two-wire design simplifies installation, reducing wiring complexity and costs. It is capable of accurately measuring a wide range of levels, providing crucial real-time data for industries dealing with corrosive liquids such as chemical plants, where precise level control is essential for safe and efficient operations, preventing overflows, leaks, and maintaining optimal production processes.

Parameter
Parameter Compact type Split type
Range 5m,10m,15m,20m,30m,40m,50m,60m 5m,10m,15m,20m,30m,40m,50m,60m
Accuracy 0.5%~1%
Resolution 3mm or 0.1%(The larger one is effective)
Display English LCD English LCD
Analog Output

4wire 4~20mA/510Ω load

2wire 4~20mA/250Ω load

4~20mA/510Ω load
Relay Output 2 way AC 250V/5A or DC 30V/5A, programmable(optional) 2 or 4 way AC 250V/ (NO:10A,NC:6A) or DC 24V/ 10A, programmable (optional)
Power Supply

24VDC (default)

220V AC+15%@50Hz

12VDC

Battery

24VDC 120mA (default)

220V AC+15%@50Hz

12VDC

Battery

Environment Temperature

Display instrument-20~+60℃,

transducer-20~+80℃

Display instrument -20~+60℃,

transducer-20~+80℃

Communication RS485,RS232 (optional)
Protocol Modbus-RTU
Protection Display instrument IP66,transducer IP68
Transducer Cable no

Default 10m

Max. 100m can be ordered (when without electromagnetic interference)

Transducer Installation According to range and transducer According to range and transducer
Power Consumption

The specific power of split-type is as follows:

With only mA output, it is 1.5W/24V (standard);

With only RS485 output, it is 0.9W/24V (optional);

With both RS485 and mA output, it is 1.6W/24V (optional);

Add two relays, the power is increased by 0.8W/24V (optional);

The power of 220VAC split-type is 5W/220VAC.



The specific power of compact four-wire instrument is as follows:

With only mA output, it is 1W/24V (standard);

With only RS485 output, it is 0.6W/24V (optional);

With both RS485 and mA output, it is 1.1W/24V (optional);

Add two relays, the power is increased by 1W/24V (optional);

The power of 220VAC compact four-wire instrument is 5W/220VAC.



24V compact two-wire instrument output power and instrument output current value are related: (4mA/0.096W-20mA/0.48W)

nstallation dimensions:

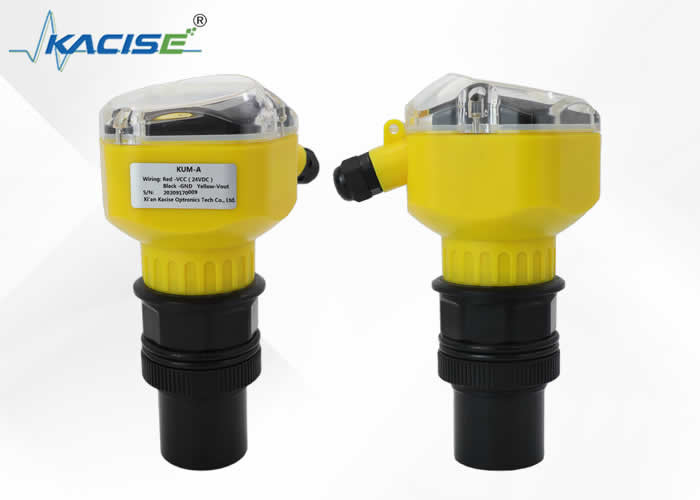

KUM-A/KUM-C Compact enhanced ultrasonic level sensor:

Non-contact IP68 Two-wire Ultrasonic Level Gauge For Industrial Corrosive Level Monitoring 1

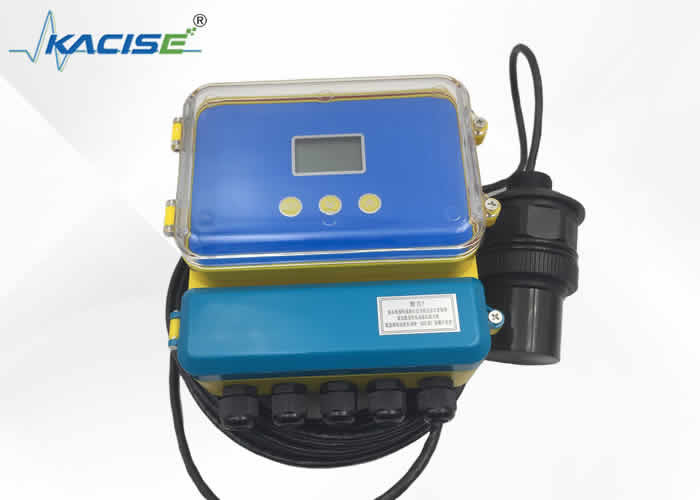

KUM-B Split type standard ultrasonic level sensor:

Non-contact IP68 Two-wire Ultrasonic Level Gauge For Industrial Corrosive Level Monitoring 2
KUM-E compact explosion-proof ultrasonic level sensor:

Non-contact IP68 Two-wire Ultrasonic Level Gauge For Industrial Corrosive Level Monitoring 3



Apply
Non-contact IP68 Two-wire Ultrasonic Level Gauge For Industrial Corrosive Level Monitoring 4
Production Flow

Non-contact IP68 Two-wire Ultrasonic Level Gauge For Industrial Corrosive Level Monitoring 5

Product packaging


Non-contact IP68 Two-wire Ultrasonic Level Gauge For Industrial Corrosive Level Monitoring 6

Company Profile


Non-contact IP68 Two-wire Ultrasonic Level Gauge For Industrial Corrosive Level Monitoring 7
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
Our Services
* Your inquiry will be replied in 24hours.
* Well-trained and experienced staffs to answer all your enquires in fluent English.
* OEM&ODM, we can help you to design and your request will be put into product.
* Distributorship are offered for your unique design and some our current models.
* Protection of your sales area, ideas of design and all your private information.
* Discounts are offered based on order quantities.
