Name: 5cm 40cm Measuring Range Anti Corrosion Capacitance Level Gauge For Harsh Environments
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSLV-605
Price: 1,000.00 USD
Availability: InStock

Home > products > Fluid Level Meter >

5cm 40cm Measuring Range Anti Corrosion Capacitance Level Gauge For Harsh Environments

Harsh Environments Capacitance Level Gauge

40cm Capacitance Level Gauge

Anti corrosion Capacitance Level Gauge

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KSLV-605

Request A Quote

5cm 40cm Measuring Range Anti Corrosion Capacitance Level Gauge For Harsh Environments

Product Details

Measurement Range Detection Range:

100mm - 3000mm

Pressure Bearing:

0 - 1Mpa

Power Supply:

5 - 30VDC

Operating Current:

<5mA - 30mA

Accuracy:

<0.5%FS / <1%FS

Explosion-proof Grade:

ExibIICT6

Protection Level:

IP65 / Customizable IP68

Highlight:

Harsh Environments Capacitance Level Gauge

40cm Capacitance Level Gauge

Anti corrosion Capacitance Level Gauge

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Corrosion Resistant Capacitive Level Transmitter With NPN/PNP Output Is Used For Level Monitoring In Laboratory Reactors

Get Best Price

Video

KLD800 Series 80G Radar Level Gauge PTFE Antenna Size Small Blind Spot

Get Best Price

Video

0.1m~3m Capacitive Water Level Sensor High Performance And Wide Range

Get Best Price

1m Liquid Tank Level Sensor IP67 Fluid Level Meter RS485 Output

Get Best Price

86--17719566736

Contact Now

Product Description

5cm 40cm Measuring Range Anti Corrosion Capacitance Level Gauge For Harsh Environments

Product Specifications

Attribute	Value
Measurement range detection range	100mm - 3000mm
Pressure bearing	0 - 1Mpa
Power supply	5 - 30VDC
Operating current	<5mA - 30mA
Accuracy	<0.5%FS / <1%FS
Explosion-proof grade	ExibIICT6
Protection level	IP65 / Customizable IP68

Product Description

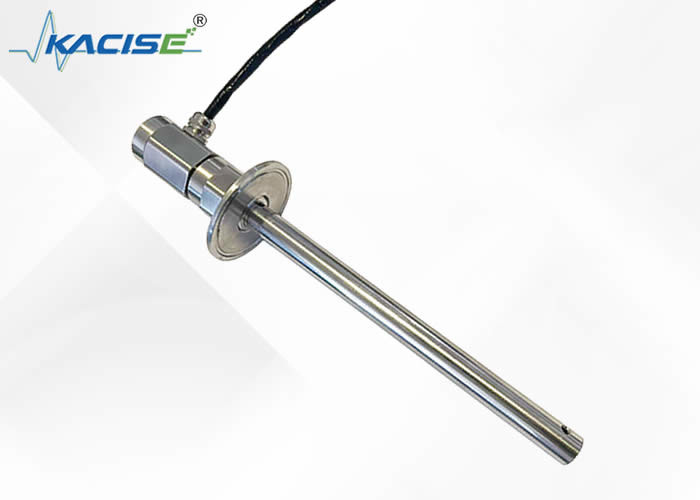

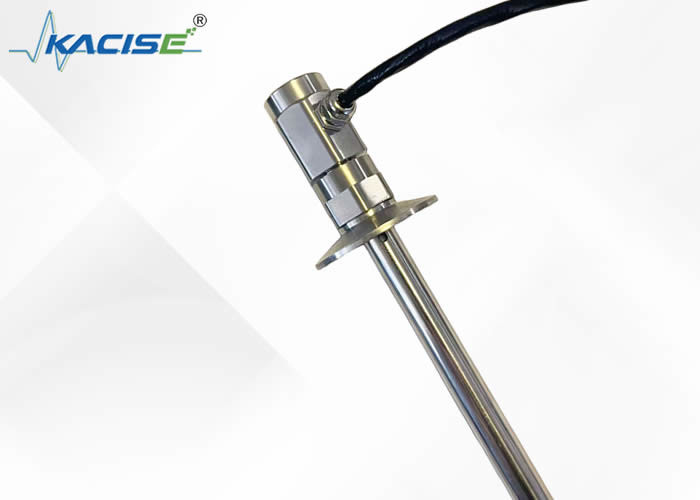

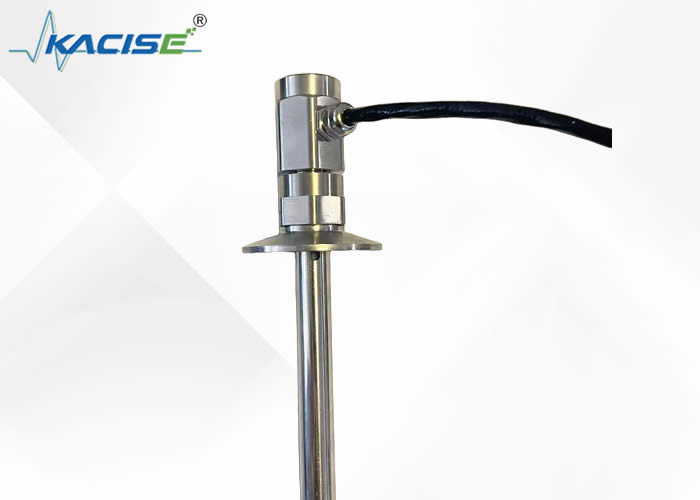

KSLV605 Food grade capacitor level switch

The KSLV605 Food grade capacitor level switch is designed to meet stringent requirements of the food industry. It offers flexible measuring ranges (standard: 10cm-300cm; compact: 5cm-40cm) with precision accuracies of ±0.5%, ±1%, and ±2% in the compact model. The device features a capacitance detection range of 10PF to 500PF for sensitive and accurate sensing.

Key Features

MODBUS RTU protocol for easy integration
Multiple output types available (RS485, 4-20mA, 0-10V, switching values)
Customizable outputs, protection levels, anti-corrosion processes, and temperature resistance
No moving parts for reliable, stable operation
Measures any liquid medium or fine solid particles
Capable of measuring fluctuating liquid levels
Optional display module for real-time level monitoring
Available with temperature-measuring function
Multiple models for different environments

Technical Parameters

Measurement range: 100mm - 3000mm

Pressure bearing: 0 - 1Mpa

Power supply: 5 - 30VDC

Operating current: <5mA - 30mA

Accuracy: <0.5%FS / <1%FS

Explosion-proof grade: ExibIICT6

Communication interface: RS485 / UART TTL

Analog output type: 4 - 20mA / 0 - 10V

Switch output type: Relay / NPN / PNP

Probe temperature resistance: -60℃ - 200℃

Ambient temperature: -40℃ - 85℃

Protection level: IP65 / Customizable IP68

Level gauge material: 304 stainless steel / 316 stainless steel / PTFE

Temperature drift: <0.01%FS/°C

Long-term stability: <0.1%FS/year

Product Drawing
