RS485/232 Output Ultrasonic Water Depth Meter

232 Ultrasonic Water Depth Meter

RS485/232 Ultrasonic Water Depth Meter

RS485 Ultrasonic Water Depth Meter

Place of Origin:

china

Brand Name:

KACISE

Certification:

Model Number:

KWD110

Request A Quote

RS485/232 Output Ultrasonic Water Depth Meter

Product Details

Measurement Accuracy:

1%~3%

Resolution:

5mm Or 0.5% (the Larger One)

Display:

Chinese LCD Display

Analog Output:

4~20mA/750Ω Load

Relay Output:

Single Channel Is 2 Groups Of AC 250V/8A Or DC 30V/5A, State Programmable

Communication:

Optional 485, 232 Communication (manufacturer Protocol)

Ambient Temperature:

Display Instrument -20~+60℃, Probe -20~+80℃

Highlight:

232 Ultrasonic Water Depth Meter

RS485/232 Ultrasonic Water Depth Meter

RS485 Ultrasonic Water Depth Meter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

4-20ma Output Laser Transmitter Pyrometer Non Contact Infrared Temperature Sensor With Laser Targeting

Get Best Price

KWG200 Gas Monitor,DC3.6V lithium battery，detect methane

Get Best Price

LSBM-100 Surveying and Mapping Laser Ranging Module

Get Best Price

Externally-mounted Liquid Level Gauge Digital Display For Monitoring Industrial Spherical Tanks Liquid Level

Get Best Price

86--17719566736

Contact Now

Product Description

RS485/232 Output Ultrasonic Water Depth Meter

Product Introduction

The KACISE RS485/232 Output Ultrasonic Water Depth Meter is a high-performance device for measuring water depth and mud levels. It supports customizable ranges up to 70 meters and offers an accuracy of 1%-3%. The device features optional RS485/232 communication for easy integration with control systems. Its split-type design, Chinese LCD display, and IP68-rated probe ensure reliable operation in demanding environments.

Technical Parameters

Function	Split type
Range	The conventional measuring range is 5 meters, 10 meters, 15 meters, 20 meters, and can be customized to 30 meters, 40 meters, 50 meters, 60 meters, 70 meters and further special measuring ranges
Measurement Accuracy	1%~3%
Resolution	5mm or 0.5% (the larger one)
Display	Chinese LCD display
Analog Output	4~20mA/750Ω load
Relay Output	Single channel is 2 groups of AC 250V/8A or DC 30V/5A, state programmable
Power Supply	Standard 220V AC+15% 50Hz Optional 24VDC 120mA Customized 12VDC or battery power supply
Ambient Temperature	Display instrument -20~+60℃, probe -20~+80℃
Communication	Optional 485, 232 communication (manufacturer protocol)
Protection Level	Display instrument IP65, probe IP68
Probe Cable	Up to 100 meters, standard 10 meters
Probe Installation	Depending on the selection of measuring range and probe

Installation Dimensions

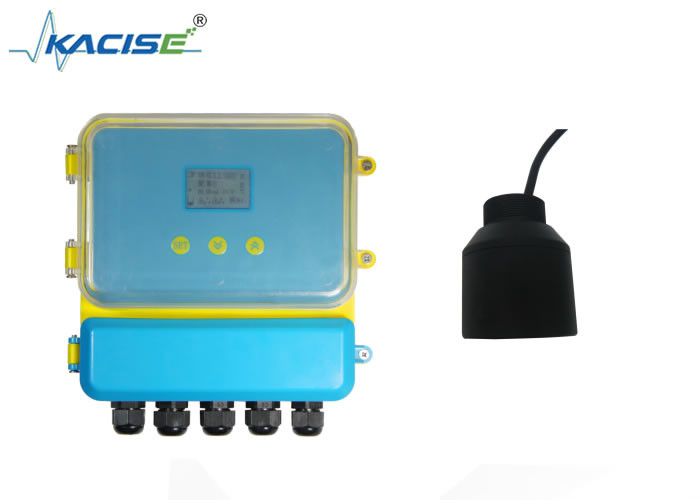

(1) Appearance

RS485/232 Output Ultrasonic Water Depth Meter 0

(2) Display instrument Dimension

RS485/232 Output Ultrasonic Water Depth Meter 1

(3)Probe Dimensions

RS485/232 Output Ultrasonic Water Depth Meter 2
