Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.742.855.2mm

Name: Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-USM-441
Price: 72.00 USD
Availability: InStock

Household Ultrasonic Gas Meter

3.6VDC Ultrasonic Gas Meter

Compact Design Ultrasonic Gas Meter

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-USM-441

Request A Quote

Product Details

Interface Mode:

URAT_TTL

Dimensions (mm):

128.7*42.8*55.2

Power Supply Mode:

2.7 - 3.6VDC

Accuracy Class:

Class 1.5

Working Pressure:

0 - 20kPa

Working Temperature:

-10 - 40°C

Highlight:

Household Ultrasonic Gas Meter

3.6VDC Ultrasonic Gas Meter

Compact Design Ultrasonic Gas Meter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.742.855.2mm

Get Best Price

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price

86--17719566736

Contact Now

Product Description

Core Module of Household Ultrasonic Gas Meter KGD - USM - 441

Product Introduction

The core module of household ultrasonic gas meter KGD - USM - 441 adopts the ultrasonic time - difference method and a unique new structure to measure the flow velocity of the medium, and is suitable for the flow measurement of natural gas.

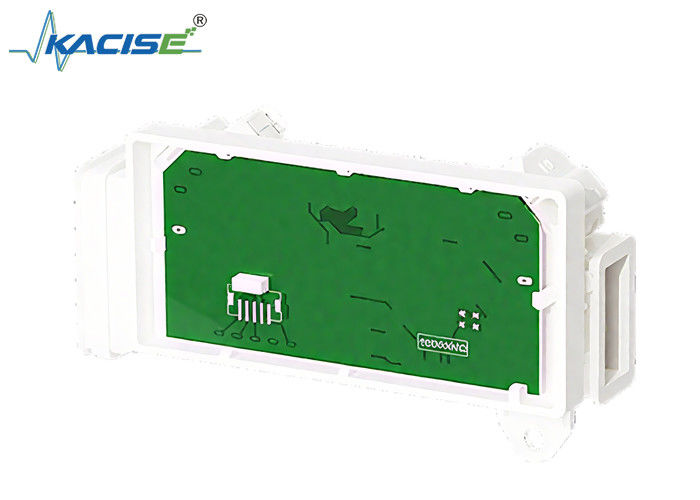

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm 0

Product Features

Small in size with stable metering performance
High sensitivity
High safety level
Long service life and maintenance - free
Strong expandability

Technical Parameters

Item	Details
Measuring Range (mATRS/h)	KGD-USM-441-G1.6M: 0.016 - 2.5
	KGD-USM-441-G2.5M: 0.025 - 4
	KGD-USM-441-G4M: 0.04 - 6
Interface Mode	URAT_TTL
Dimensions (mm)	128.742.855.2
Power Supply Mode	2.7 - 3.6VDC
Accuracy Class	Class 1.5
Measurement Error	Minimum flow ≤ Q < Demarcation flow: ±3%
Measurement Error	Demarcation flow ≤ Q ≤ Maximum flow: ±1.5%
Working Pressure	0 - 20kPa
Working Temperature	-10 - 40°C
Storage Temperature	-20 - 60°C
Explosion - Proof Rating	ExibⅡBT4Gb
