Ultrasonic Oxygen Sensor KGD GAS 422 Precise Ultrasonic Measurement Principle

Ultrasonic Oxygen Sensor KGD GAS 422 Precise Ultrasonic Measurement Principle

KGD GAS 422 Oxygen Sensor

Ultrasonic Measurement Oxygen Sensor

Precise Ultrasonic Oxygen Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KGD-GAS-422

Contact Us
Request A Quote
Ultrasonic Oxygen Sensor KGD GAS 422 Precise Ultrasonic Measurement Principle
Product Details
Detection Principle:
Ultrasonic Measurement Principle
Detection Range:
O₂ Concentration: 0 - 100%, Flow Rate: TBD
Detection Accuracy:
O₂ Concentration: ±2.0%FS@(5 - 50)°C, Flow Rate: TBD
Resolution:
O₂ Concentration: 0.1%, Flow Rate: TBD
Response Time:
O₂ Concentration: ≤1.5s
Operating Conditions:
5 - 50°C, 0 - 95%RH (non - Condensing)
Highlight:

KGD GAS 422 Oxygen Sensor

,

Ultrasonic Measurement Oxygen Sensor

,

Precise Ultrasonic Oxygen Sensor

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65 online

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price
Good price Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm online

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm

Get Best Price
Good price 10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement online

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price
Good price Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323 online

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

Ultrasonic Oxygen Sensor KGD - GAS - 422

Product Introduction

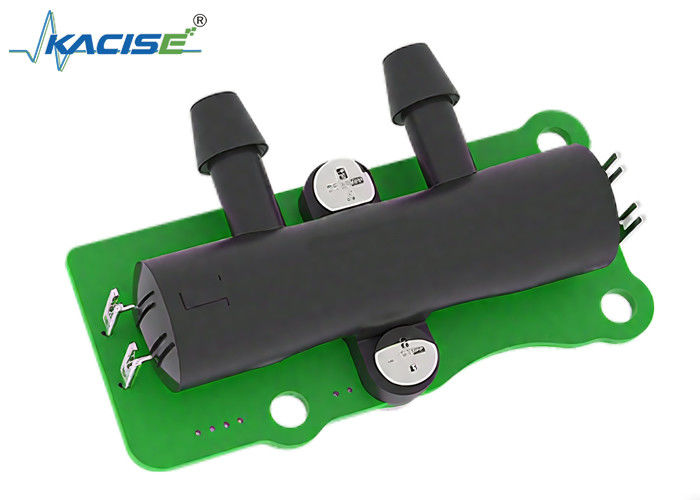

The Ultrasonic Oxygen Sensor KGD - GAS - 422 is an economical and practical sensor used to measure the gas flow rate in binary gases. It features a small size, fast response speed, high accuracy, and zero offset. Based on the mature Gasboard - 7500H ultrasonic oxygen sensor, it is optimized and upgraded to replace and expand the application of the original series in more scenarios.

Ultrasonic Oxygen Sensor KGD GAS 422 Precise Ultrasonic Measurement Principle 0

Product Features

  • Can simultaneously measure oxygen concentration and flow rate
  • Full - range temperature compensation
  • Small size, fast response, stable measurement, high accuracy
  • Meets the requirements of special occasions such as medical use
  • Long service life, maintenance - free
  • Supports serial port output of accurate measurement values

Technical Parameters

Item Details
Detection Principle Ultrasonic measurement principle
Detection Range O₂ concentration: 0 - 100%, Flow rate: TBD
Detection Accuracy O₂ concentration: ±2.0%FS@(5 - 50)°C, Flow rate: TBD
Resolution O₂ concentration: 0.1%, Flow rate: TBD
Response Time O₂ concentration: ≤1.5s
Operating Conditions 5 - 50°C, 0 - 95%RH (non - condensing)
Storage Conditions -20 - 60°C, 0 - 95%RH (non - condensing)
Operating Voltage DC 4.75 - 5.25V, ripple ≤ 50mV
Average Operating Current ≤35mA
Communication Interface UART_TTL(3.3V)
Product Dimensions W50*H22*D31mm
Product Lifetime >5 years
