Name: Battery Thermal Runaway Monitoring Sensor KGD - ATRS - 317
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-ATRS-317
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Battery Thermal Runaway Monitoring Sensor KGD - ATRS - 317

KGD - ATRS - 317 Battery Thermal Runaway Monitoring Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-ATRS-317

Request A Quote

Product Details

Measurement Principle:

NDIR Dual - Channel + MOX + Light Scattering

Measured Components:

PM2.5 + CO2 + CO + P

Communication Method:

CAN

Measuring Range:

500k；CO2: 0~10000ppm；CO: 0~1000ppm (Can Display Up To 10000ppm)；PM: 0~5mg/m³；Air Pressure P: 80kPa~120kPa

Response Time:

T90≤15s

Resolution:

CO2: 1ppm；PM: 1μg/m³；Air Pressure: 0.1kPa

Highlight:

KGD - ATRS - 317 Battery Thermal Runaway Monitoring Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.742.855.2mm

Get Best Price

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price

86--17719566736

Contact Now

Product Description

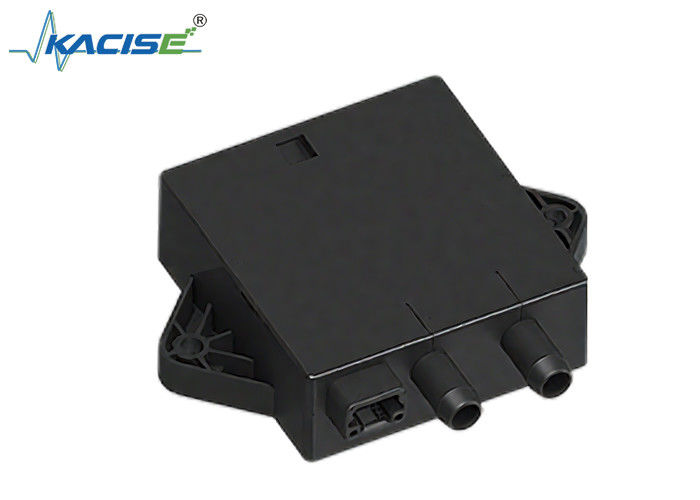

Battery Thermal Runaway Monitoring Sensor KGD - ATRS - 317

Product Introduction

The KGD - ATRS - 317 battery thermal runaway monitoring sensor can effectively monitor the concentration of CO₂, CO, particulate matter and pressure indicators released before the triggering of battery thermal runaway, and transmit the measurement signals to BMS through CAN or LIN communication (customizable). It has significant characteristics such as accurate measurement, fast response time, less cross - interference, low power consumption, long service life and high reliability.

Battery Thermal Runaway Monitoring Sensor KGD - ATRS - 317 0

Product Features

Ultra - low power consumption
No gas cross - interference, preventing false alarms
High precision and fast response time
Vehicle - grade design, capable of adapting to harsh vehicle environments

Technical Parameters

Items	Details
Measurement Principle	NDIR Dual - channel + MOX + Light Scattering
Measured Components	PM2.5 + CO2 + CO + P
Communication Method	CAN
Measuring Range	500k；CO2: 0~10000ppm；CO: 0~1000ppm (Can display up to 10000ppm)；PM: 0~5mg/mATRS；Air Pressure P: 80kPa~120kPa
Response Time	T90≤15s
Measurement Accuracy	CO2: ±200ppm or ±20% of the reading
	0~5000ppm & -20 °C~60 °C
	CO: ±40ppm or ±30% of the reading, take the larger value
	PM: ≤100ug/mATRS: ±15ug/mATRS; >100ug/mATRS: ±15% reading
	-40°C~70°C
	Pressure P: ±1kPa
