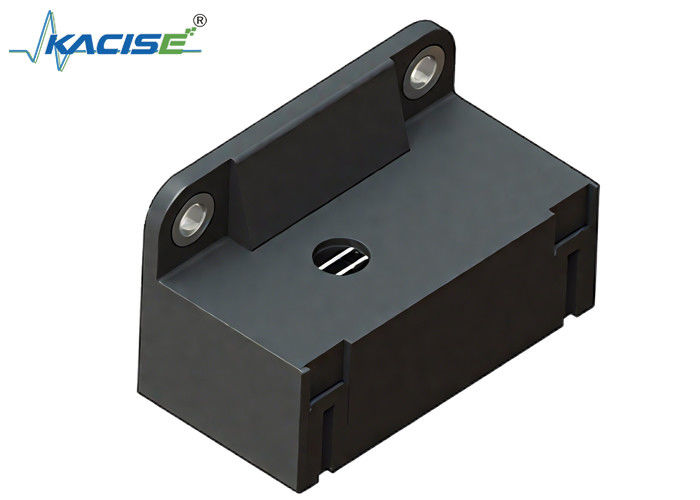

Name: KGD ATRS 314 Smoke Sensor For Precise Battery Dust Concentration And Temperature Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-ATRS-314
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KGD ATRS 314 Smoke Sensor For Precise Battery Dust Concentration And Temperature Measurement

Temperature Measurement Smoke Sensor

Precise Battery Dust Concentration Smoke Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-ATRS-314

Request A Quote

Product Details

Data Refresh:

≤1s

Output Method:

CAN2.0

Designed Service Life:

10 Years

Operating Conditions:

-40°C - +85°C; 0 - 99%RH (non - Condensing)

Storage Conditions:

-40°C - +95°C; 0 - 99%RH (non - Condensing)

Working Voltage:

60kPa - 120kPa

Highlight:

Temperature Measurement Smoke Sensor

Precise Battery Dust Concentration Smoke Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD MQ 531 Biogas Analyzer Smart Portable Type Bluetooth 4.0 Communication and Electrical Parameters

Get Best Price

Flow Guiding Type Gas Sampling Method Direct Insertion Oxygen Analyzer KGD-MQ-512 50mm Pipe Diameter For Industrial

Get Best Price

Mainstream End Tidal Carbon Dioxide Sensor KGD - 412 for Measuring End - Tidal CO₂ Concentration

Get Best Price

86--17719566736

Contact Now

Product Description

KGD ATRS 314 Smoke Sensor For Precise Battery Dust Concentration And Temperature Measurement

Product Attributes

Attribute	Value
Data Refresh	≤1s
Output Method	CAN2.0
Designed Service Life	10 years
Operating Conditions	-40°C - +85°C; 0 - 99%RH (non-condensing)
Storage Conditions	-40°C - +95°C; 0 - 99%RH (non-condensing)
Working Voltage	60kPa - 120kPa

Product Description

Smoke Sensor KGD - ATRS - 314 for Measuring Battery Dust Concentration and Temperature

Product Introduction

The KGD - ATRS - 314 smoke sensor module can effectively monitor indicators such as dust concentration and temperature released before the triggering of battery thermal runaway, and transmit the measurement signals to the BMS through CAN communication. This solution features accurate measurement, fast response time, low cross-interference, low power consumption, long service life and high reliability.

Product Features

The module adopts a vehicle-grade mature circuit design, enabling it to adapt to harsh in-vehicle environments.
CAN2.0B real-time communication, with a protection level up to IP40.
For PM (particulate matter) measurement, it uses an infrared light scattering technology with independent intellectual property rights. The measuring range can reach 10000ug/m³, and the measurement accuracy is as high as 15%, enabling accurate and fast real-time monitoring. It has a low-power mode and a deep sleep mode, realizing multi-working-mode measurement of the sensor.

Technical Parameters

Items	Details
Detection Principle	Particulate matter: Infrared scattering；Temperature: NTC thermistor
Detection Types	Particulate matter (PM), temperature (T)
Detection Range	PM: 1 - 10000ug/mATRS T: -40°C - 85°C
Resolution	PM: 1ug/mATRS T: 0.1°C
Detection Accuracy	PM: ±15ug/mATRS for ≤100ug/mATRS, ±15% of the reading for >100ug/mATRS (TSI8530 standard source, 8mg cigarette, smoking rate 1L/min) Temperature T: ±2°C
Data Refresh	≤1s
Output Method	CAN2.0
Designed Service Life	10 years
Operating Conditions	-40°C - +85°C; 0 - 99%RH (non-condensing)
Storage Conditions	-40°C - +95°C; 0 - 99%RH (non-condensing)
Working Voltage	60kPa - 120kPa
Supply Voltage	6 - 16VDC, standard voltage +12VDC
Average Working Current	Normal working mode: ≤30mA, @+12VDC (sensor continuous working) Low-power mode: ≤500uA, @+12VDC (sensor intermittent working, detection once every 12.2s) Deep sleep mode: ≤50uA, @+12VDC (sensor enters deep sleep, stops working, needs external signal to wake up and trigger)
Quiescent Current	≤100uA (deep sleep (stop) mode)
