H₂ Detection Thermal Conductivity Sensor KGD ATRS 313 with Wide Detection Range and High Sensitivity

H₂ Detection Thermal Conductivity Sensor KGD ATRS 313 with Wide Detection Range and High Sensitivity

H₂ Detection Thermal Conductivity Sensor

High Sensitivity Thermal Conductivity Sensor

Wide Detection Range Thermal Conductivity Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KGD-ATRS-313

Contact Us
Request A Quote
H₂ Detection Thermal Conductivity Sensor KGD ATRS 313 with Wide Detection Range and High Sensitivity
Product Details
Detection Principle:
Thermal Conductivity Technology (TC)
Detection Type:
H₂
Detection Range:
0 - 4%vol
Detection Accuracy:
±(0.1%vol + 10% Of The Reading)
Data Refresh:
≤1s
Response Time:
T80 ≤ 20s
Highlight:

H₂ Detection Thermal Conductivity Sensor

,

High Sensitivity Thermal Conductivity Sensor

,

Wide Detection Range Thermal Conductivity Sensor

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65 online

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price
Good price Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm online

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm

Get Best Price
Good price 10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement online

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price
Good price Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323 online

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description
Thermal Conductivity Hydrogen Sensor KGD - ATRS - 313
Product Introduction
The KGD - ATRS - 313 thermal conductivity hydrogen sensor is a hydrogen sensor based on thermal conductivity (TC) technology. It uses the method of gas thermal conductivity measurement to achieve early and rapid warning for the thermal runaway of automotive power batteries, lithium - battery energy storage, and hydrogen energy applications, thereby improving safety. Meanwhile, it can effectively monitor hydrogen leakage and transmit the measurement signals to the main control system through CAN communication. This solution features accurate measurement, fast response time, wide measuring range, low power consumption, and long service life.

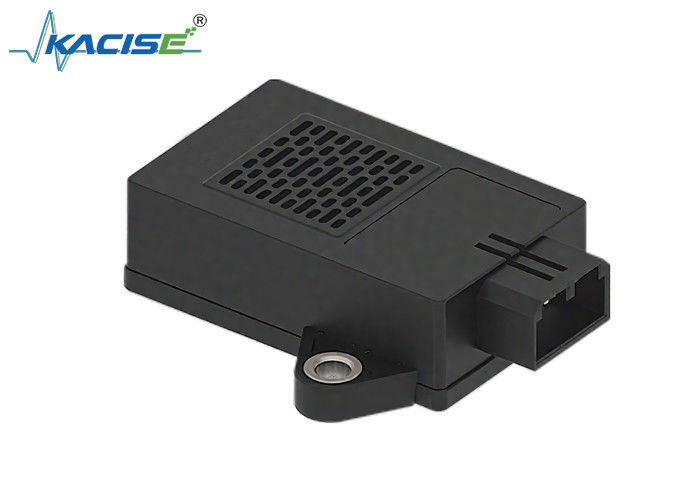

H₂ Detection Thermal Conductivity Sensor KGD ATRS 313 with Wide Detection Range and High Sensitivity 0
Product Features
  • For H₂ measurement, thermal conductivity technology (TC) is adopted, with an accuracy of ±(0.1%vol + 10% of the reading) within the measuring range of 0 - 4%vol.
  • Fast response time with T80 ≤ 2s, and a service life of up to 15 years.
  • The sensor adopts a vehicle - grade mature circuit design, enabling it to adapt to harsh in - vehicle and energy - storage environments.
  • CAN real - time communication, and the protection level meets the requirements of IP54.
Technical Parameters
Items Details
Detection Principle Thermal Conductivity Technology (TC)
Detection Type H₂
Detection Range 0 - 4%vol
Detection Accuracy ±(0.1%vol + 10% of the reading)
Data Refresh ≤1s
Response Time T80 ≤ 20s
Output Method CAN
Designed Service Life >15 years
Operating Conditions -40°C - +85°C; 0 - 99%RH (non - condensing)
Storage Conditions -40°C - +95°C; 0 - 99%RH (non - condensing)
Operating Pressure 80kPa - 120kPa
Protection Level IP54
Supply Voltage 9VDC - 36VDC, rated voltage +12VDC/+24VDC (compatible)
Average Working Current ≤60mA
