Name: Mainstream End Tidal Carbon Dioxide Sensor KGD - 412 for Measuring End - Tidal CO₂ Concentration
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-412
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Mainstream End Tidal Carbon Dioxide Sensor KGD - 412 for Measuring End - Tidal CO₂ Concentration

Mainstream End Tidal Carbon Dioxide Sensor

Carbon Dioxide Sensor KGD - 412

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-412

Request A Quote

Product Details

Detection Principle:

Non - Dispersive Infrared Technology (NDIR)

Data Output:

CO₂ Concentration (mmHg), End - Tidal CO₂, Inhaled CO₂, Respiratory Rate

Detection Range:

0 - 150mmHg

Resolution:

0.1mmHg

Input Voltage:

5.00V (±5%)

Average Current:

<120mA

Highlight:

Mainstream End Tidal Carbon Dioxide Sensor

Carbon Dioxide Sensor KGD - 412

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.742.855.2mm

Get Best Price

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price

86--17719566736

Contact Now

Product Description

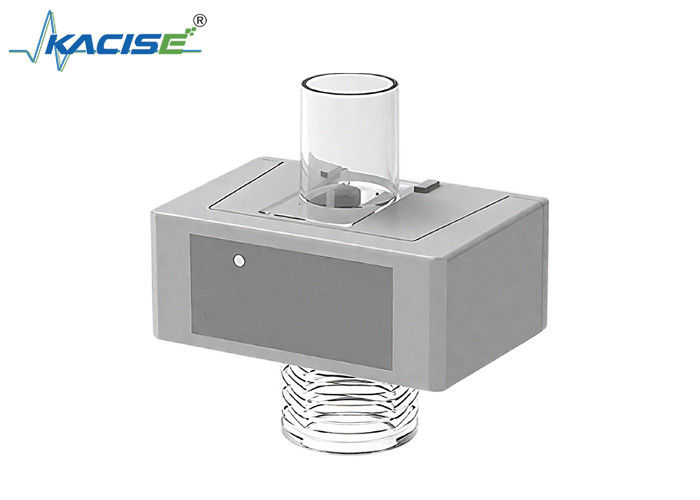

Mainstream End - Tidal Carbon Dioxide Sensor KGD - 412 for Measuring End - Tidal CO₂ Concentration

Product Introduction

The KACISE end - tidal ETCO₂ sensor KGD - 412 is a mainstream ETCO₂ sensor module designed based on the non - dispersive infrared detection principle, used for measuring the end - tidal CO₂ concentration. The KGD - 412 can be applied to monitors, medical ventilators, and anesthesia machines. It has the advantages of accurate and reliable readings, perfect waveforms, compact appearance, and flexible installation.

Product Features

Independent NDIR sensor technology
100Hz high - frequency sampling for fast response
Adopts blackbody light source, with long service life and good stability
Interface and communication protocol that can match mainstream monitors in the market
Meets the requirements of standards such as EN IEC 55014 - 1:2021 and EN IEC 61000 - 3 - 2:2019

Technical Parameters

Items	Details
Detection Principle	Non - Dispersive Infrared Technology (NDIR)
Data Output	CO₂ concentration (mmHg), end - tidal CO₂, inhaled CO₂, respiratory rate
Detection Range	0 - 150mmHg
Resolution	0.1mmHg
Detection Accuracy	0 - 40mmHg: ±2mmHg
	41 - 70mmHg: True value ±5%
	71 - 100mmHg: True value ±8%
	100 - 150mmHg: True value ±10%
Respiratory Rate Range	0 - 150BPM
Respiratory Rate Accuracy	±1 breath
Stability	Short - term drift: not exceeding 0.8mmHg (4H)
Stability	Long - term drift: maintaining accuracy specifications within 120H
Input Voltage	5.00V (±5%)
Average Current	<120mA
Peak Current	<250mA
Initialization Time	Display within 15s, full specification within 2min (25°C)
Compensation	Air pressure: 400 mmHg - 850 mmHg
Working Temperature and Humidity	Operation: 0°C - 45°C, 10 - 90% RH, non - condensing
Working Temperature and Humidity	Storage: -40°C - 70°C, < 90% RH, non - condensing
Data Communication	RS232
Serial Port	19200 - N - 8 - 1
Dimensions	22 mm * 23 mm * 36mm
