Particulate Matter Sensor KGD - 326 for Measuring Diesel Particles

Particulate Matter Sensor KGD - 326 for Measuring Diesel Particles

Measuring Diesel Particles Particulate Matter Sensor

Diesel Particles Particulate Matter Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KGD-326

Contact Us
Request A Quote
Particulate Matter Sensor KGD - 326 for Measuring Diesel Particles
Product Details
Measurement Range:
0 < PM Concentration < 25mg/m³
Accuracy:
±1.5mg/m (Range < 10mg/m³), ±15% (Range > 10mg/m³)
Response Time:
T10 - 90 < 20s
Maximum Gas Temperature:
Continuous Heating To 850°C Peak Temperature: Up To 950°C, Lasting 5x60s. During Sensor Operation < 400°C
Ignition Time:
<750s At A Soot Concentration Of 3mg/m³, <300s At A Soot Concentration Of 8mg/m³
Highlight:

Measuring Diesel Particles Particulate Matter Sensor

,

Diesel Particles Particulate Matter Sensor

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65 online

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price
Good price Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm online

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm

Get Best Price
Good price 10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement online

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price
Good price Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323 online

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

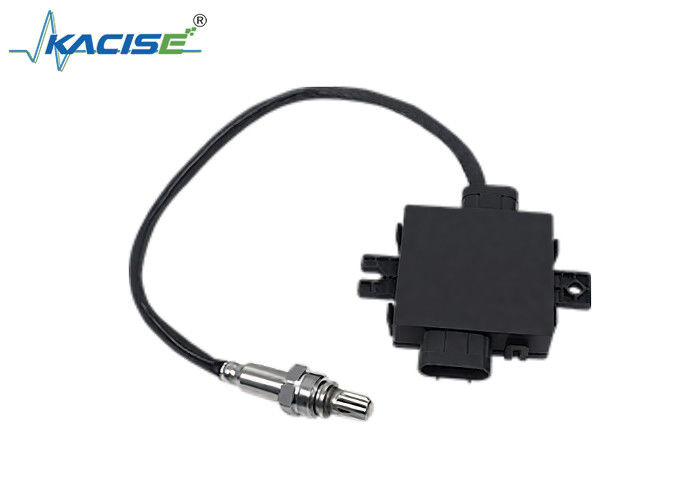

Particulate Matter Sensor KGD - 326 for Measuring Diesel Particles

Product Introduction

The particulate matter sensor KGD - 326 is used to measure the cumulative particulate matter (soot) mass in the exhaust gas at the rear end of a Diesel Particulate Filter (DPF) to determine the efficiency of the DPF. The particulate matter sensor is located on the pipeline of the Selective Catalytic Reduction (SCR) catalyst and consists of a probe and an electronic control module. This module communicates and shares information with the Powertrain Control Module (PCM) via the J1939 data link. The probe contains three internal components: a heater, a temperature sensor, and a set of high - resistance particulate matter measuring electrodes.

Particulate Matter Sensor KGD - 326 for Measuring Diesel Particles 0

Product Features

  • Compact sensor design
  • Integrated structure of sensing element and heater significantly improves the light - off efficiency
  • Equipped with Resistance Temperature Detector (RTD) element
  • Allows closed - loop heater control for accurate sensor regeneration
  • Reliable diagnostic capabilities

Technical Parameters

Items Details
Measurement Range 0 < PM Concentration < 25mg/m³
Accuracy ±1.5mg/m (Range < 10mg/m³), ±15% (Range > 10mg/m³)
Response Time T10 - 90 < 20s
Maximum Gas Temperature Continuous heating to 850°C peak temperature: up to 950°C, lasting 5x60s. During sensor operation < 400°C
Ignition Time <750s at a soot concentration of 3mg/m³, <300s at a soot concentration of 8mg/m³
