Name: M20*1.5 Mounting Thread Nitrogen Oxide Sensor KGD 325 For Diesel Vehicle Emissions Monitoring
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-325
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

M20*1.5 Mounting Thread Nitrogen Oxide Sensor KGD 325 For Diesel Vehicle Emissions Monitoring

KGD 325 Nitrogen Oxide Sensor

M20*1.5 Mounting Thread Nitrogen Oxide Sensor

Mounting Thread Nitrogen Oxide Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-325

Request A Quote

Product Details

Measurement Range:

0 - 2500ppm

Fuel Compatibility:

Gasoline / Diesel / E85

Exhaust Pressure:

≤2.5bar

Maximum Speed (Sensor Probe):

490m/s²

Maximum Acceleration (Electronic Controller):

11Hz - 1000Hz, Random 12.01g

Mounting Thread:

M20*1.5

Highlight:

KGD 325 Nitrogen Oxide Sensor

M20*1.5 Mounting Thread Nitrogen Oxide Sensor

Mounting Thread Nitrogen Oxide Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD - WQ - 518 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System

Get Best Price

Non-Road Machinery / Diesel Vehicle Exhaust Smoke Detection System KGD-WQ-519 with Digital Output and Print Interface

Get Best Price

Ultra-Precision Vehicle Exhaust Analyzer KGD-WQ-521 With CO₂ Measuring Range 16.01-18.0 ×10⁻²

Get Best Price

86--17719566736

Contact Now

Product Description

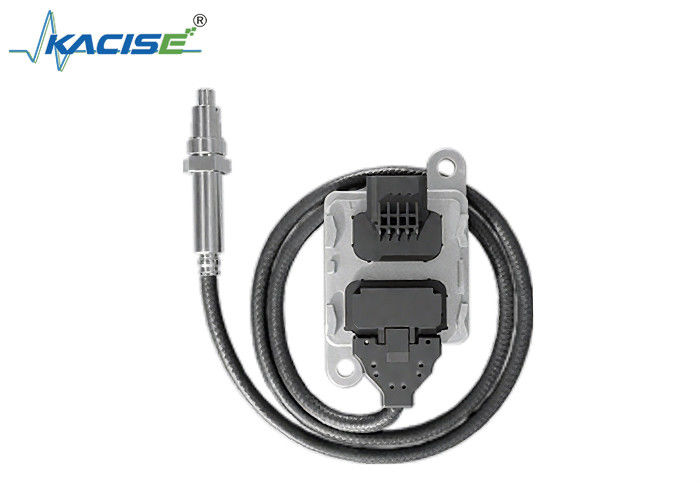

M20*1.5 Mounting Thread Nitrogen Oxide Sensor KGD 325 For Diesel Vehicle Emissions Monitoring

Product Overview

The Nitrogen Oxide Sensor KGD-325 monitors nitrogen oxide levels in diesel vehicle emissions to ensure compliance with environmental regulations. Designed for optimal performance in demanding automotive environments, this sensor helps maintain emission standards while preventing engine malfunctions.

Key Features

High precision measurement with excellent dynamic response and continuous signal output
Versatile compatibility supporting multiple connector types and cable lengths
Durable construction with high environmental tolerance and long service life
Fully-sealed waterproof design for enhanced performance and reliability
Comprehensive coverage of core diesel engine models for passenger and commercial vehicles
Compliance with China National V/VI and Euro V/VI emission standards

Technical Specifications

Attribute	Value
Measurement Range	0 - 2500ppm
Fuel Compatibility	Gasoline / Diesel / e85
Exhaust Pressure	≤2.5bar
Maximum Speed (Sensor Probe)	490m/s²
Maximum Acceleration (Electronic Controller)	11Hz - 1000Hz, random 12.01g
Mounting Thread	M20*1.5
Wrench Size	22mm
Tightening Torque	40 - 60N*m

Application Notes

Diesel engines typically require two nitrogen oxide sensors for optimal emissions monitoring. Common failure modes include sensor carbon deposition, ECU water ingress, and circuit damage, which can trigger engine warning indicators.
