Name: Limiting Current - Type Oxygen Sensor KGD - 323
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-323
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Limiting Current - Type Oxygen Sensor KGD - 323

KGD - 323 Oxygen Sensor

Limiting Current Oxygen Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-323

Request A Quote

Product Details

Heater Resistance:

3.2Ω ± 0.8Ω

Operating Voltage:

6V - 8V

Measurable Air - Fuel Ratio Range:

0 - 2

Ignition Time:

≤15S

IP Rating:

IP67

Highlight:

KGD - 323 Oxygen Sensor

Limiting Current Oxygen Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.742.855.2mm

Get Best Price

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price

86--17719566736

Contact Now

Product Description

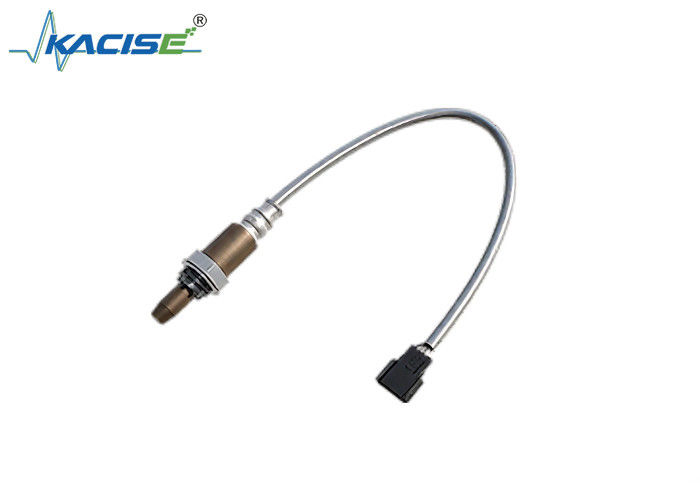

Limiting Current - type Oxygen Sensor KGD - 323

Product Introduction

The limiting current - type oxygen sensor KGD - 323 is a four - wire chip - type wide - range oxygen sensor. Its core component is a chip manufactured by the HTCC (High - Temperature Co - fired Ceramic) process. This product can continuously detect the air - fuel ratio of the mixture in a relatively wide range where λ > 1. Compared with ordinary concentration - difference - type oxygen sensors, such a sensor is suitable for achieving feedback control of the air - fuel ratio when the engine is in a lean - burn condition, resulting in better fuel consumption, better emissions, and better operating performance.

Limiting Current - Type Oxygen Sensor KGD - 323 0

Product Features

New - type sensing element design
Use of four - core wire harness to reduce system cost
Covers multiple series of vehicle models
Stable sensor signal

Technical Parameters

Items	Details
Heater Resistance	3.2Ω ± 0.8Ω
Operating Voltage	6V - 8V
Measurable Air - Fuel Ratio Range	0 - 2
Ignition Time	≤15S
IP Rating	IP67
