Nitrogen Oxide Sensor Chip KGD-321 for Commercial Vehicle Nitrogen Oxide Sensors

Nitrogen Oxide Sensor Chip KGD-321 for Commercial Vehicle Nitrogen Oxide Sensors

Commercial Vehicle Nitrogen Oxide Sensor Chip

KGD-321 Nitrogen Oxide Sensor Chip

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KGD-321

Contact Us
Request A Quote
Nitrogen Oxide Sensor Chip KGD-321 for Commercial Vehicle Nitrogen Oxide Sensors
Product Details
Power Supply Voltage:
10.8V - 32V
Measurement Range:
0 - 21% NOx Measurement Range: 0 - 2500ppm For NO & NO2, 1 < λ < ∞ (without NH3)
Measurement Accuracy:
1 - 100ppm: ±10ppm; 100ppm - 500ppm: ±10%; 500ppm - 1500ppm: ±15%; 1500ppm - 2500ppm: ±30%
Response Time:
NOx: T10 - 99: 399 - 3990ms; O2: T10 - 90: 3550ms
Start - Up Time:
TNOX: 165s
Bending Strength:
≥380MPa
Highlight:

Commercial Vehicle Nitrogen Oxide Sensor Chip

,

KGD-321 Nitrogen Oxide Sensor Chip

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65 online

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price
Good price Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm online

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm

Get Best Price
Good price 10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement online

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price
Good price Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323 online

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

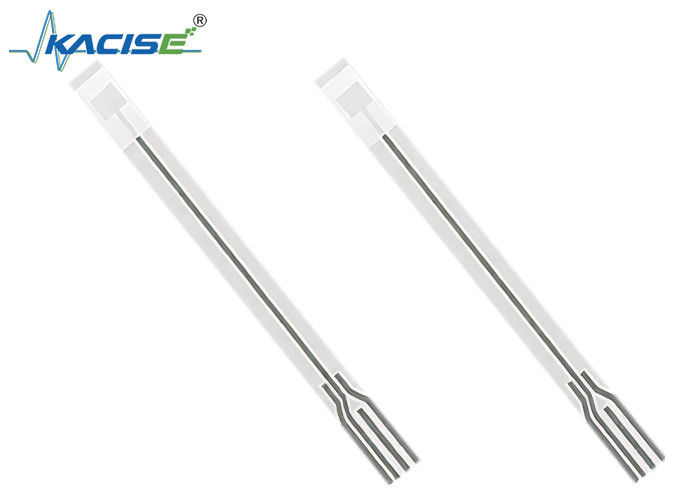

Nitrogen Oxide Sensor Chip KGD-321 for Commercial Vehicle Nitrogen Oxide Sensors

Product Introduction

The high-quality planar chip KGD-321 is manufactured using HTCC (High-Temperature Co-fired Ceramics) technology. The multi-layer sensing element integrated with a heater inside the chip can maintain measurement accuracy after long-term use. The nitrogen oxide sensor chip utilizes electrochemical principles to accurately measure the NOx content in vehicle exhaust by detecting the magnitude of electric current. It is mainly applied to nitrogen oxide sensors for commercial vehicles.

Nitrogen Oxide Sensor Chip KGD-321 for Commercial Vehicle Nitrogen Oxide Sensors 0



Product Features

  • Faster start-up time
  • Excellent anti-aging performance
  • Low heating power
  • Resistance to coating and toxicity
  • Low driving costs
  • Compact structure (high vibration resistance)
  • Reduced dependence on exhaust temperature
  • Longer service life
  • Double-protective tube head to prevent various impacts

Technical Parameters

Items Details
Power supply voltage 10.8V - 32V
Measurement range 0 - 21% NOx measurement range: 0 - 2500ppm for NO & NO2, 1 < λ < ∞ (without NH3)
Measurement accuracy 1 - 100ppm: ±10ppm; 100ppm - 500ppm: ±10%; 500ppm - 1500ppm: ±15%; 1500ppm - 2500ppm: ±30%
Response time NOx: T10 - 99: 399 - 3990ms; O2: T10 - 90: 3550ms
Start - up time TNOX: 165s
Bending strength ≥380MPa
Heater resistance 2.8 (± 0.5)Ω
External dimensions L(67 ± 1) * W(4.25 ± 0.15) * H(1.35 ± 0.15) mm
