Name: KGD MQ 532 Infrared Gas Analyzer Explosion Proof Type For Accurate H2S Measurement NDIR In Hazardous Environments
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-MQ-532
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KGD MQ 532 Infrared Gas Analyzer Explosion Proof Type For Accurate H2S Measurement NDIR In Hazardous Environments

Explosion proof Infrared Gas Analyzer

NDIR Infrared Gas Analyzer

Accurate H2S Measurement Infrared Gas Analyzer

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-MQ-532

Request A Quote

Product Details

Power Supply:

AC220V, 50Hz

Measured Components:

CO, CO2, CH4, C3H8, O2, H2S

Measurement Principle:

NDIR, ECD

Measurement Range:

CO/CO2/CH4/C3H8: (0 - 100%) ; O2: (0 - 25%) ; H2S: (0 - 9999) Ppm

Linear Error:

CO/CO2/CH4/C3H8: ±1%F.S.; O2/H2S: ±2%F.S.

Resolution:

0.01% (For Low - Range, The Resolution Of H2S Can Reach 1ppm)

Highlight:

Explosion proof Infrared Gas Analyzer

NDIR Infrared Gas Analyzer

Accurate H2S Measurement Infrared Gas Analyzer

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD - WQ - 518 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System

Get Best Price

Non-Road Machinery / Diesel Vehicle Exhaust Smoke Detection System KGD-WQ-519 with Digital Output and Print Interface

Get Best Price

Ultra-Precision Vehicle Exhaust Analyzer KGD-WQ-521 With CO₂ Measuring Range 16.01-18.0 ×10⁻²

Get Best Price

86--17719566736

Contact Now

Product Description

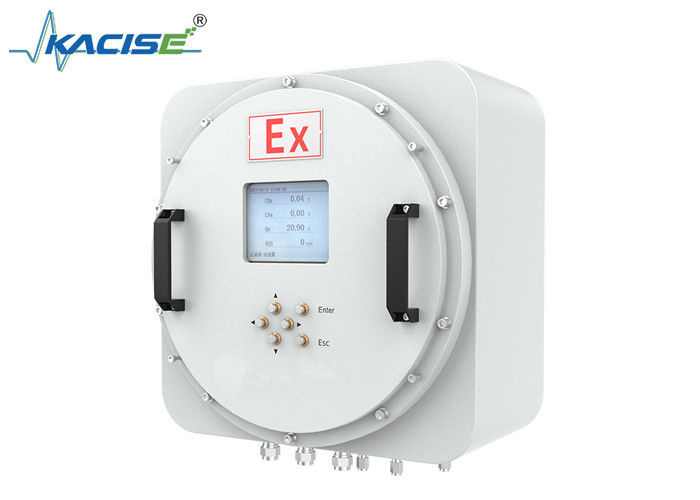

KGD MQ 532 Infrared Gas Analyzer Explosion Proof Type For Accurate H2S Measurement NDIR In Hazardous Environments

Product Overview

The KGD-MQ-532 Infrared Gas Analyzer (Explosion-proof Type) utilizes non-dispersive infrared (NDIR) gas analysis technology with independent intellectual property rights and long-life electrochemical sensing technology. Designed for hazardous environments, it provides simultaneous online measurement of gas volume concentrations including CO, CO2, CH4, C3H8, O2, and H2S.

Key Features

Explosion-proof Design: Flame-proof enclosure withstands internal explosions and prevents external ignition, certified Ex db IIC T6 Gb / Ex tb III C T80°C Db
High Measurement Accuracy: No cross-interference among measured gases with self-diagnosis capability for sensor status monitoring
Stable Performance: Dual-channel sensor design with heat-resistant and corrosion-resistant materials (stainless steel, PTFE)
Automated Operation: Professional pretreatment solution enables real-time monitoring with minimal maintenance
Comprehensive Data Management: Multiple interface options including RS-485/RS-232, 4-20mA, and Ethernet for system integration

Technical Specifications

Parameter	Details
Power Supply	AC220V, 50Hz
Measured Components	CO, CO2, CH4, C3H8, O2, H2S
Measurement Principle	NDIR, ECD
Measurement Range	CO/CO2/CH4/C3H8: (0 - 100%) O2: (0 - 25%) H2S: (0 - 9999) ppm
Linear Error	CO/CO2/CH4/C3H8: ±1%F.S. O2/H2S: ±2%F.S.
Resolution	0.01% (H2S resolution can reach 1ppm for low-range)
Repeatability	≤2%
Response Time	T90＜15s (NDIR)
Optimal Flow Rate	(0.7 - 1.2) L/min
Inlet Gas Pressure	(2 - 50) kPa
Gas Requirements	Dust-free, water-free, oil-free
Functional Configuration	Built-in zero-adjustment air pump, automatic air zero-adjustment, self-diagnosis function

This explosion-proof gas analyzer is ideal for industrial applications requiring precise gas monitoring in hazardous environments, with robust construction and advanced features for reliable, long-term operation.
