Name: KGD-MQ-533 Ultraviolet Hydrogen Sulfide Analyzer High Resolution and Fast Response Time for Accurate Measurements
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-MQ-533
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KGD-MQ-533 Ultraviolet Hydrogen Sulfide Analyzer High Resolution and Fast Response Time for Accurate Measurements

Accurate Measurements Hydrogen Sulfide Analyzer

High Resolution Hydrogen Sulfide Analyzer

Fast Response Time Hydrogen Sulfide Analyzer

Place of Origin:

CHINA

Certification:

Model Number:

KGD-MQ-533

Request A Quote

Product Details

Measured Component:

H2S

Measurement Range:

0 - 25000ppm; Measurement Range Is Selectable

Accuracy:

±2%F.S.

Resolution:

1ppm

Repeatability:

<2%

Response Time:

T90<30s

Highlight:

Accurate Measurements Hydrogen Sulfide Analyzer

High Resolution Hydrogen Sulfide Analyzer

Fast Response Time Hydrogen Sulfide Analyzer

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD - WQ - 518 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System

Get Best Price

Non-Road Machinery / Diesel Vehicle Exhaust Smoke Detection System KGD-WQ-519 with Digital Output and Print Interface

Get Best Price

Ultra-Precision Vehicle Exhaust Analyzer KGD-WQ-521 With CO₂ Measuring Range 16.01-18.0 ×10⁻²

Get Best Price

86--17719566736

Contact Now

Product Description

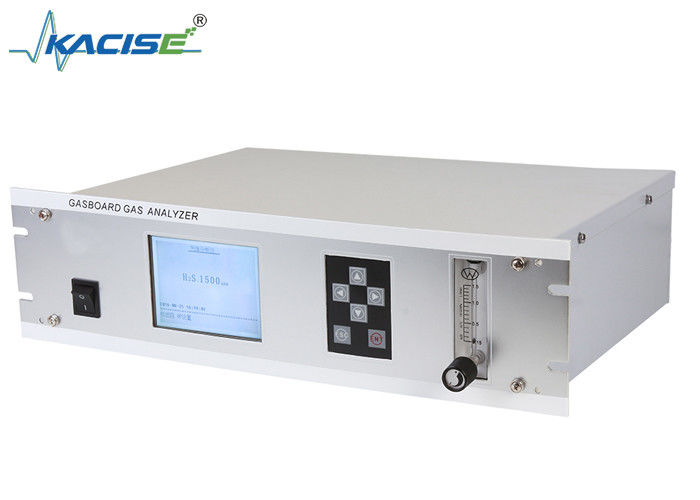

KGD-MQ-533 Ultraviolet Hydrogen Sulfide Analyzer

High resolution and fast response time for accurate measurements of H2S concentrations in industrial environments.

Key Specifications

Attribute	Value
Measured Component	H2S
Measurement Range	0 - 25000ppm (selectable range)
Accuracy	±2%F.S.
Resolution	1ppm
Repeatability	<2%
Response Time	T90<30s

Product Overview

The KGD-MQ-533 is a next-generation hydrogen sulfide analyzer utilizing ultraviolet absorption spectroscopy technology. Featuring a unique algorithm and high-precision gas cell, it offers superior anti-interference capability and measurement accuracy compared to traditional electrochemical or gas chromatography methods.

Advanced Features

Precision measurement: UV absorption spectroscopy enables real-time monitoring with minimal gas cross-interference
Customizable range: Measurement parameters can be tailored to specific application requirements
Durable construction: All gas-contact components use corrosion-resistant materials
Automatic calibration: Built-in zero-adjustment air pump maintains accuracy
Integration ready: Multiple interface options for centralized control systems
Cost-effective: Long service life with minimal maintenance requirements

Technical Parameters

Parameter	Details
Optimal Flow Rate	0.7 - 1.2 L/min
Inlet Gas Pressure	2 - 50 kPa
Gas Requirements	Dust-free, water-free, oil-free
Operating Temperature	5 - 35 °C
Communication	RS-485/RS-232, 4-20 mA
Power Supply	220V ± 22V, 50Hz ± 1Hz
Display	LCD
Alarm Output	Passive contact signal
Diagnostic Features	Self-diagnosis function with online sensor status monitoring
