Name: 80W Vehicle Emission Gas Analyzer for CO2 Measuring Range 0.0-18.0 ×10-2 and Vehicle Exhaust Gas Monitoring
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-WQ-515
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

80W Vehicle Emission Gas Analyzer for CO2 Measuring Range 0.0-18.0 ×10-2 and Vehicle Exhaust Gas Monitoring

CO2 Measuring Range Gas Analyzer

Vehicle Exhaust Gas Analyzer

Vehicle Emission Gas Analyzer

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-WQ-515

Request A Quote

80W Vehicle Emission Gas Analyzer for CO2 Measuring Range 0.0-18.0 ×10-2 and Vehicle Exhaust Gas Monitoring

Product Details

Communication:

RS - 485/RS - 232, Can Be Connected To Gasboard Series Smoke Analysis Equipment

Power Supply:

100 - 240VAC, 80W

Display:

LCD Display

HC Measuring Range:

(0~5000)×10-6

CO Measuring Range:

(0.00~10.00)×10-2

CO2 Measuring Range:

(0.0~18.0)×10-2

Highlight:

CO2 Measuring Range Gas Analyzer

Vehicle Exhaust Gas Analyzer

Vehicle Emission Gas Analyzer

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.742.855.2mm

Get Best Price

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price

86--17719566736

Contact Now

Product Description

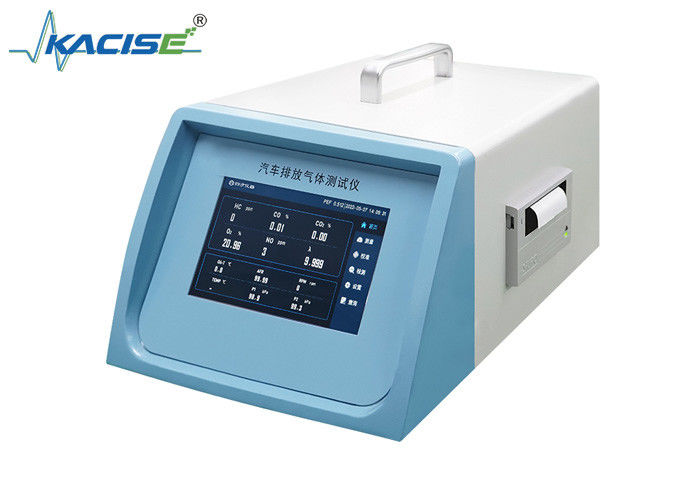

The KGD - WQ - 515 Vehicle Emission Gas Analyzer is used to monitor the exhaust gas emitted by vehicles.

Product Introduction

KGD-WQ-515 Vehicle Emission Gas Analyzer is used to monitor vehicle exhaust emissions. It employs non-dispersive infrared (NDIR) gas analysis technology and ECD long-life electrochemical sensing technology with independent intellectual property rights to measure the volume concentrations of CO, HC, CO₂, O₂, and NO in vehicle exhaust gases, and automatically calculates and displays the air-fuel ratio.

80W Vehicle Emission Gas Analyzer for CO2 Measuring Range 0.0-18.0 ×10-2 and Vehicle Exhaust Gas Monitoring 0

Product Features

Portable design with a compact size
Easy to operate, offering accurate and reliable measurements
Multi-stage filtration system design for enhanced system durability
Equipped with interfaces for oil temperature and rotational speed

Technical Parameters

Gas Type	Measuring Range	Relative Error	Absolute Error
HC	(0 - 5000)×10⁻⁶, (5001 - 9999)×10⁻⁶	± 5%, ± 10%	± 10×10⁻⁶
CO	(0.00 - 10.00)×10⁻², (10.01 - 14.00)×10⁻²	± 5%, ± 10%	± 0.03×10⁻²
CO₂	(0 - 18.0)×10⁻²	± 5%	± 0.5×10⁻²
NO	(0 - 4000)×10⁻⁶, (4001 - 5000)×10⁻⁶	± 4%, ± 8%	± 25×10⁻⁶
O₂	(0 - 25.0)×10⁻²	± 5%	± 0.1×10⁻²
Note	The absolute error and relative error listed in the table, meeting one of the requirements is sufficient.
Communication	RS - 485/RS - 232, can be connected to Gasboard series smoke analysis equipment
Power Supply	100 - 240VAC, 80W
Display	LCD display
