Name: Operating Environment-Friendly KGD WQ 501 Engine Emission Testing System for Accurate Results
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-WQ-501
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Operating Environment-Friendly KGD WQ 501 Engine Emission Testing System for Accurate Results

Accurate Results Engine Emission Testing System

KGD WQ 501 Engine Emission Testing System

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-WQ-501

Request A Quote

Product Details

Response Time:

T10 - 90 < 2.5s

Accuracy:

≤ ±2.0%WR Or ≤ ±0.3%FS

Linearity:

Determination Coefficient: ≥ 0.998; Standard Error: ≤ 1%FS; Slope: 0.99 - 1.01; Intercept Coefficient: ≤ 0.5%FS

Repeatability:

≤ ±0.5%FS

Drift:

≤ ±1%FS/8h

Operating Environment:

Ambient Temperature: 5 - 40°C; Ambient Humidity: ≤ 80%RH

Highlight:

Accurate Results Engine Emission Testing System

KGD WQ 501 Engine Emission Testing System

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD - WQ - 518 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System

Get Best Price

Non-Road Machinery / Diesel Vehicle Exhaust Smoke Detection System KGD-WQ-519 with Digital Output and Print Interface

Get Best Price

Ultra-Precision Vehicle Exhaust Analyzer KGD-WQ-521 With CO₂ Measuring Range 16.01-18.0 ×10⁻²

Get Best Price

86--17719566736

Contact Now

Product Description

Operating Environment-Friendly KGD WQ 501 Engine Emission Testing System for Accurate Results

Product Overview

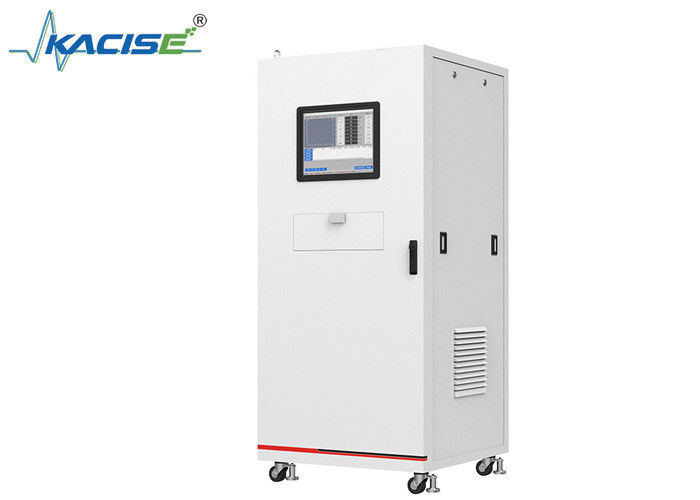

The KGD WQ 501 Engine Emission Testing System is an integrated solution designed for precise measurement of conventional gas components (THC, CH4, NOx, CO2, CO, and O2) in full-flow dilution or raw exhaust emission tests. This comprehensive system is ideal for laboratory research, development, and certification testing of various engine types and fuels.

Key Features

Incorporates patented gas sensing technologies (NDIR, NDUV, CLD, HFID) with complete lifecycle support
Wide measurement range accommodates all laboratory emission test scenarios, including ultra-low emission levels
High accuracy and rapid response for precise continuous online measurement of both diluted and raw exhaust
Optional multi-channel sampling unit for flexible multi-point exhaust pipe sampling and EGR rate measurement

Technical Specifications

Gas Component	Measurement Principle	Minimum Range	Maximum Range
THC	HFID	0 - 10 ppmC	0 - 30000 ppmC
CH4	NMC-FID	0 - 10 ppmC	0 - 3000 ppmC
NOx	NDUV/CLD	0 - 10 ppm	0 - 10000 ppm
CO	NDIR	0 - 50 ppm	0 - 10%
CO2	NDIR	0 - 0.5%	0 - 20%
O2	MPD	0 - 1%	0 - 25%

Performance Characteristics

Response Time	T10 - 90 < 2.5s
Accuracy	≤ ±2.0%WR or ≤ ±0.3%FS
Linearity	Determination coefficient: ≥ 0.998; Standard error: ≤ 1%FS; Slope: 0.99 - 1.01; Intercept coefficient: ≤ 0.5%FS
Repeatability	≤ ±0.5%FS
Drift	≤ ±1%FS/8h
Operating Environment	Ambient temperature: 5 - 40°C; Ambient humidity: ≤ 80%RH
