Name: KGD-WQ-507 Dual - Channel Direct - Sampling Gas Emission Analyzer
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-WQ-507
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KGD-WQ-507 Dual - Channel Direct - Sampling Gas Emission Analyzer

Direct sampling Gas Emission Analyzer

Dual channel Gas Emission Analyzer

KGD-WQ-507 Gas Emission Analyzer

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-WQ-507

Request A Quote

Product Details

THC Detection Range:

0 - 10 - 30000 PpmC

CH₄ Detection Range:

0 - 10 - 30000 PpmC

NOₓ Detection Range:

0 - 10 - 10000 PpmC

CO Detection Range:

0 - 0.005 - 10%

CO₂ Detection Range:

0 - 0.1 - 20%

O₂ Detection Range:

0 - 25%

Highlight:

Direct sampling Gas Emission Analyzer

Dual channel Gas Emission Analyzer

KGD-WQ-507 Gas Emission Analyzer

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD - WQ - 518 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System

Get Best Price

Non-Road Machinery / Diesel Vehicle Exhaust Smoke Detection System KGD-WQ-519 with Digital Output and Print Interface

Get Best Price

Ultra-Precision Vehicle Exhaust Analyzer KGD-WQ-521 With CO₂ Measuring Range 16.01-18.0 ×10⁻²

Get Best Price

86--17719566736

Contact Now

Product Description

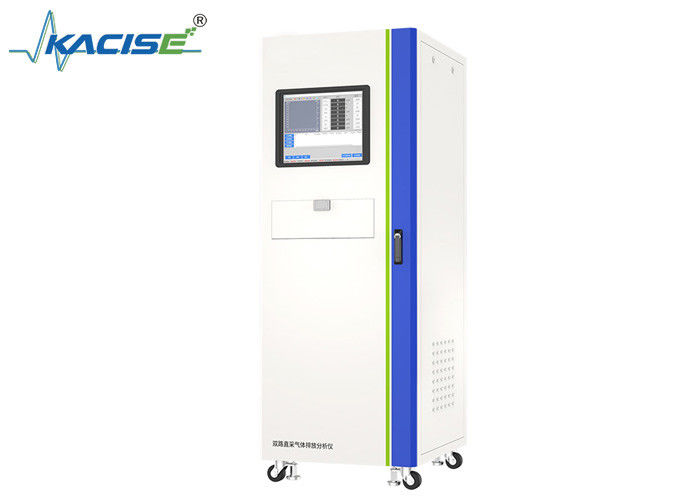

KGD-WQ-507 Dual-Channel Direct-Sampling Gas Emission Analyzer

Key Specifications

Attribute	Value
THC Detection Range	0 - 10 - 30000 ppmC
CH₄ Detection Range	0 - 10 - 30000 ppmC
NOₓ Detection Range	0 - 10 - 10000 ppmC
CO Detection Range	0 - 0.005 - 10%
CO₂ Detection Range	0 - 0.1 - 20%
O₂ Detection Range	0 - 25%

Product Overview

The KGD-WQ-507 Dual-Channel Direct-Sampling Gas Emission Analyzer integrates multiple advanced detection technologies including Hydrogen Flame Ionization Detection (HFID), Non-Dispersive Ultraviolet (NDUV), Chemiluminescence Detection (CLD), Non-Dispersive Infrared (NDIR), and Magnetic-Parametric Detection (MPD). This comprehensive solution simultaneously measures volume concentrations of THC, CH₄, NOₓ, CO, CO₂, and O₂ in engine exhaust emissions, as well as CO₂ concentration in EGR pipeline gas.

Designed for engine manufacturers, testing institutions, and research facilities, this analyzer provides complete system testing solutions to meet increasingly stringent emission regulations.

Key Features

Simultaneous measurement of THC, NOₓ, CO, CO₂, O₂ with optional CH₄, NMHC, NH₃, N₂O measurement capabilities
NDUV technology for direct NO and NO₂ measurement without converter furnace, eliminating maintenance requirements
Optional CLD technology for NOₓ measurement
Real-time multi-point sampling and analysis of exhaust gas components
Comprehensive EGR gas path CO₂ concentration analysis
Integrated, automated design for ease of operation
High accuracy measurements with fast response times, comparable to imported equipment standards

Technical Parameters

Gas Type	Detection Range	Resolution	Measurement Error	Rise Time
THC	0 - 10 - 30000 ppmC	0.1ppm	≤ 2% of reading or ≤ 0.3% F.S.	≤ 1.5s
CH₄	0 - 10 - 30000 ppmC	0.1ppm	≤ 2% of reading or ≤ 0.3% F.S.	≤ 1.5s
NOₓ	0 - 10 - 10000 ppmC	0.1ppm	≤ 2% of reading or ≤ 0.3% F.S.	≤ 1.5s
CO	0 - 0.005 - 10%	1ppm	≤ 2% of reading or ≤ 0.3% F.S.	≤ 1.5s
CO₂	0 - 0.1 - 20%	0.01%	≤ 2% of reading or ≤ 0.3% F.S.	≤ 1.5s
O₂	0 - 25%	0.01%	≤ 2% of reading or ≤ 0.3% F.S.	≤ 1.5s
EGR CO₂	0 - 0.1 - 20%	0.01%	≤ 2% of reading or ≤ 0.3% F.S.	≤ 1.5s
