KGD WQ 511 Motor Vehicle Nitrogen Oxides Rapid Detector Fast and Accurate Detection with Resolution 1ppm

KGD WQ 511 Motor Vehicle Nitrogen Oxides Rapid Detector Fast and Accurate Detection with Resolution 1ppm

Accurate Nitrogen Oxides Rapid Detector

1ppm Nitrogen Oxides Rapid Detector

Fast Nitrogen Oxides Rapid Detector

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KGD-WQ-511

Contact Us
Request A Quote
KGD WQ 511 Motor Vehicle Nitrogen Oxides Rapid Detector Fast and Accurate Detection with Resolution 1ppm
Product Details
Measurement Principle:
Ultraviolet Spectroscopy
Measuring Range:
0 - 1500ppm
Resolution:
1ppm
Relative Error:
± 4%
Absolute Error:
± 17ppm
Response Time:
≤ 5s
Highlight:

Accurate Nitrogen Oxides Rapid Detector

,

1ppm Nitrogen Oxides Rapid Detector

,

Fast Nitrogen Oxides Rapid Detector

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65 online

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price
Good price Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm online

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm

Get Best Price
Good price 10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement online

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price
Good price Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323 online

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

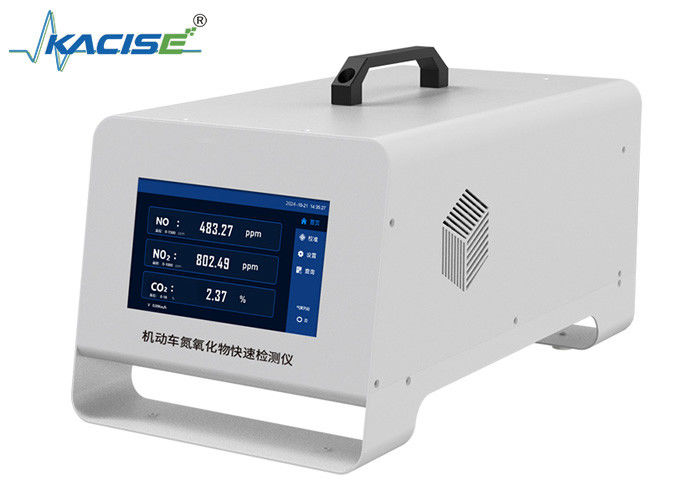

KGD - WQ - 511 Motor Vehicle Nitrogen Oxides Rapid Detector

Product Introduction

The KGD - WQ - 511 Motor Vehicle Nitrogen Oxides Rapid Detector uses ultraviolet spectroscopy to continuously measure NO and NO₂ in real - time. It is equipped with a Beidou navigation system and an APP software platform, and is specifically designed for rapidly detecting the concentration of nitrogen oxides in the exhaust emissions of in - use vehicles under simulated conditions on a chassis dynamometer or during actual road driving conditions.

KGD WQ 511 Motor Vehicle Nitrogen Oxides Rapid Detector Fast and Accurate Detection with Resolution 1ppm 0

Product Features

  • Directly measures NO and NO₂ without the need for a NOₓ converter.
  • Multi - stage filtration design to prevent contamination of the measurement gas chamber.
  • Compact structure, robust and durable, with low maintenance costs.
  • APP software platform for convenient remote online monitoring.

Technical Parameters

Equipment Name Portable Nitrogen Oxide Analyzer (NO) Portable Nitrogen Oxide Analyzer (NO₂) Portable Nitrogen Oxide Analyzer (CO₂)
Measured Gas NO NO₂ CO₂
Measurement Principle Ultraviolet Spectroscopy Ultraviolet Spectroscopy Electrochemistry
Measuring Range 0 - 1500ppm 0 - 1000ppm 0 - 18%
Resolution 1ppm 1ppm 0.01%
Relative Error ± 4% ± 4% ± 3%
Absolute Error ± 17ppm ± 17ppm ± 0.03%
Response Time ≤ 5s ≤ 5s ≤ 5s
Pre - heating Time 800s 800s 800s
Communication Interface RS232, Wi - Fi RS232, Wi - Fi RS232, Wi - Fi
Operating Temperature 5 - 40°C 5 - 40°C 5 - 40°C
Operating Humidity 5 - 85% RH 5 - 85% RH 5 - 85% RH
Operating Pressure 86 - 106 kPa 86 - 106 kPa 86 - 106 kPa
Working Power Supply DC 12V DC 12V DC 12V
