Name: WSS-411W Industrial Bimetallic Thermometer with Stainless Steel 304/316, Customizable Stem Length, and No Power Supply Required
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: WSS-411W
Price: 1,000.00 USD
Availability: InStock

Home > Products > Fluid Level Meter >

WSS-411W Industrial Bimetallic Thermometer with Stainless Steel 304/316, Customizable Stem Length, and No Power Supply Required

WSS-411W bimetallic thermometer

Industrial bimetallic thermometer

Place of Origin:

CHINA

Brand Name:

KACISE

Model Number:

WSS-411W

Request A Quote

Product Details

Measuring Range:

-50°C To +500°C (customizable)

Accuracy Class:

±1.0%, ±1.5%, Or ±2.0% (per EN 13190 Or ASME B40.3)

Dial Diameter:

63 Mm / 100 Mm / 150 Mm

Stem Length:

50 Mm To 500 Mm (custom Lengths Available)

Stem Diameter:

Ø6 Mm / Ø8 Mm / Ø10 Mm

Material:

Stainless Steel 304 Or 316

Highlight:

WSS-411W bimetallic thermometer

Industrial bimetallic thermometer

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

80G Radar Level Gauge with 80GHz Frequency ±1mm Accuracy and PTFE Antenna for Harsh Environments

Get Best Price

Video

KUS550 Analog Output Ultrasonic Sensor for Short Distance Measurement with Low Power Consumption

Get Best Price

Video

KUS550 Series Ultrasonic Level Sensor with Low Power Consumption IP68 Protection and PVDF Shell Material

Get Best Price

80GHz Radar Level Meter with IP67 Protection and PTFE Antenna for High Precision Measurement

Get Best Price

Contact Now

Product Description

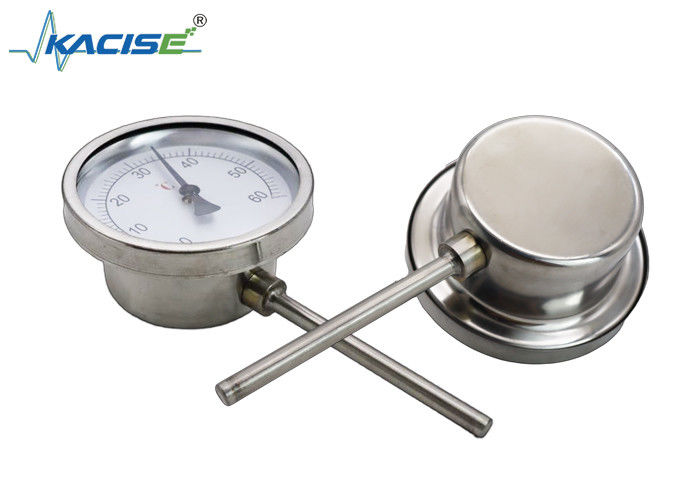

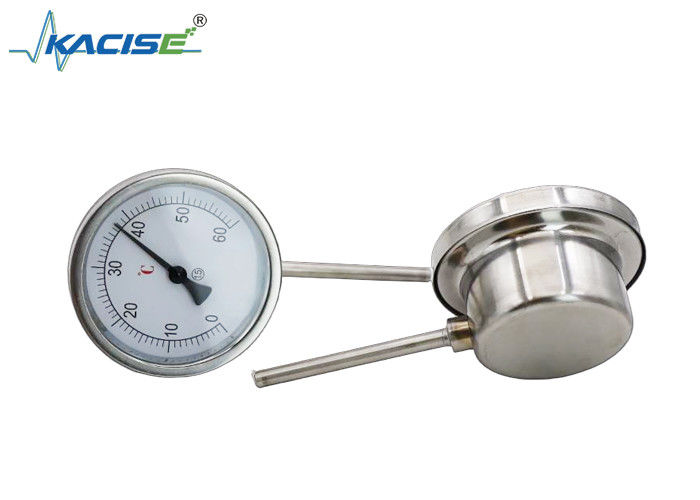

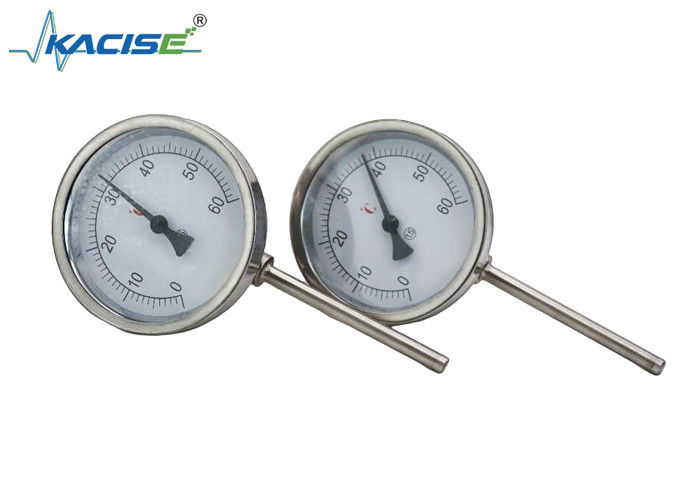

WSS-411W Industrial Bimetallic Thermometer

Product Overview

The WSS-411W Industrial Bimetallic Thermometer is a durable, mechanical temperature-measuring solution. Its bimetallic strip, made of two metals with distinct thermal expansion rates, senses temperature changes and drives the pointer for direct readings without needing external power.

Key Features

No power supply required (mechanical type)
Durable and reliable for harsh environments
Fast response time and clear dial reading
Available in various dial sizes, ranges, stem lengths, and connection types
Optional waterproof and anti-corrosion design
Stainless steel construction (304/316) optional for food and sanitary use

Technical Specifications

Parameter	Specification
Measuring Range	-50°C to +500°C (customizable)
Accuracy Class	±1.0%, ±1.5%, or ±2.0% (per EN 13190 or ASME B40.3)
Dial Diameter	63 mm / 100 mm / 150 mm
Stem Length	50 mm to 500 mm (custom lengths available)
Stem Diameter	Ø6 mm / Ø8 mm / Ø10 mm
Material	Stainless steel 304 or 316
Mounting Type	Back, bottom, or adjustable angle connection
Connection	Threaded (1/2" NPT, G1/2", M20x1.5, etc.)
Window Material	Glass or polycarbonate
Protection Grade	IP55 / IP65 / IP67 (optional)
