Name: WSS-411W Industrial Bimetallic Thermometer
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: WSS-411W
Price: 1,000.00 USD
Availability: InStock

Home > products > Fluid Level Meter >

WSS-411W Industrial Bimetallic Thermometer

WSS-411W bimetallic thermometer

Industrial bimetallic thermometer

Place of Origin:

CHINA

Brand Name:

KACISE

Model Number:

WSS-411W

Request A Quote

Product Details

Measuring Range:

-50°C To +500°C (customizable)

Accuracy Class:

±1.0%, ±1.5%, Or ±2.0% (per EN 13190 Or ASME B40.3)

Dial Diameter:

63 Mm / 100 Mm / 150 Mm

Stem Length:

50 Mm To 500 Mm (custom Lengths Available)

Stem Diameter:

Ø6 Mm / Ø8 Mm / Ø10 Mm

Material:

Stainless Steel 304 Or 316

Highlight:

WSS-411W bimetallic thermometer

Industrial bimetallic thermometer

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KSINC01 Current Type Inclinometer

Get Best Price

Industrial Grade WSS-411W Bimetal Thermometer with Custom Stem Length

Get Best Price

Video

Digital Auto-tuning Function KDI Series Digital Display Controller With Measuring Range -1999-9999 Accuracy 0.2% FS ±1

Get Best Price

Video

KDI Series Display Controller Supporting Multi - Machine Communication

Get Best Price

86--17719566736

Contact Now

Product Description

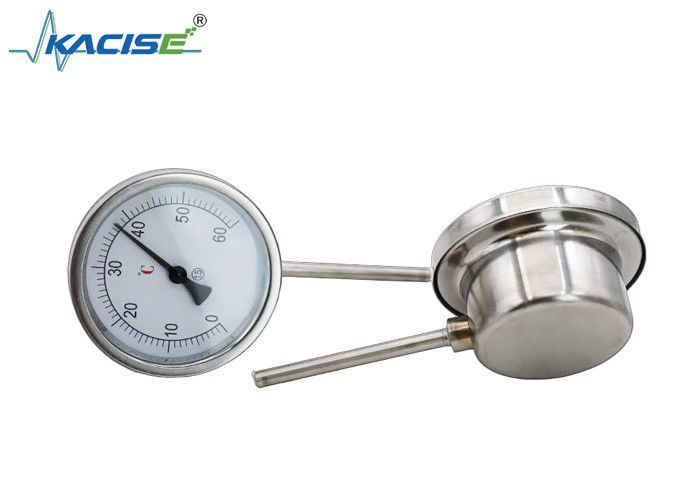

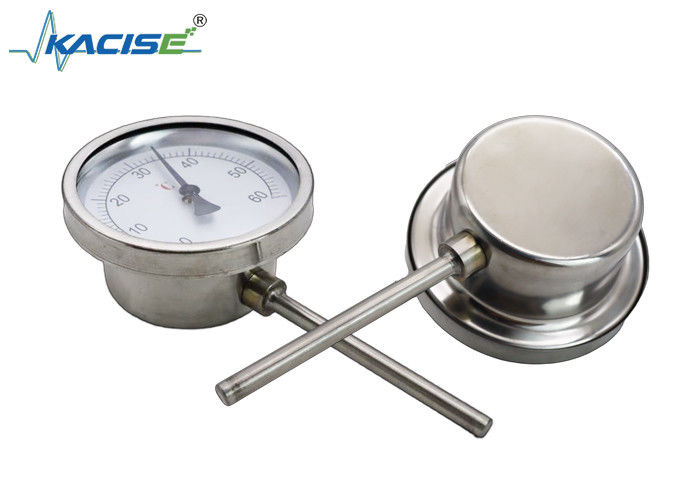

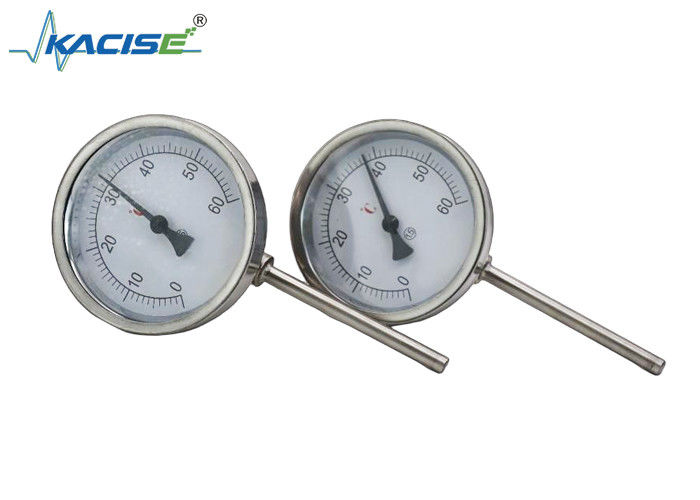

WSS-411W Industrial bimetallic thermometer

Introduction

The WSS-411W Industrial Bimetallic Thermometer is a durable, mechanical temperature-measuring solution. Its bimetallic strip, made of two metals with distinct thermal expansion rates, senses temperature changes and drives the pointer for direct readings without needing external power.

Features

No power supply required (mechanical type)
Durable and reliable for harsh environments
Fast response time and clear dial reading
Available in various dial sizes, ranges, stem lengths, and connection types
Optional waterproof and anti-corrosion design
Stainless steel construction (304/316) optional for food and sanitary use

Technical Parameters

Measuring Range	-50°C to +500°C (customizable)
Accuracy Class	±1.0%, ±1.5%, or ±2.0% (per EN 13190 or ASME B40.3)
Dial Diameter	63 mm / 100 mm / 150 mm
Stem Length	50 mm to 500 mm (custom lengths available)
Stem Diameter	Ø6 mm / Ø8 mm / Ø10 mm
Material	Stainless steel 304 or 316
Mounting Type	Back, bottom, or adjustable angle connection
Connection	Threaded (1/2” NPT, G1/2", M20x1.5, etc.)
Window Material	Glass or polycarbonate
Protection Grade	IP55 / IP65 / IP67 (optional)
