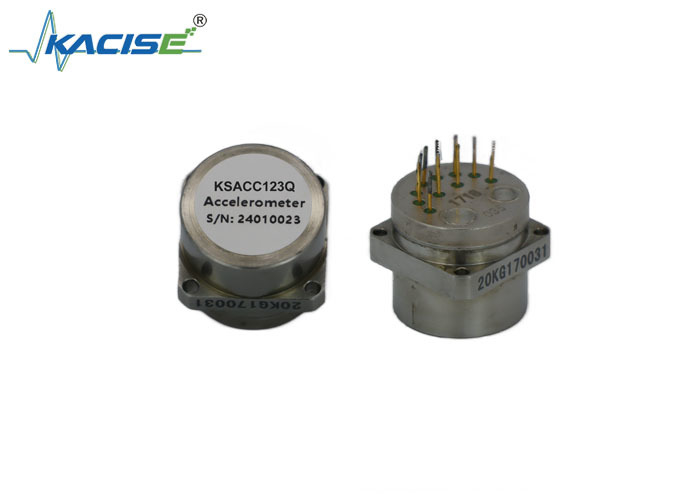

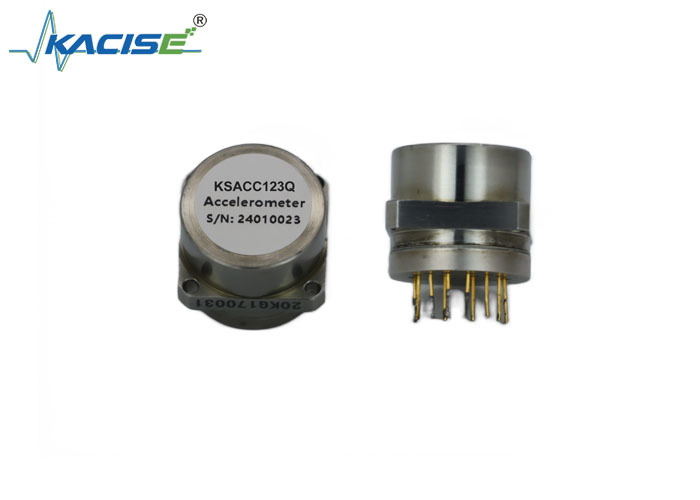

Name: KSACC123Q Quartz Flexible Accelerometer ±20g Range
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSACC123Q
Price: 431.00 USD
Availability: InStock

Home > products > Electronic Gyroscope Sensor >

KSACC123Q Quartz Flexible Accelerometer ±20g Range

quartz flexible accelerometer ±20g

quartz accelerometer with wide input range

electronic gyroscope sensor with warranty

Place of Origin:

CHINA

Brand Name:

kacise

Certification:

Model Number:

KSACC123Q

Request A Quote

Product Details

Power Supply Parameter Power Voltage:

±12~±18V DC

Input Range:

±20g

Temperature Sensitivity:

≤150μg/°C

Size:

Ø18.8×21mm

Weight:

≤25g

Shock:

1000g

Highlight:

quartz flexible accelerometer ±20g

quartz accelerometer with wide input range

electronic gyroscope sensor with warranty

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Three-axis gyroscope sensor for robot, Nonlinearity ≤0.05(%FR), zero-bias stability 12(°/h)

Get Best Price

±5V Supply Voltage Electronic Gyroscope Sensor for Robotics Applications

Get Best Price

Cross Coupling ≤2 % and Nonlinearity ≤0.05 %FR MEMS Gyro for High Precision Navigation

Get Best Price

Fiber optic gyroscopes for aircraft navigation and platform stability testing with ≤0.01(°) / H Bias drift

Get Best Price

86--17719566736

Contact Now

Product Description

KSACC123Q Quartz Flexible Accelerometer ±20g Input Range

Product Attributes

Attribute	Value
Power supply parameter Power Voltage	±12~±18V DC
Input Range	±20g
Temperature Sensitivity	≤150μg/°C
Size	Ø18.8×21mm
Weight	≤25g
Shock	1000g

Product Description

KSACC123Q Quartz Flexible Accelerometer

The quartz flexible accelerometer is a precision instrument comprising quartz glass flexible support and advanced servo circuit based on the principle of inertia. When the carrier is subjected to acceleration, the output is precisely proportional to the input acceleration. This accelerometer features current output with high output impedance, allowing users to select sampling resistance according to requirements without affecting system stability.

Our quartz flexible accelerometer series includes products ranging from high-precision μg KSACC111Q accelerometers for satellite microgravity measurement to cost-effective, rugged KSACC117Q accelerometers. These are widely used in aerospace, aviation, navigation, marine, vehicle, petroleum, and geotechnical engineering applications, providing signals for navigation, guidance, control, leveling, and monitoring systems.

Key Features

Excellent index repeatability
Analog output
Compact size and light weight
Wide load resistance range
Square precision mounting flanges
Ideal for oil drilling measurement systems
Two available models
Superior high temperature resistance

Applications

Inertial monitoring systems
Inertial navigation systems
Flight control systems
Vibration monitoring
Oil drilling platforms and geological exploration
Inertial measurement units
Motion monitoring equipment

Technical Specifications

Power Supply Parameters
Power Voltage	12~18VDC
Power at 25°C	90mW
Supply current	6mA

Product Performance
Range	±20 g
Size	Ø18.8×21
Bias	<20 mg
Bias stability	≤100ug
Bias temperature sensitivity	100ug/°C
Bias repeatability	≤100ug
Scale factor	2.2~3.5mA/g
Scale factor temperature sensitivity	200ppm/°C
Second order nonlinear coefficient	≤80μg/g²
Second order nonlinearity coefficient repeatability	≤60μg/g²
Scale factor repeatability	100ppm
Noise	<10μg
Threshold	<10 μg
Bandwidth	<200 Hz
Weight	≤25g

Environmental Specifications
Operating temperature	-45°C～+125°C
Storage temperature	-55°C～130°C
Random vibration	20 grms
Sine vibration	20g peak, 50 to 800Hz
Working shock	500g
Shock	1000g

Dimensions

Unit: mm
