Name: GSACC102M MEMS Accelerometer with ±10 g Range ≤ 1500 Hz Bandwidth and 100±30 mV/g Sensitivity for Mechanical Vibration Monitoring
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSACC102M
Price: 478.00 USD
Availability: InStock

Home > Products > Accelerometer Sensor >

GSACC102M MEMS Accelerometer with ±10 g Range ≤ 1500 Hz Bandwidth and 100±30 mV/g Sensitivity for Mechanical Vibration Monitoring

±10 g Range MEMS Accelerometer

≤ 1500 Hz Bandwidth Acceleration Sensor

100±30 mV/g Sensitivity Vibration Sensor

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSACC102M

Request A Quote

Product Details

Range:

±10 G

Bandwidth:

≤ 1500 Hz

Sensitivity:

100±30 MV / G

Resolution (°/s):

≤ 0.002 G

Nonlinear (%FS):

≤ 0. 5% Fs

Highlight:

±10 g Range MEMS Accelerometer

≤ 1500 Hz Bandwidth Acceleration Sensor

100±30 mV/g Sensitivity Vibration Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability

Get Best Price

GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s

Get Best Price

GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications

Get Best Price

GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg

Get Best Price

86--17719566736

Contact Now

Product Description

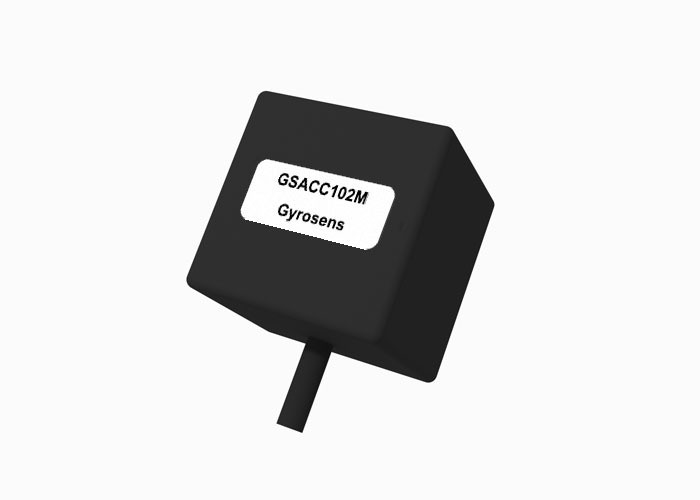

GSACC102M MEMS Accelerometers

Key Features

Analog voltage output
Magnetic suction installation
Small size, light weight

Applications

Mechanical vibration monitoring equipment
Linear acceleration measurement

Technical Specifications

Electrical Characteristics
Input voltage	5±0.25 VDC
Input current	≤2 mA
Output Mode	0.5~4.5V
Performance Index
Axial direction	Z
Range	±10 g
Bandwidth	≤ 1500 Hz
Sensitivity	100±30 mV / g
Resolution (°/s)	≤ 0.002 g
Nonlinear (%FS)	≤ 0.5% Fs
Bias	2.5±0.1 V
Bias temperature drift	≤ 0.01mg/ºC
Start-up time (ms)	≤0.002s
Environmental Characteristics
Temperature (°C)	-40℃~+70℃
Storage Temperature	-40℃~+125℃
Resistant to shock	2000g
Physical Characteristics
Weight (g)	45g
Dimensions	22.822.820.6 mm

Dimensions

Note: Manual content will be updated from time to time. Please contact the supplier for the latest product manual.
