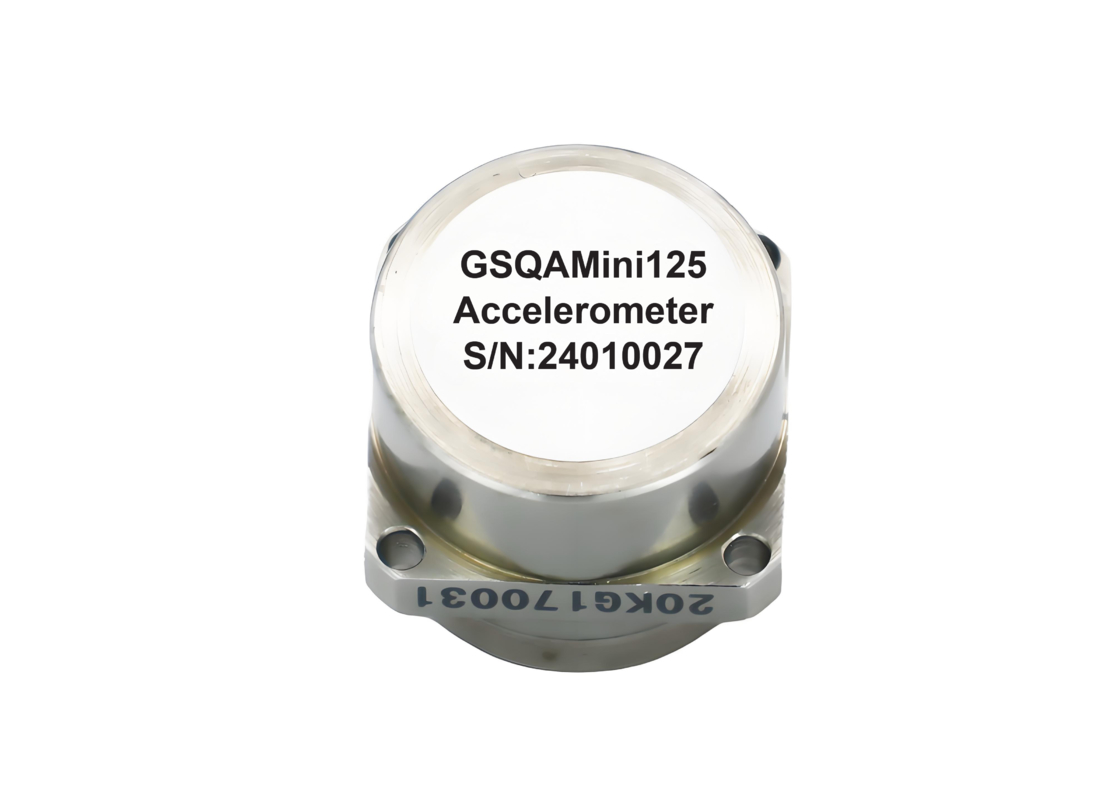

Name: Mini Size Ø18.8×21 Quartz Flexible Accelerometer with Scale Factor 2.2~3.5mA/g and Bias Repeatability ≤100ug
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSQAMini125
Price: 478.00 USD
Availability: InStock

Home > Products > Accelerometer Sensor >

Mini Size Ø18.8×21 Quartz Flexible Accelerometer with Scale Factor 2.2~3.5mA/g and Bias Repeatability ≤100ug

Mini Size Quartz Flexible Accelerometer

Scale Factor Accelerometer Sensor

Bias Repeatability Precision Accelerometer

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSQAMini125

Request A Quote

Product Details

Size:

Ø18.8×21

Scale Factor:

2.2~3.5mA/g

Bias Repeatability:

≤100ug

Bias Temperature Sensitivity:

100ug/°C

Bias Stability:

≤100ug

Bias:

<20 Mg

Highlight:

Mini Size Quartz Flexible Accelerometer

Scale Factor Accelerometer Sensor

Bias Repeatability Precision Accelerometer

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

Supply Ability

1000 Piece/Pieces per Week negotiable

Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability

Get Best Price

GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s

Get Best Price

GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications

Get Best Price

GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg

Get Best Price

Contact Now

Product Description

GSQAMini125 Quartz Flexible Accelerometer

Product Introduction

The quartz flexible accelerometer is a precision instrument featuring quartz glass flexible support and advanced servo circuitry based on inertia principles. When subjected to acceleration, it delivers an output precisely proportional to the input acceleration. With high output impedance in current output form, users can select sampling resistance according to requirements without compromising system stability.

Our quartz flexible accelerometer product line ranges from high-precision μg GSACC111Q models for satellite microgravity measurement to cost-effective, rugged GSACC117Q variants. These instruments serve aerospace, aviation, navigation, marine, automotive, petroleum, and geotechnical applications, providing critical signals for navigation, guidance, control, leveling, and monitoring systems.

Key Features

Excellent index repeatability
Analog output capability
Compact size and lightweight design
Wide load resistance range
Precision square mounting flanges
Oil drilling measurement system compatibility
Two available models
Superior high temperature resistance

Applications

Inertial monitoring systems
Inertial navigation systems
Flight control systems
Vibration monitoring
Oil drilling platforms and geological exploration
Inertial measurement units
Motion monitoring equipment

Technical Specifications

Parameter	GSQAMini125	GSQAMini185
Power supply parameter
Power Voltage	12~18VDC	12~18VDC
Power 25°C	90mW	90mW
Supply current	6mA	6mA
Product performance
Size	Ø18.8×21	Ø18.8×21
Bias	<20 mg	<30 mg
Bias stability	≤100ug	≤200ug
Bias temperature sensitivity	100ug/°C	100ug/°C
Bias repeatability	≤100ug	≤200ug
Scale factor	2.2~3.5mA/g	1.5~3.5mA/g
Scale factor temperature sensitivity	200ppm/°C	300ppm/°C
Second order nonlinear coefficient	≤80μg/g²	≤100μg/g²
Second order nonlinearity coefficient repeatability	≤60μg/g²	≤60μg/g²
Scale factor repeatability	100ppm	200ppm
Threshold	<10μg	<10μg
Resolution	<10 μg	<10μg
Bandwidth	<200 Hz	<200 Hz
Weight	≤25g	≤25g
Range	±20 g	±20 g
Environment
Operating temperature	-45°C～+125°C	-45°C～+185°C
Storage temperature	-55°C～130°C	-55°C～190°C
Random vibration	20 grms	20 grms
Shock	1000g	1000g

Dimensions
