Name: Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSIMU001M
Price: 478.00 USD
Availability: InStock

Home > Products > Accelerometer Sensor >

Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability

±200°/s full scale Inertial Measurement Unit

≤0.1% nonlinearity Digital IMU

≤0.3°/s bias repeatability IMU

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSIMU001M

Request A Quote

Product Details

Full Scale:

±200(optional)°/s

Nonlinearity:

≤0.1%

Bias Repeatability:

≤0.3°/s

Bias Stability:

≤10°/s

Bias:

≤±0.1°/s

Highlight:

±200°/s full scale Inertial Measurement Unit

≤0.1% nonlinearity Digital IMU

≤0.3°/s bias repeatability IMU

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

Supply Ability

1000 Piece/Pieces per Week negotiable

GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s

Get Best Price

GSRBA500D Quartz Flexible Accelerometer with ±70g Range, Small Size 22mm×22mm×14mm, and High Reliability for Aerospace and Applications

Get Best Price

GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg

Get Best Price

Mini Size Ø18.8×21 Quartz Flexible Accelerometer with Scale Factor 2.2~3.5mA/g and Bias Repeatability ≤100ug

Get Best Price

Contact Now

Product Description

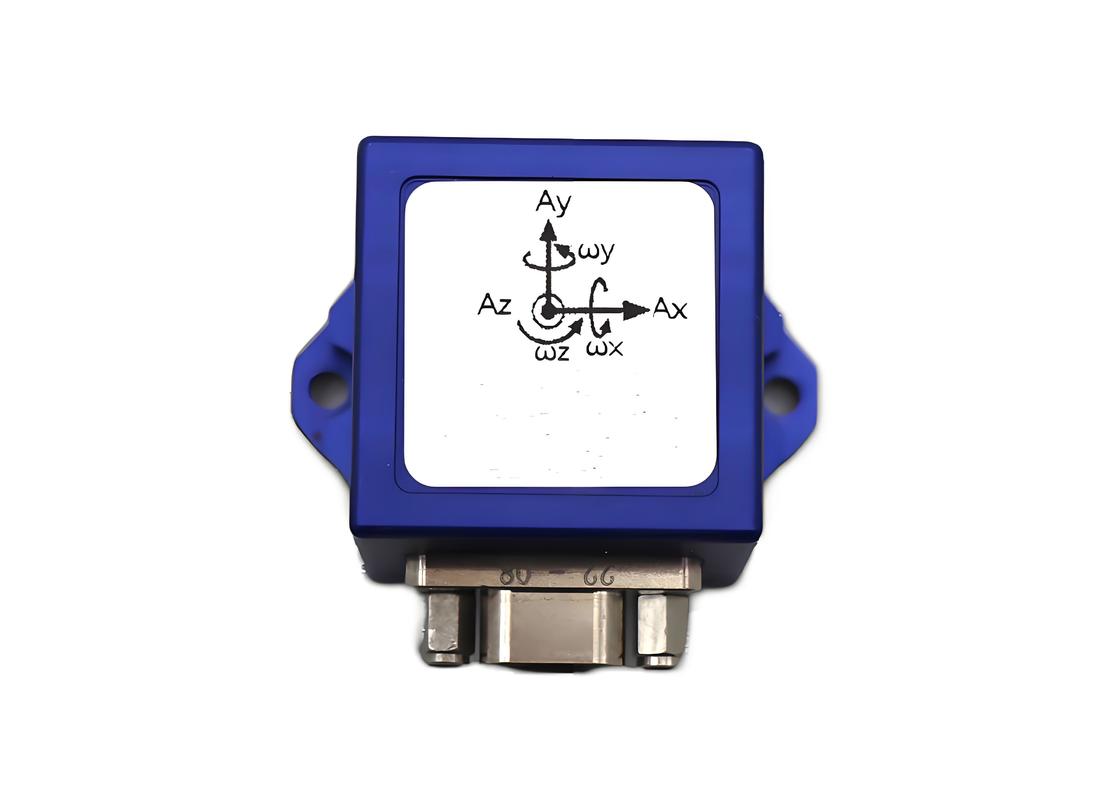

GSIMU001M Universal Digital Inertial Measurement Unit

The GSIMU001M Inertial Measurement Unit is a high-performance, cost-effective solution for navigation, control, and dynamic measurement applications. Featuring a sealed design, this unit delivers precise angular velocity and acceleration measurements even in demanding environmental conditions.

Key Features

Low cost with compact dimensions
Wide operating temperature range (-40°C to +85°C)
Broad power input compatibility with digital output
Robust construction for enhanced reliability
Low power consumption and fast startup
Wide bandwidth for responsive performance

Applications

Automotive electronics

Aircraft guidance and control

Attitude reference systems

Platform stabilization

Robotics

Antenna stabilization

Technical Specifications

Power Supply Parameters
Supply voltage	5V DC ±5%
Power consumption	≤0.5W @5V DC
Product Performance
Size	Ф39.522mm, Ф39.528.5mm, 26.526.523.5mm
Weight	≤100g
Heading	±180°
Roll	±180°
Pitch	±90°
Pitch Accuracy	0.3°
Gyroscope
Full Scale	±200° (optional)/s
Bias	≤±0.1°/s
Bias stability	≤10°/s
Bias repeatability	≤0.3°/s
Nonlinearity	≤0.1%
Accelerometer
Full Scale	≤0.3°/h
Bias	≥500Hz
Bias stability	170g±10g
Nonlinearity	≤0.1%
General
MTBF	10Kh
Output Interface	Digital RS422
Update rate (user settable)	200 Hz@460800
Environmental Specifications
Operating temperature	-40°C to +70°C
Storage temperature	-55°C to +85°C
Vibration	6 g @ 20-2000 Hz
Shock	8000 g, 0.5 ms, 1/2 Sine

Dimensions
