Name: GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GS16488
Price: 478.00 USD
Availability: InStock

Home > Products > Accelerometer Sensor >

GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s

1 Channel SPI Inertial Measurement Unit

Bias Repeatability −40°C ≤ TA ≤ +85°C IMU

Scale Factor Nonlinearity FS=450 º/s GS16488

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GS16488

Request A Quote

Product Details

Bias Repeatability:

−40°C ≤ TA ≤ +85°C

Scale Factor Nonlinearity:

FS=450 º/s

Scale Factor Repeatability:

−40°C ≤ TA ≤ +85°C

Highlight:

1 Channel SPI Inertial Measurement Unit

Bias Repeatability −40°C ≤ TA ≤ +85°C IMU

Scale Factor Nonlinearity FS=450 º/s GS16488

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

D/A,L/C,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability

Get Best Price

GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s

Get Best Price

GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications

Get Best Price

GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg

Get Best Price

86--17719566736

Contact Now

Product Description

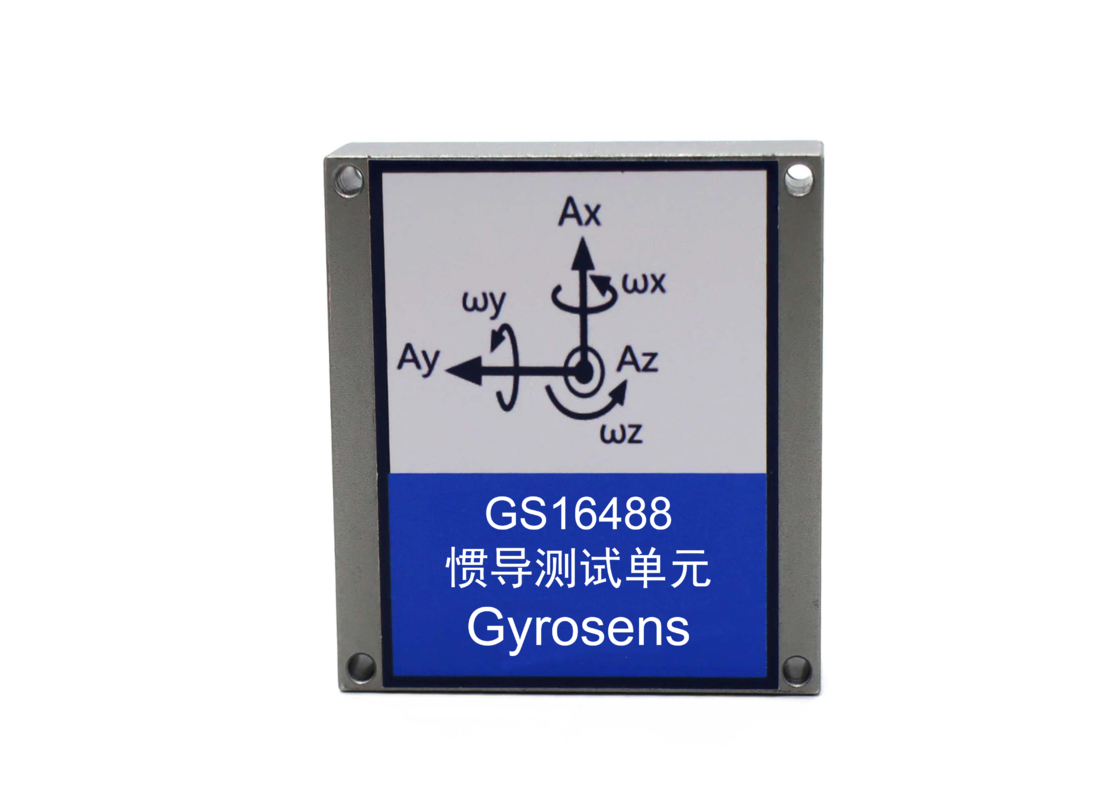

GS16488 Inertial Measurement Unit

Product Introduction

The GS16488 Inertial Measurement Unit is a high-performance domestic inertial measurement device featuring compact size and exceptional overload resistance. With gyroscope zero bias stability of 0.5°/h (Allan) and accelerometer zero bias stability of 10µg (Allan), it is designed for precise navigation, control, and dynamic measurement in weapon systems.

This product series utilizes high-precision MEMS inertial devices, offering outstanding reliability and robustness to accurately measure angular velocity and acceleration information in harsh environments. The unit incorporates a three-axis gyro, three-axis accelerometer, three-axis magnetic sensor, and pressure sensor, providing comprehensive motion data through serial communication with error compensation.

Key Features

High precision MEMS inertial navigation
Supports dynamic fast alignment
High bandwidth with rapid data update rate
1 channel SPI interface
Compact and lightweight design
Durable and reliable construction
Fully compatible with foreign 10-degree freedom inertial measurement systems

Applications

Unmanned aerial vehicle Aerial photography Agricultural plant protection Photoelectric detection stabilization In-vehicle navigation Vehicle satellite communication Forest and land monitoring High-speed railway track inspection

Technical Specifications

Parameter	Test condition	MIN	TYP	MAX	Units
Power supply parameter
Voltage		3.0	3.3	3.6	V
Power dissipation				1.5	W
Ripple	P-P			100	mV
Product performance
Gyroscope Range			±400	±450	°/s
Gyroscope Bias stability	Allan		0.8		°/h
Gyroscope Random walk			0.06		°/√h
Accelerometer Range				±10	g
Accelerometer Bias stability	Allan		0.01		mg
Magnetometer Dynamic range			±2.5		gauss
Barometer Pressure range		450		1100	mbar
Structural characteristics
Size			44×47×14		mm
Weight			50		g
Environment
Operating temperature		-40		75	°C
Vibration		10～2000Hz,3g
Overload	Half-sine 0.5msec	1000g

Dimensions
