Name: GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSQAT160
Price: 478.00 USD
Availability: InStock

Home > Products > Accelerometer Sensor >

GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg

Bias <20 mg Accelerometer Sensor

Scale Factor 2.75 mA/g ± 1.8% Quartz Flexible Accelerometer

Bias Repeatability 1mg Precision Accelerometer

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSQAT160

Request A Quote

Product Details

Bias:

<20 Mg

Scale Factor Temperature Sensitivity:

800ppm/°C

Scale Factor:

2.75 MA/g ± 1.8%

Bias Repeatability:

1mg

Bias Temperature Sensitivity:

200ug/°C

Bias Stability:

1mg

Highlight:

Bias <20 mg Accelerometer Sensor

Scale Factor 2.75 mA/g ± 1.8% Quartz Flexible Accelerometer

Bias Repeatability 1mg Precision Accelerometer

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability

Get Best Price

GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s

Get Best Price

GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications

Get Best Price

GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg

Get Best Price

86--17719566736

Contact Now

Product Description

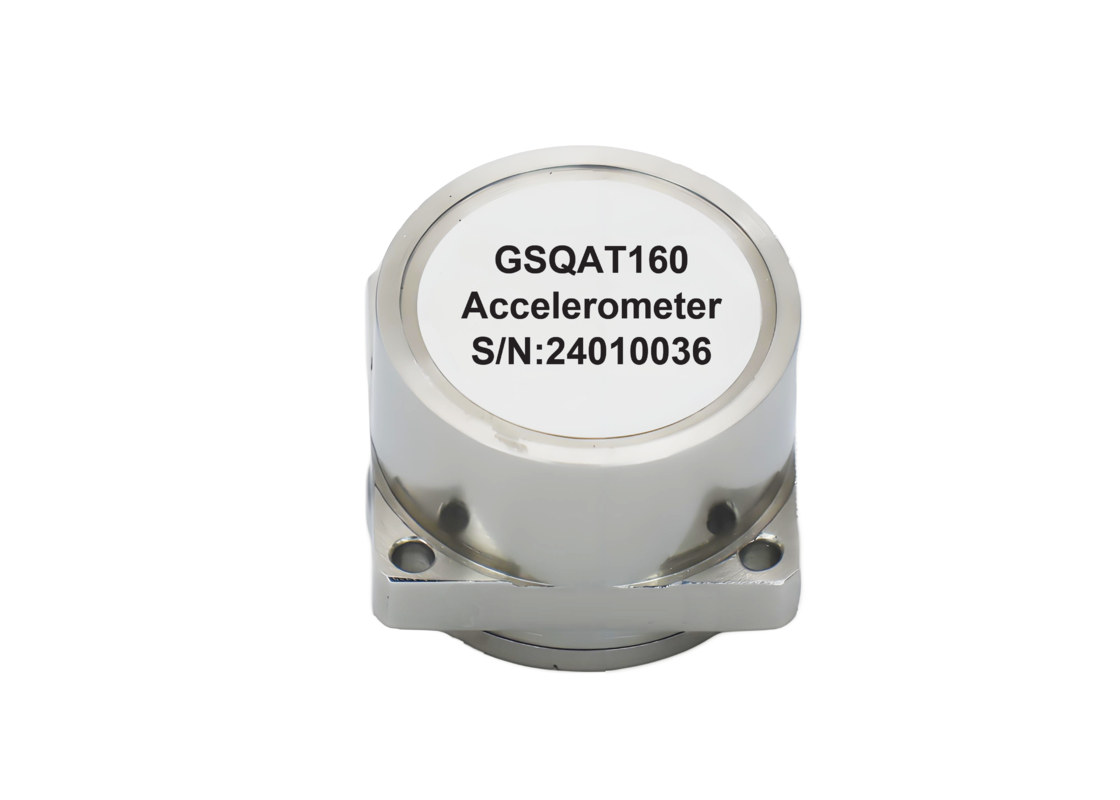

GSQAT160 Quartz Flexible Accelerometer

Product Introduction

The quartz flexible accelerometer is a precision instrument comprising quartz glass flexible support and advanced servo circuitry based on the principle of inertia. When subjected to acceleration, the output is precisely proportional to the input acceleration. Featuring a current output form with high output impedance, users can select sampling resistance according to requirements without affecting system stability.

Our product line includes high-precision μg GSACC111Q accelerometers for satellite microgravity measurement to cost-effective, rugged GSACC117Q models. These accelerometers are widely used in aerospace, aviation, navigation, marine, automotive, petroleum, and geotechnical engineering applications, providing signals for navigation, guidance, control, leveling, and monitoring systems.

Key Features

Excellent index repeatability
Analog output
Compact size and lightweight design
Wide load resistance range
Square precision mounting flanges
Ideal for oil drilling measurement systems
Two available models
Superior high temperature resistance

Applications

Inertial monitoring systems
Inertial navigation systems
Flight control systems
Vibration monitoring
Oil drilling platforms and geological exploration
Inertial measurement units
Motion monitoring equipment

Technical Specifications

Parameter	GSQAT160	GSQAT185
Power Supply Parameters
Power Voltage	12.5~15.5VDC	12.5~15.5VDC
Power 25°C	180mW	180mW
Supply current	6mA	6mA
Product Performance
Size	25.4mm×25.4mm×18.6mm	25.4mm×25.4mm×18.6mm
Bias	<20 mg	<20 mg
Bias stability	1mg	1.5mg
Bias temperature sensitivity	200ug/°C	200ug/°C
Bias repeatability	1mg	1.5mg
Scale factor	2.75 mA/g ± 1.8%	2.75 mA/g ± 1.8%
Scale factor temperature sensitivity	800ppm/°C	1000ppm/°C
Second order nonlinear coefficient	≤200μg/g²	≤300μg/g²
Second order nonlinearity coefficient repeatability	≤150μg/g²	≤200μg/g²
Scale factor repeatability	300ppm	500ppm
Cross coupling coefficient	<3 mrad	<3 mrad
Threshold	<5 μg	<5 μg
Resolution	<5 μg	<5 μg
Bandwidth	<200 Hz	<200 Hz
Weight	≤55g	≤55g
Range	±20 g	±20 g
Environmental Specifications
Operating temperature	0°C～+160°C	0°C～+185°C
Storage temperature	0°C～+175°C	0°C～+200°C
Random vibration	20 grms	20 grms
Shock	2000g	2000g

Dimensions
