GSRBA500D Quartz Flexible Accelerometer with ±70g Range, Small Size 22mm×22mm×14mm, and High Reliability for Aerospace and Applications

GSRBA500D Quartz Flexible Accelerometer with ±70g Range, Small Size 22mm×22mm×14mm, and High Reliability for Aerospace and Applications

±70g range Quartz Flexible Accelerometer

Small Size Accelerometer Sensor

High Precision Digital Output Accelerometer

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

CE

Model Number:

GSRBA500D

Contact Us
Request A Quote
GSRBA500D Quartz Flexible Accelerometer with ±70g Range, Small Size 22mm×22mm×14mm, and High Reliability for Aerospace and Applications
Product Details
Range:
±70g
Bias Repeatability:
≤100ug
Bias Temperature Sensitivity:
100ug/°C
Bias Stability:
≤100ug
Bias:
0g±2g
Size:
22mm×22mm×14mm
Highlight:

±70g range Quartz Flexible Accelerometer

,

Small Size Accelerometer Sensor

,

High Precision Digital Output Accelerometer

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price KSINS010C Laser Strapdown Inertial Navigation System with 0.5nmile/h Position Accuracy <0.003° Pitch & Roll Accuracy and <5min Initialization Time online

KSINS010C Laser Strapdown Inertial Navigation System with 0.5nmile/h Position Accuracy <0.003° Pitch & Roll Accuracy and <5min Initialization Time

Get Best Price
Good price GSRBA500D Quartz Flexible Accelerometer with ±70g Range, Small Size 22mm×22mm×14mm, and High Reliability for Aerospace and Applications online

GSRBA500D Quartz Flexible Accelerometer with ±70g Range, Small Size 22mm×22mm×14mm, and High Reliability for Aerospace and Applications

Get Best Price
Good price GSGYR312F Three Axis Fiber Optic Gyroscope with Digital Output, Instant Start, and Low Bias Magnetic Sensitivity online

GSGYR312F Three Axis Fiber Optic Gyroscope with Digital Output, Instant Start, and Low Bias Magnetic Sensitivity

Get Best Price
Good price GSACC102M MEMS Accelerometer with ±10 g Range ≤ 1500 Hz Bandwidth and 100±30 mV/g Sensitivity for Vibration Monitoring online

GSACC102M MEMS Accelerometer with ±10 g Range ≤ 1500 Hz Bandwidth and 100±30 mV/g Sensitivity for Vibration Monitoring

Get Best Price
Contact Us
Contact Now
Product Description

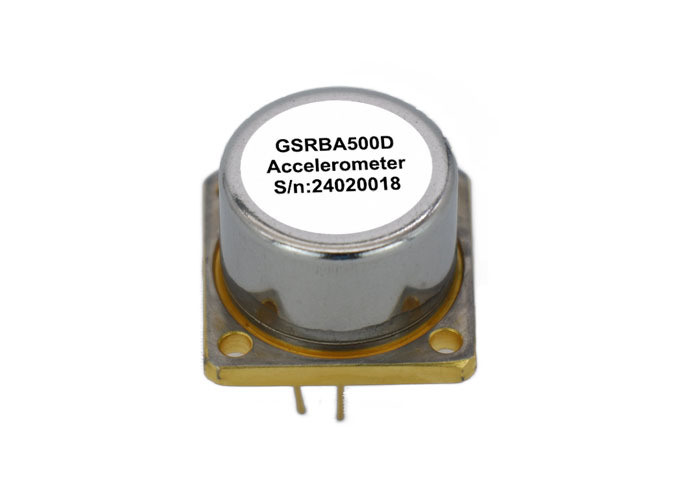

GSRBA500D Quartz Flexible Accelerometer
Product Overview

The GSRBA500D quartz vibration beam accelerometer is a new solid-state digital output acceleration sensor featuring large range, compact size, high precision, low power consumption, rapid start-up time, shock vibration resistance, and exceptional reliability. This quartz vibration beam accelerometer offers significant advantages over traditional analog output accelerometers.

Key Features
  • Digital output
  • Wide bandwidth
  • Low power consumption
  • High reliability
  • Wide operating temperature range
  • Small size
  • Fast start-up
Applications
  • Spaceflight
  • Aviation
  • Navigation
  • Weapons
  • Vehicles
GSRBA500D Quartz Flexible Accelerometer with ±70g Range, Small Size 22mm×22mm×14mm, and High Reliability for Aerospace and Applications 0
Technical Specifications
Parameter GSRBA500D
Power Supply Parameters
Power Voltage 14~16VDC
Power @25°C 75mW @15VDC
Supply Current 5mA
Product Performance
Range ±70g
Size 22mm×22mm×14mm
Bias 0g±2g
Bias Stability ≤100μg
Bias Temperature Sensitivity 100μg/°C
Bias Repeatability ≤100μg
Scale Factor 56Hz/g±5Hz/g
Scale Factor Temperature Sensitivity 500ppm/°C
Second Order Nonlinear Coefficient ≤80μg/g²
Second Order Nonlinearity Coefficient Repeatability ≤50μg/g²
Scale Factor Repeatability ≤50ppm
Temperature Sensor 40KHz±2%(0.3Hz/°C)@25°C
Noise <10μg
Threshold ≤1×10⁻⁵g
Bandwidth ≥400Hz
Weight ≤23g
Environmental Specifications
Operating Temperature -45°C～+85°C
Storage Temperature -55°C～100°C
Random Vibration 5grms (20Hz～2000Hz)
Shock 200g
