GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications

GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications

±70g range Quartz Flexible Accelerometer

Small Size Accelerometer Sensor

High Precision Digital Output Accelerometer

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

CE

Model Number:

GSRBA500D

Contact Us
Request A Quote
GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications
Product Details
Range:
±70g
Bias Repeatability:
≤100ug
Bias Temperature Sensitivity:
100ug/°C
Bias Stability:
≤100ug
Bias:
0g±2g
Size:
22mm×22mm×14mm
Highlight:

±70g range Quartz Flexible Accelerometer

,

Small Size Accelerometer Sensor

,

High Precision Digital Output Accelerometer

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability online

Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability

Get Best Price
Good price GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s online

GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s

Get Best Price
Good price GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications online

GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications

Get Best Price
Good price GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg online

GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

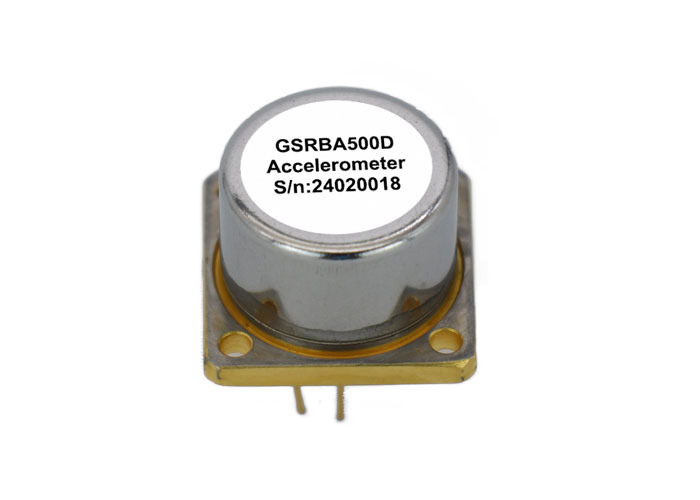

GSRBA500D Quartz Flexible Accelerometer
Product Introduction

The GSRBA500D quartz vibration beam accelerometer is a solid-state digital output acceleration sensor featuring large range, compact size, high precision, low power consumption, fast start-up time, shock vibration resistance, and exceptional reliability. This advanced design offers significant advantages over traditional analog output accelerometers.

GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications 0
Key Features
  • Digital output for precise measurements
  • Wide bandwidth for versatile applications
  • Low power consumption for energy efficiency
  • High reliability in demanding environments
  • Wide operating temperature range (-45°C to +85°C)
  • Compact dimensions (22mm×22mm×14mm)
  • Fast start-up time for immediate operation
Applications
  • Spaceflight systems
  • Aviation instrumentation
  • Navigation equipment
  • Military weapon systems
  • Vehicle monitoring and control
Technical Specifications
Power Supply Parameters
Power Voltage 14~16VDC
Power @25°C 75mW @15VDC
Supply Current 5mA
Product Performance
Range ±70g
Size 22mm×22mm×14mm
Bias 0g±2g
Bias Stability ≤100μg
Bias Temperature Sensitivity 100μg/°C
Bias Repeatability ≤100μg
Scale Factor 56Hz/g±5Hz/g
Scale Factor Temperature Sensitivity 500ppm/°C
Second Order Nonlinear Coefficient ≤80μg/g²
Second Order Nonlinearity Coefficient Repeatability ≤50μg/g²
Scale Factor Repeatability ≤50ppm
Temperature Sensor 40KHz±2%(0.3Hz/°C)@25°C
Noise <10μg
Threshold ≤1×10⁻⁵g
Bandwidth ≥400Hz
Weight ≤23g
Environmental Specifications
Operating Temperature -45°C～+85°C
Storage Temperature -55°C～100°C
Random Vibration 5grms (20Hz～2000Hz)
Shock 200g
