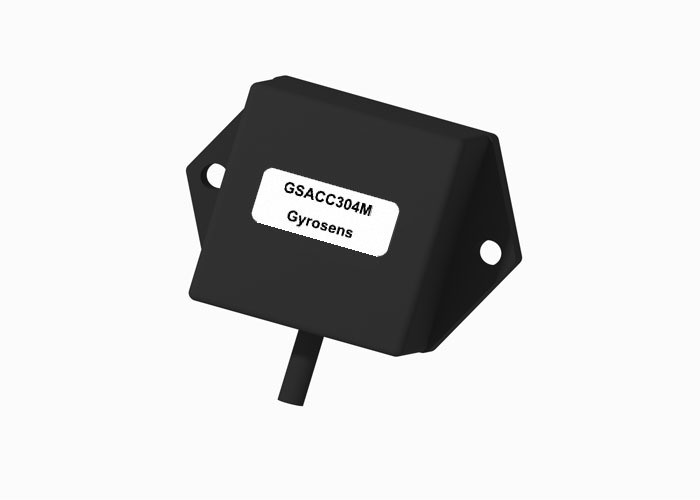

Name: GSACC304M MEMS Accelerometer with High Frequency Response Small Size and Light Weight for Vibration Monitoring
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSACC304M
Price: 478.00 USD
Availability: InStock

Home > Products > Accelerometer Sensor >

GSACC304M MEMS Accelerometer with High Frequency Response Small Size and Light Weight for Vibration Monitoring

High Frequency Response MEMS Accelerometer

Small Size Accelerometer Sensor

Light Weight GSACC304M Accelerometer

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSACC304M

Request A Quote

Product Details

Range:

±20g

Nonlinear (%FS):

≤ 0.5% Fs

Resolution (°/s):

≤ 0.01 G

Sensitivity:

50±5 MV / G

Bandwidth:

≤ 10k Hz

Highlight:

High Frequency Response MEMS Accelerometer

Small Size Accelerometer Sensor

Light Weight GSACC304M Accelerometer

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability

Get Best Price

GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s

Get Best Price

GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications

Get Best Price

GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg

Get Best Price

Contact Now

Product Description

GSACC304M MEMS Accelerometers

Key Features

Analog voltage output
Wide measuring range
High frequency response, up to 22 KHz
Compact size and lightweight design
Excellent impact resistance and vibration performance

Applications

Power conductor breeze vibration monitoring
Mechanical vibration monitoring equipment

Technical Specifications

Type: GSACC304M
Electrical Characteristics
Input voltage	12±0.5 VDC
Input current	≤12 mA
Output Mode	0.5~4.5V
Performance Index
Axial direction	X \| Y \| Z
Range	±20g
Bandwidth	≤ 10k Hz
Sensitivity	50±5 mV / g
Resolution (°/s)	≤ 0.01 g
Nonlinear (%FS)	≤ 0.5% Fs
Bias	1.5±0.1 V
Start-up time (ms)	≤1 s
Environmental Characteristics
Temperature (°C)	-40℃~+70℃
Storage Temperature	-40℃~+125℃
Resistant to shock	4000g
Physical Characteristics
Weight (g)	40g
Dimensions	40×26×15 mm

Dimensions

Note: Manual content will be updated from time to time. Please contact the supplier for the latest product manual.
