Name: KWD200 Ultrasonic Underwater Communications Sensor with 50m-100m Range RS485 MODBUS Protocol for Submersible and Marine Monitoring
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWD200
Price: 1,000.10 USD
Availability: InStock

Home > Products > Ultrasonic Transducer Sensor >

KWD200 Ultrasonic Underwater Communications Sensor with 50m-100m Range RS485 MODBUS Protocol for Submersible and Marine Monitoring

50 meters communication distance Ultrasonic Underwater Communications Sensor

100 meters communication distance Underwater Acoustic Sensor

RS485 communication method KWD200 Sensor

Place of Origin:

china

Brand Name:

kacise

Certification:

Model Number:

KWD200

Request A Quote

Product Details

Communication Distance:

50 Meters, 100 Meters

Communication Method:

RS485, MODBUS Protocol

Bit Error Rate:

≤8% (related To The Test Environment)

Send Information:

1-12 Characters

Response Rate:

3 Seconds

Underwater Acoustic Communication Rate:

96bps

Highlight:

50 meters communication distance Ultrasonic Underwater Communications Sensor

100 meters communication distance Underwater Acoustic Sensor

RS485 communication method KWD200 Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

Supply Ability

1000 Piece/Pieces per Week negotiable

Split-Type Ten-Beam Underwater Obstacle Avoidance Sensor with 0.2-10m Detection Range 10.8VDC-26.4VDC Operating Voltage and 1%-3% Accuracy

Get Best Price

Six-Beam Underwater Obstacle Avoidance Sensor with 20m Range ±0.5% Accuracy and 150m Water Pressure Resistance

Get Best Price

Five-Beam Underwater Obstacle Avoidance Sensor with 10.8VDC to 26VDC Power Supply ±0.5% Measurement Accuracy and <20cm Blind Zone

Get Best Price

Four-Beam Underwater Obstacle Avoidance Sensor with 15cm Blind Zone 10.8-26VDC Power Supply and 3m Range

Get Best Price

Contact Now

Product Description

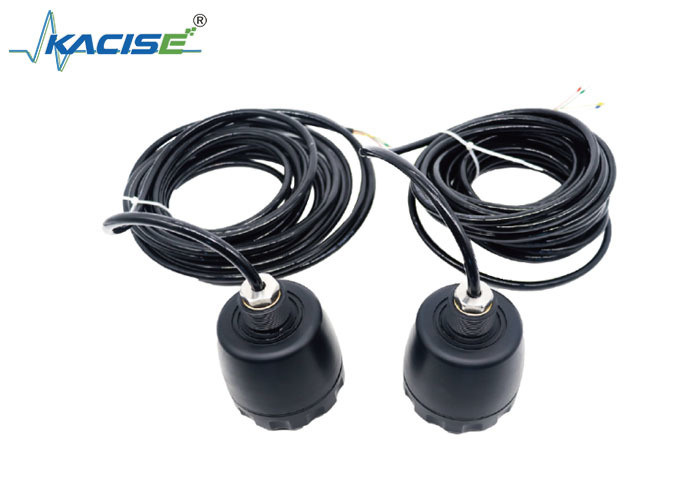

KWD200 Ultrasonic Underwater Communications Sensor

Product Introduction

This advanced ultrasonic sensor enables reliable underwater communication for various marine applications. It utilizes ultrasonic wave technology to facilitate data transmission in challenging underwater environments.

Key Applications

Underwater unmanned submersible communication
Underwater short command transmission
Marine sensor network transmission
Marine environment monitoring network transmission

Product Features

Power supply: battery (12V±10%)
Communication distance: 100m
Pressure resistance: 100m water depth
Working temperature: 0℃～60℃ (no freezing)
Protection grade: IP68
Case material: ABS

Technical Specifications

Specification	Details
Communication distance	50 meters, 100 meters
Underwater acoustic communication rate	96bps
Response rate	3 seconds
Send information	1-12 characters
Bit error rate	≤8% (related to the test environment)
Communication method	RS485, MODBUS protocol
Voltage resistance	100 meters water depth
Usage environment	Water depth greater than 2 meters, away from motors and frequency conversion equipment
Power supply	Battery (12V ± 10%), receiving power 0.9W/transmitting power 5W
Protection level	IP68
Operating temperature	0℃～60℃
Interface thread size	M33*1.5

Storage Requirements

Storage environment temperature: -20~+60℃
Storage environment pressure: normal pressure
Storage environment humidity: ≤90%RH (non-condensing)
Environment requirements: No corrosive liquid, gas or steam, no vibration

Wiring Definition

Red: 12V+
Green: 12V-
White: 485A
Yellow: 485B

Usage Precautions

During the test wiring process, the 485 line cannot touch and short-circuit the power line. If the short-circuit burns out, the product cannot be repaired.

Application Fields

This sensor is ideal for marine research, underwater exploration, offshore operations, and any application requiring reliable underwater communication.
