Home > Products > Ultrasonic Transducer Sensor >
Split-Type Ten-Beam Underwater Obstacle Avoidance Sensor with 0.2-10m Detection Range 10.8VDC-26.4VDC Operating Voltage and 1%-3% Accuracy

Split-Type Ten-Beam Underwater Obstacle Avoidance Sensor with 0.2-10m Detection Range 10.8VDC-26.4VDC Operating Voltage and 1%-3% Accuracy

0.2-10m Detection Range Underwater Obstacle Avoidance Sensor

10.8VDC-26.4VDC Operating Voltage Ultrasonic Transducer Sensor

1%-3% Accuracy Split-Type Ten-Beam Sensor

Place of Origin:

china

Brand Name:

kacise

Certification:

ce

Model Number:

Split-Type Ten-Beam

Contact Us
Request A Quote
Split-Type Ten-Beam Underwater Obstacle Avoidance Sensor with 0.2-10m Detection Range 10.8VDC-26.4VDC Operating Voltage and 1%-3% Accuracy
Product Details
Detection Range:
0.2-10m
Operating Voltage:
10.8VDC-26.4VDC, Reverse Polarity Protection
Output Type:
RS485/TTL
Accuracy:
1%-3
Rated Operating Current:
≤100mA (24V) %
Highlight:

0.2-10m Detection Range Underwater Obstacle Avoidance Sensor

,

10.8VDC-26.4VDC Operating Voltage Ultrasonic Transducer Sensor

,

1%-3% Accuracy Split-Type Ten-Beam Sensor

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Split-Type Ten-Beam Underwater Obstacle Avoidance Sensor with 0.2-10m Detection Range 10.8VDC-26.4VDC Operating Voltage and 1%-3% Accuracy online

Split-Type Ten-Beam Underwater Obstacle Avoidance Sensor with 0.2-10m Detection Range 10.8VDC-26.4VDC Operating Voltage and 1%-3% Accuracy

Get Best Price
Good price Six-Beam Underwater Obstacle Avoidance Sensor with 20m Range ±0.5% Accuracy and 150m Water Pressure Resistance online

Six-Beam Underwater Obstacle Avoidance Sensor with 20m Range ±0.5% Accuracy and 150m Water Pressure Resistance

Get Best Price
Good price Five-Beam Underwater Obstacle Avoidance Sensor with 10.8VDC to 26VDC Power Supply ±0.5% Measurement Accuracy and <20cm Blind Zone online

Five-Beam Underwater Obstacle Avoidance Sensor with 10.8VDC to 26VDC Power Supply ±0.5% Measurement Accuracy and <20cm Blind Zone

Get Best Price
Good price Four-Beam Underwater Obstacle Avoidance Sensor with 15cm Blind Zone 10.8-26VDC Power Supply and 3m Range online

Four-Beam Underwater Obstacle Avoidance Sensor with 15cm Blind Zone 10.8-26VDC Power Supply and 3m Range

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

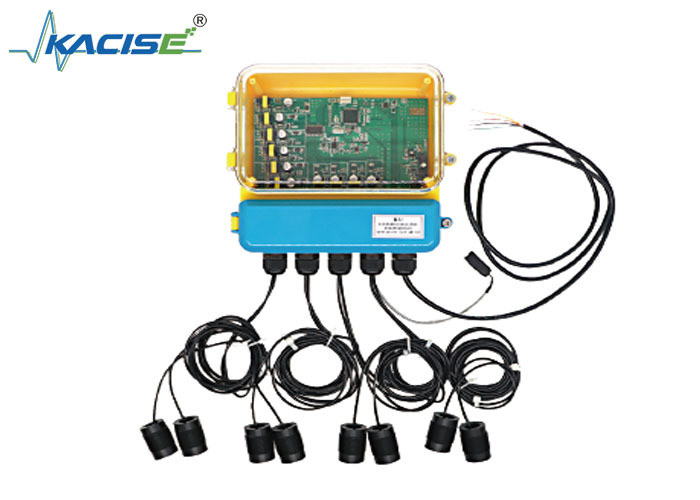

Split-Type Ten-Beam Underwater Obstacle Avoidance Sensor
Product Overview

The ten-beam underwater ultrasonic ranging sensor utilizes ultrasonic self-transmission and self-reception technology. Its multi-transmission, one-reception round-robin test method enables precise distance measurement in multiple directions, providing reliable underwater obstacle avoidance and ranging capabilities.

Split-Type Ten-Beam Underwater Obstacle Avoidance Sensor with 0.2-10m Detection Range 10.8VDC-26.4VDC Operating Voltage and 1%-3% Accuracy 0
Key Features
  • Multi-directional linkage testing for comprehensive coverage
  • Data storage in internal chip registers
  • MODBUS protocol communication with host computer
  • Adjustable passive and active upload modes
Technical Specifications
General Parameters
Detection range 0.2-10m
Electrical Characteristics
Operating voltage 10.8VDC-26.4VDC (with reverse polarity protection)
Output Characteristics
Output type RS485/TTL
Rated operating current ≤100mA (at 24V)
Accuracy 1%-3%
Environmental Requirements
Operating temperature -20°C to 60°C
Storage temperature -20°C to 60°C
Application Fields
Split-Type Ten-Beam Underwater Obstacle Avoidance Sensor with 0.2-10m Detection Range 10.8VDC-26.4VDC Operating Voltage and 1%-3% Accuracy 1
