| 3SE5234-0QV40-1AE2 |

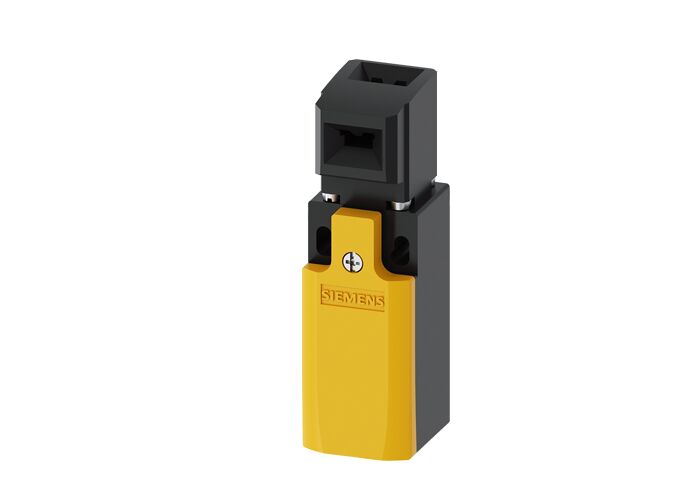

Safety position switch with separate actuator, Plastic enclosure 31 mm according to EN 50047, 1 NO/2 NC slow-action contacts, 5 directions of approach, with M12 connector (5-pole), Pin assignment: Pin1=21, Pin4=22, Pin2=31, Pin5=32, Suitable for connection to all SIMATIC ET200 compact block I/O modules. Matching separate actuator 3SE5000-0AV../W.. must be ordered separately. |
| 3SE5232-0RV40-1AJ0 |
Safety position switch with separate actuator, Plastic enclosure 31 mm according to EN 50047 (with increased corrosion protection), Device connection: 1 x (M20 x 1.5), 1 NO/1 NC slow-action contacts (functional at -40 °C), Actuator 3SE5000-0AV0. must be ordered separately. |
| 3SE5232-0QV40-1AA1 |
Safety position switch with separate actuator, Plastic enclosure 31 mm, Device connection: 1 x (M20 x 1.5), Slow-action contacts (2 NC/1 NO), 5 directions of approach, Pull-out force: 30 N, Matching separate actuator 3SE5000-0AV0. must be ordered separately. |
| 3SE5232-0QV40 |
Safety position switch with separate actuator, Plastic enclosure 31 mm, Device connection: 1 x (M20 x 1.5), Slow-action contacts (2 NC/1 NO), 5 directions of approach, Matching separate actuator 3SE5000-0AV0. must be ordered separately. |
| 3SE5232-1QV40 |
Safety position switch with separate actuator, Plastic enclosure 31 mm, Device connection: 1 x (M20 x 1.5), Slow-action contacts (1 NO/2 NC), with 2 LEDs (yellow/green, 24 V DC), 5 directions of approach, Matching separate actuator 3SE5000-0AV0. must be ordered separately. |
| 3SE5234-0QV40-1AE0 |
Safety position switch with separate actuator, Plastic enclosure 31 mm, Device connection: 1 x (M20 x 1.5) with M12 connector plug (4-pole), Slow-action contacts (2 NC), 5 directions of approach, Matching separate actuator 3SE5000-0AV0 must be ordered separately. |
| 3SE5234-0RV40-1AC4 |
Safety position switch with separate actuator, Plastic enclosure 31 mm according to EN 50047, 1 NO/1 NC slow-action contacts, 5 directions of approach, with M12 connector (4-pole), Pin assignment: Pin1=21, Pin2=22, Pin3=13, Pin4=14, for max. 250 V and 4 A, Matching separate actuator 3SE5000-0AV0. must be ordered separately. |
| 3SE5234-1RV40-1AF3 |
Safety position switch with separate actuator, Plastic enclosure 31 mm according to EN 50047, 1 NO/1 NC slow-action contacts, with M12 plug (5-pole, fixed) and 2 LEDs (yellow/green, 24 V DC), 5 directions of approach, Pin assignment: Pin1=21, Pin2=22, Pin3=14 and LED green, Pin4=13 and LED yellow, Pin5=ground LED, Matching separate actuator 3SE5000-0AV0. must be ordered separately. |
| 3SE5232-0RV40 |
Safety position switch with separate actuator, Plastic enclosure 31 mm, Device connection: 1 x (M20 x 1.5), Slow-action contacts (1 NC/1 NO), 5 directions of approach, Matching separate actuator 3SE5000-0AV0./-0AW. must be ordered separately. |
| 3SE5232-1RV40 |
Safety position switch with separate actuator, Plastic enclosure 31 mm, Device connection: 1 x (M20 x 1.5), Slow-action contacts (1 NO/1 NC), 2x LED (yellow/green, 24 V DC), 5 directions of approach, Matching separate actuator 3SE5000-0AV0./-0AW. must be ordered separately. |
| 3SE5132-0QV20 |
Safety position switch with separate actuator, Plastic enclosure 40 mm, Device connection: 1 x (M20 x 1.5), Slow-action contacts (1 NO + 2 NC), 5 directions of approach, Matching separate actuator 3SE5000-0AV0. must be ordered separately. |
| 3SE5132-1QV20 |
Safety position switch with separate actuator, Plastic enclosure 40 mm, Device connection: 1 x (M20 x 1.5), Slow-action contacts (1 NO + 2 NC), with 2 LEDs (yellow/green, 24 V DC), 5 directions of approach, Matching separate actuator 3SE5000-0AV0. must be ordered separately. |
| 3SE5132-3QV20 |
Safety position switch with separate actuator, Plastic enclosure 40 mm, Device connection: 1 x (M20 x 1.5), Slow-action contacts (1 NO + 2 NC), with 2 LEDs (yellow/green, 230 V AC), 5 directions of approach, Matching separate actuator 3SE5000-0AV0. must be ordered separately. |
| 3SE5242-0RV40-1AA1 |
Safety position switch with separate actuator, Plastic enclosure 50 mm, Device connection: 2 x (M20 x 1.5), Slow-action contacts (1 NO + 1 NC), 5 directions of approach, Pull-out force: 30 N, Matching separate actuator 3SE5000-0AV0. must be ordered separately. |
| 3SE5242-0QV40 |
Safety position switch with separate actuator, Plastic enclosure 50 mm, Device connection: 2 x (M20 x 1.5), Slow-action contacts (1 NO + 2 NC), 5 directions of approach, Matching separate actuator 3SE5000-0AV0. must be ordered separately. |
| 3SE5242-1QV40 |
Safety position switch with separate actuator, Plastic enclosure 50 mm, Device connection: 2 x (M20 x 1.5), Slow-action contacts (1 NO + 2 NC), with 2 LEDs (yellow/green, 24 V DC), 5 directions of approach, Matching separate actuator 3SE5000-0AV0. must be ordered separately. |
| 3SE5242-3QV40 |
Safety position switch with separate actuator, Plastic enclosure 50 mm, Device connection: 2 x (M20 x 1.5), Slow-action contacts (1 NO + 2 NC), with 2 LEDs (yellow/green, 115-230 V AC), 5 directions of approach, Matching separate actuator 3SE5000-0AV0. must be ordered separately. |
