Name: 100 FW Series
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 100 FW Series
Price: 1,000.10 USD
Availability: InStock

Home > Products > Ultrasonic Transducer Sensor >

100 FW Series

100 FW ultrasonic transducer sensor

high-frequency ultrasonic sensor

industrial ultrasonic transducer with warranty

Brand Name:

honeywell

Model Number:

100 FW Series

Request A Quote

Product Details

Load Current:

120 MA, 50 MA Lamp

Description:

One-piece 5/8 In Proximity Sensor

Technology:

ECKO

Target Material:

All Metals

Highlight:

100 FW ultrasonic transducer sensor

high-frequency ultrasonic sensor

industrial ultrasonic transducer with warranty

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

Supply Ability

1000 Piece/Pieces per Week negotiable

SIRIUS 3SE5, 3SE2 mechanical safety switches

Get Best Price

Contact Now

Product Description

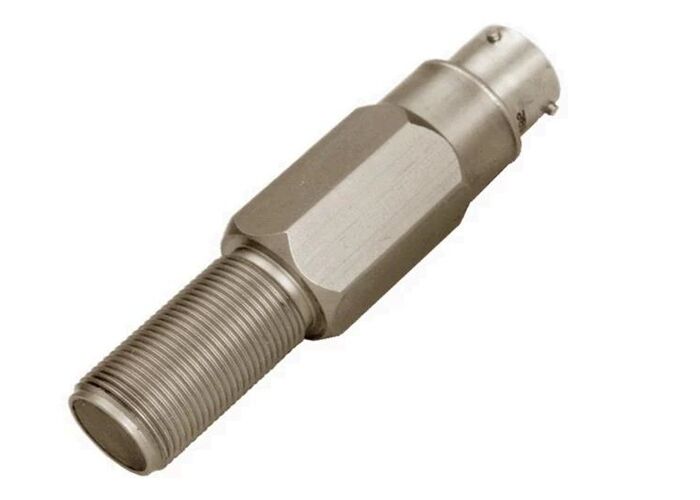

100 FW Series Proximity Sensor

Environment-proof self-contained proximity sensor enclosed in a rugged stainless steel housing, designed to meet the requirements of aerospace, ordnance, marine, mass transit and high performance industrial equipment. Operation by the Eddy Current Killed Oscillator (ECKO) principle, which is used to detect metal objects passing in front of the sensing face. Once a target metal is detected, a trigger signal is produced which is then passed through the output conditioning circuitry to give a high or low output, depending on the sensor application.

Technical Specifications

Parameter	100 FW
Description	One-piece 5/8 in proximity sensor
Technology	ECKO
Target material	All metals
Load current	120 mA, 50 mA lamp
Supply current	20 mA max. @ 25 °C
Supply voltage	18 Vdc to 32 Vdc
Sensing face	Shielded, unshielded
Housing material	Stainless steel
Guaranteed actuation distance	1 mm to 1.99 mm [0.039 in to 0.0783 in]; 5 mm to 10 mm [0.197 in to 0.394 in]
Operating frequency	-
Operating temperature range	-55°C to 125°C [-67°F to 257°F]
Output type	Normally open, current sinking
Approvals	FM Class 1, Division 2, Groups A, B, C, D
Measurements	Sensing face: 5/8 in * 63.5 mm L [2.5 in]

Key Features

All metal sensing capability
Shielded three-wire DC sinking (NPN)
High level of electronics protection
Lead wire or connector termination options

Available Part Numbers

Part Number	Description
103FW12-R1	Proximity Sensor
103FW41-R1	Proximity Sensor
103FW5-4	Proximity Sensor
112FW12-4	100FW series, Shielded 3-wire DC Sinking (NPN), N.O. proximity sensor, 0.625 in cylindrical housing, 20 ga, MIL-W-168784 wire. Nominal sensing distance of 2, 41 mm ± 0, 51 mm [.09 in ± .02 in]
112FW12-R1	100FW series, Shielded 3-wire DC Sinking (NPN), N.O. proximity sensor, 0.625 in cylindrical housing, Connector version mates with MS3116-10-6S. Nominal sensing distance of 2, 41 mm ± 0, 51 mm [.09 in ± .02 in]
112FW127-R1	Speed and Position
112FW127-R1S	Speed and Position
113FW41-R2	Proximity Sensor
114FW128-4	Proximity Sensor
122FW12-4	Proximity Sensor
122FW12-R1	Proximity Sensor
172FW121-R5	Switch Proximity
172FW121-R6	Switch Proximity
