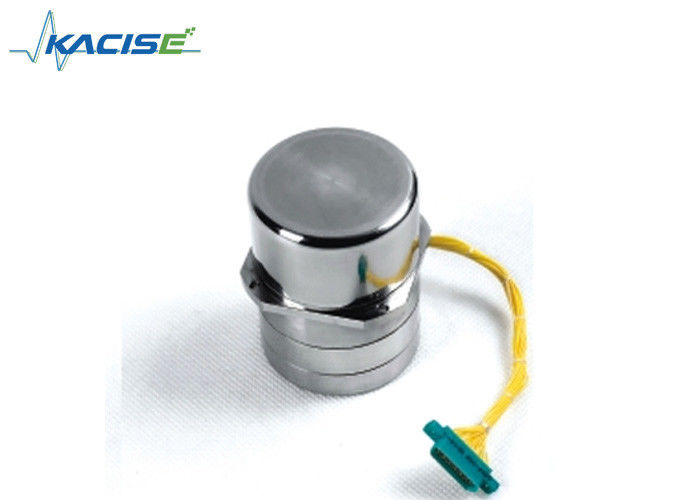

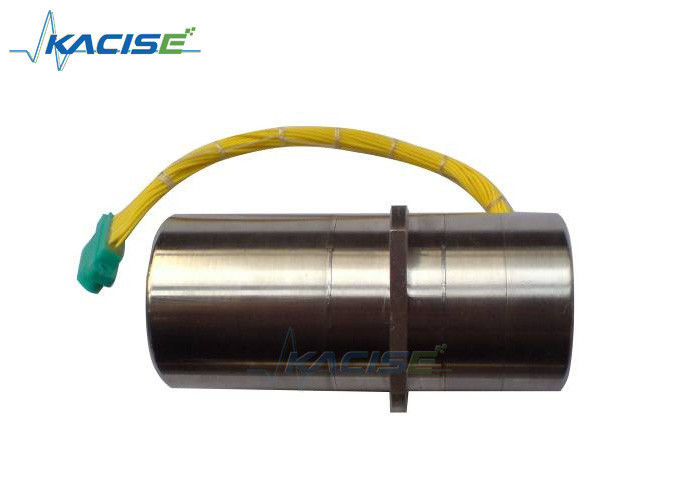

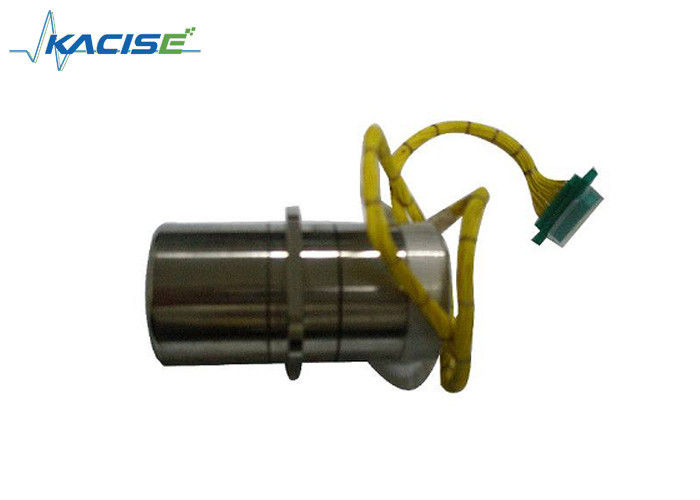

Light Weight Small Size High-precision Kacise Flexible Dynamically Tuned Gyroscope for Aerospace

Feature

Light weight
Small size
Long service life
Wide dynamic range
High reliability
Wide application and etc.

Introduction

KTG-30 has been used in ship navigation, artillery and other systems to quickly find north.

Parameter

Parameter	Spec.	Vaule	Unit
Power	Power(3 Phase)	20&500	V & Hz
Power	Power(1 Phase)	7&16000	V & Hz
performance	Random Drift	≤0.03	°/h
	Drift stability	≤0.2	°/h
	Non-linear	≤0.1	%FS
	Max tracking Rate	≥60	°/S
	Non-G-Sensitive Drift	≤12	°/h/g
	G-Sensitive Drift	≤3	°/h/g
	Band Width	≥60	Hz
	Torquer Scale Factor	≥670	°/h/mA
technological	Sync rate	10000	r/min
	Sync Time	≤25	S
	Output gradient	21±2	mV/`
	Primary torquer	50±3	Ω
	secondary torque	2±0.5	Ω
Physical	Weight	<130	g
	Dimensions	Φ29×53	mm
	Flange	30×30	mm
Working environment	Temperature	-30~85	℃
	Vibration	5	g
	Shock	≥50	g

Installation

Products should be installed to ensure that X (Y) axis and the measurement reference axis coincides, installation error should be less than 5 '.

Operation

Only products matching the appropriate power and locked loop circuit board in order to work properly, need circuit board, please explain in advance.
When the product under normal use, you should turn on the power to start the motor, about 30s, and then the on-lock loop, so that the products in closed loop state; shutdown, disconnect locked loop so that the product is in the open-loop operation, and then disconnect power supply.
Product energized, shut down in 40s, should avoid shaking the product, the installation process should be light, light up, the product non-collision, percussion.
Product in the use of the process is strictly prohibited to pull the plug.
Product in the use of the process, can`t short circuit between external power supply.
Abnormality occurs during use, should immediately turn off the power, fault isolation, if the product internal fault, the customer shall promptly notify my company, my company organized by the repair.

Dimension

Kacise Flexible Dynamically Tuned Gyroscope Lightweight For Aerospace 0

Connector definition

The socket type:J30J-15T (cable length160~175mm)

Pin No.	Function definition	Remark
1	Signal output of X-axis
2	GND	For Excitation power and signals
3	X-axis torque coil(the end)
4	A phase motor driver power	There-phase 20V, 500Hz
5	Sensor excitation power supply	Singal-phase7V, 16KHz
6	Signal output of Y-axis
7	Y-axis torque coil(the beginning)
8	B phase motor driver power	There-phase 20V, 500Hz
9	DC＋15V	Power for Preamplifier
10	DC－15V	Power for Preamplifier
11	X-axis torque coil(the beginning)
12	NULL
13	NULL
14	C phase motor driver power	There-phase 20V, 500Hz
15	Y-axis torque coil(The end)

NOTE: The same applies to J30J-21T, if use other socket, please explain in advance.
