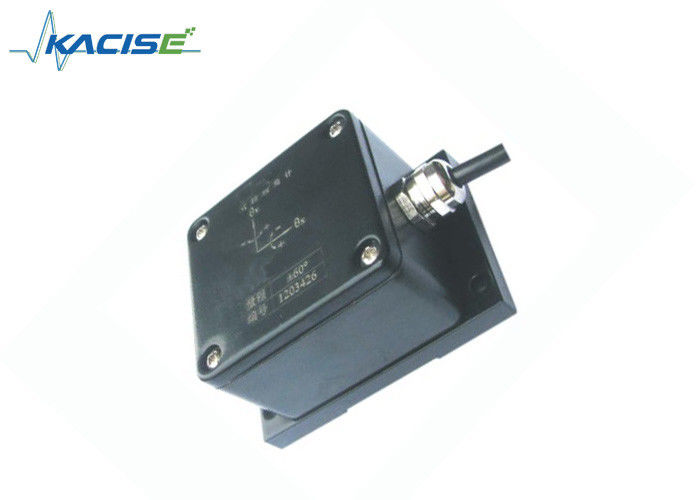

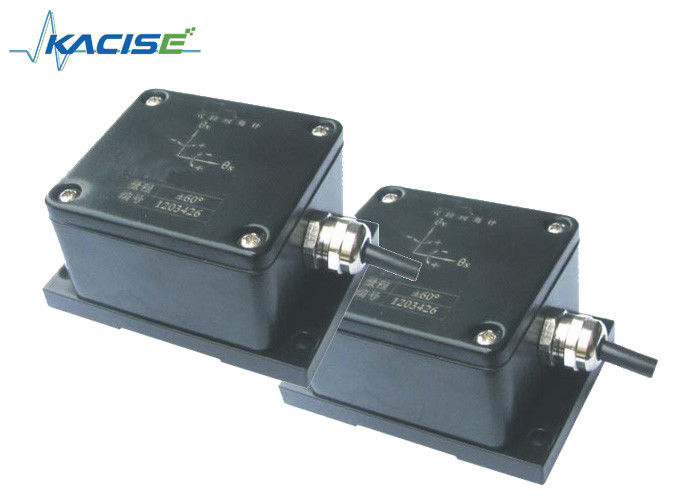

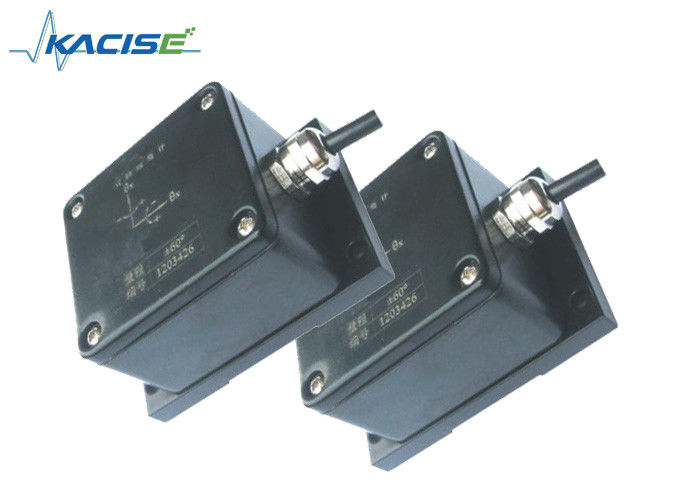

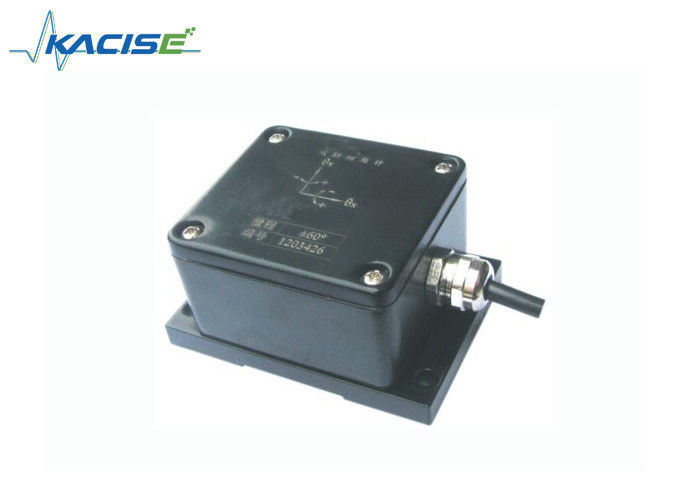

Resolution<0.1° AHRS Mems Gyroscope Sensor , 2 Axis Gyroscope Analog Voltage Output RS485 communication

Resolution<0.1° AHRS Mems Gyroscope Sensor , 2 Axis Gyroscope Analog Voltage Output RS485 communication

mems gyroscope sensor

gyroscope sensor module

Place of Origin:

Shaanxi, China (Mainland)

Brand Name:

KACISE

Model Number:

GX-ROB200

Contact Us
Request A Quote
Product Details
Range:
±30°, ±90°, ±180°, 0°~360°
Resolution:
<0.1°
Zero Error:
<0.3°
Zero Repeatability:
<0.15°
The Error After Removing Zero:
<0.35°
Bandwidth:
≥10 Hz
Highlight:

mems gyroscope sensor

,

gyroscope sensor module

Payment & Shipping Terms
Minimum Order Quantity
1 Piece/Pieces
Price
Negotiable
Packaging Details
carton or customers requests available
Delivery Time
5 working days after payment
Payment Terms
L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description

AHRS MEMS Inclinometer Sensor Gyroscope 2 Axis Analog Voltage Output Angle 232 Tilt Switch Voltage Transducer

Introduction


The GX-ROB200 Series MEMS inclinometer integrates a Microcontroller Unit (MCU) control system. The sensor undergoes a thorough calibration process across the entire temperature range, encompassing temperature compensation, zero calibration, scale factor calibration, and nonlinearity correction. These calibration steps are meticulously carried out to improve the accuracy of the inclinometer's measurements.



Features



  • Wide range of power supply voltage: DC8~30V
  • Wide range of working temperature: -45℃~+85℃
  • Resolution lower than 0.1°
  • Long-term stability lower than 0.3°
  • IP67 protection garde
  • High performance of anti-vibration>10000g
  • ±30°, ±90°, ±180°, 0°~360°(The vertical plane rotation is available)
  • Output: 0~5V, 4~20mA, RS232, RS485
  • Output protocol: The RS485/RS232 protocol can be customized according to customer’s requirements and there are Modbus-RTU for selection.



The main technical performance indicators



Performance indicators Range ±30°, ±90°, ±180°, 0°~360°
  Resolution <0.1°
  Zero error <0.3°
  Zero Repeatability <0.15°
  The error after removing zero <0.35°
  Bandwidth ≥10 Hz
  Data update frequency 5~100 Hz (can be chosen)
Electrical indicators Power supply DC 8~30 V
  Power <0.5 W
  Output 0~5V, 4~20mA, RS232, RS485
Ambient indicators Storage temperature -55℃~100℃
  Working temperature -45℃~85℃
  Shocking 10000 g
  Dimensions 55×37×24
  Weight <100



Dimension (unit: mm)



Material of casing Black matte aluminum oxide
Installation 4pcs of M4 screw
Connection 50cm direct cable


Resolution<0.1° AHRS Mems Gyroscope Sensor , 2 Axis Gyroscope Analog Voltage Output RS485 communication 0



Ordering information





Resolution<0.1° AHRS Mems Gyroscope Sensor , 2 Axis Gyroscope Analog Voltage Output RS485 communication 1

Application



1). Angle measuring instruments,

2). Level measurement platform,

3).Platform level control,

4). Measuring instruments and heavy mechanical stability,

5). Acceleration and motion measurement,

6). Automotive control, inertial navigation,

7). Seismic monitoring and other measurement systems



Company strength



1.Through the ISO9001: 2008 quality system certification, access to a number of patent certificates and software copyrights

2.And Xiamen University, Chinese Academy of Sciences Institute of Acoustics, 715, Ha Engineering underwater acoustic college and many other colleges and universities,Scientific research unit cooperation

3.Products in the Northwest Industrial Group, Hainan Airlines Co., Ltd., are widely used

4.China's largest sensor, flowmeter production base



workshop​


Resolution<0.1° AHRS Mems Gyroscope Sensor , 2 Axis Gyroscope Analog Voltage Output RS485 communication 2

Application



Resolution<0.1° AHRS Mems Gyroscope Sensor , 2 Axis Gyroscope Analog Voltage Output RS485 communication 3




Our Advantage



1.100% real photos--Detailed images, detailed description

2.7*24 hours online--Efficient service, Professional answers

3.After the receipt of the goods if the quality problems can be returned(Not artificial damage, Never used)

4. OEM is available; small quantities, mixed bulk orders are also welcome;

5. Payment: L/C, T/T, Paypal , Western Union, MoneyGram;

6. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.

7.The sale of products within one year warranty and life time maintenance.
