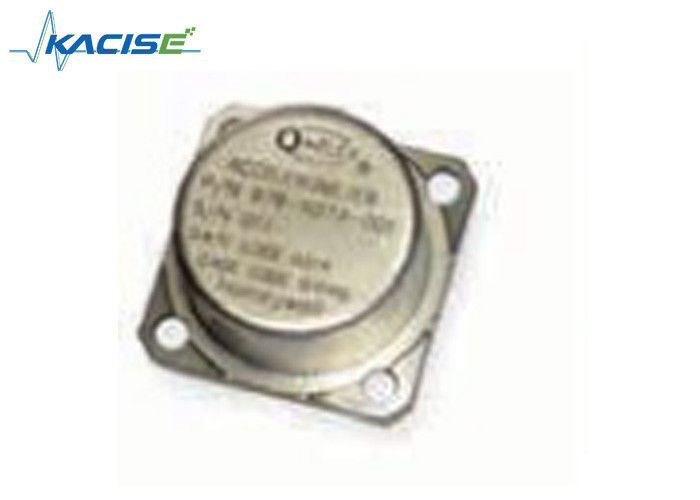

High Temperature Precision Accelerometer Compact Design For Energy Exploration

High Temperature Precision Accelerometer Compact Design For Energy Exploration

  • High Temperature Precision Accelerometer Compact Design For Energy Exploration
  • High Temperature Precision Accelerometer Compact Design For Energy Exploration
High Temperature Precision Accelerometer Compact Design For Energy Exploration
Product Details:
Place of Origin: China (Mainland)
Brand Name: Honeywell
Certification: certificate of explosion-proof, CE
Model Number: QAT
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Name: Accelerometer Bias: <20 Mg
Range: ±20 G Bandwidth: <20 Hz
Type: QAT
High Light:

linear acceleration sensor

,

triaxial acceleration sensor

Precision Accelerometers for Energy Exploration

Description

High Temperature Accelerometers Based On Q-Flex® Technology

Honeywell produces the QAT (160C and 185C versions) and the MiniQ (150C, 185C and 200C) high temperature accelerometers for down hole measurement-while-drilling and wireline applications. These accelerometers utilize Honeywell’s Q-FLEX® design,

the industry standard in Aerospace,

QAT 160 QAT 185 Mini Q

Features

ruggedized for high temperature use.

As with the entire Q-Flex accelerometer family, the QAT and MiniQ accelerometers feature a patented Q-Flex etched-quartz- flexure seismic system. An amorphous quartz proof-mass structure provides excellent bias, scale factor, and axis alignment stability.

The integral Q-Flex electronics develop an acceleration-proportional output current providing both static and dynamic acceleration measurements. By use of a customer-supplied output load resistor, appropriately scaled for the acceleration

range of the application, the output current can be converted into a voltage.

Honeywell’s energy accelerometers also include a current-output internal temperature sensor. By applying temperature compensating algorithms,

bias, scale factor, and axis misalignment performance are dramatically improved.

Robust design and quality assurance provides superior reliability

Technical Specifications

Performance Characteristics QAT Mini Q
Performance ±20 g ±20 g
Input Range <20 mg <15 mg
Bias <450 ?g <600 ?g
Residual Modeling Error 2.75 mA/g ± 1.8% 1.3 mA/g
Scale Factor <450 ppm <400 ppm
Residual Modeling Error Axis <3 mrad <6.5 mrad
Misalignment <400 ?rad
One-year Repeatability Vibration <±100 ?g/g2
Rectification (50-500 Hz) Threshold and <5 μg 1 μg
Resolution Bandwidth <200 Hz
Environmental
Vibration, Operating & Survival
Sine Vibration 30g peak,50 to 800Hz
Random Vibration 20 grms 30 grms
Shock
Operating 1000g 1000g
Survival (-40 to 70°) 2000g 2000g
Electrical
Input Voltage Quiescent ± 12.5 to ± 15.5 VDC ± 12 to ± 18 VDC
Current Quiescent 6 mA per supply
Power 180m Watts
Physical
Weight 55 grams <25 grams
Size 1.0 in. dia. x 0.73 in. high 0.79 in. dia. x 0.57 in. high
