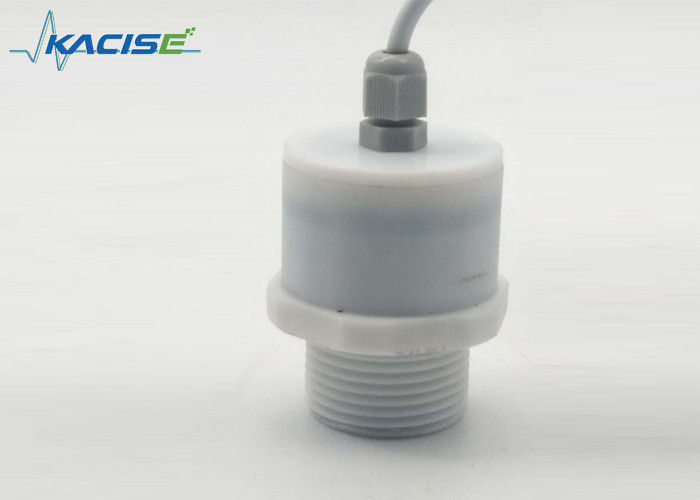

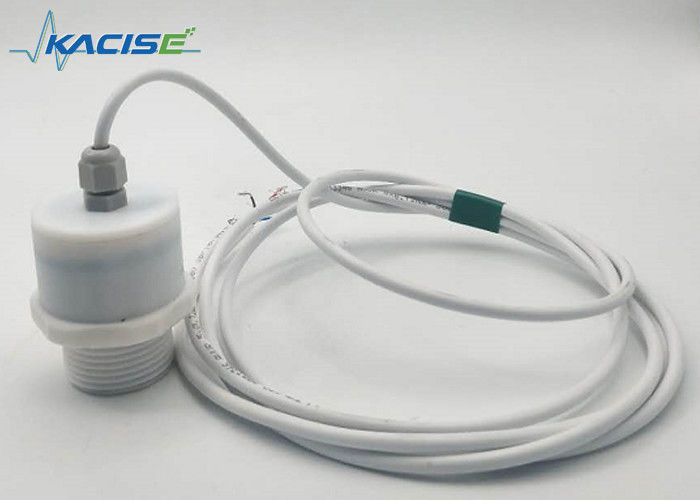

RS485 30VDC 3000mm IP67 12V Ultrasonic Level Sensor

RS485 30VDC 3000mm IP67 12V Ultrasonic Level Sensor

    • RS485 30VDC 3000mm IP67 12V Ultrasonic Level Sensor
    • RS485 30VDC 3000mm IP67 12V Ultrasonic Level Sensor
    • RS485 30VDC 3000mm IP67 12V Ultrasonic Level Sensor
  • RS485 30VDC 3000mm IP67 12V Ultrasonic Level Sensor

    Product Details:

    Place of Origin: China (Mainland)
    Brand Name: Kacise
    Model Number: KUS series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
    Delivery Time: 5-8 work days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1000 Pieces per Week
    Contact Now
    Detailed Product Description
    Product: Ultrasonic Distance Sensor Detection Range: 300mm~3000mm
    Transducer Frequency: Approx. 100kHz IP Grade: IP67
    Output: RS485 + 4-20mA/0-10V Input Power: 13~30VDC
    High Light:

    12V Ultrasonic Level Sensor

    ,

    IP67 Ultrasonic Level Sensor

    ,

    3000mm Ultrasonic Distance Sensor

    acise Best Sell PVDF Anti-Corrosive High Quality 4-20mA/0-5V With RS485 Output 12V Input Power Ultrasonic Level Sensor

    1. Parameter

    General specifications

    KUS550
    Sensing range 300... 3000 mm
    Adjustment range 300….3000mm
    Unusable area 0 ... 300 mm
    Standard target plate 100 mm x 100 mm
    Transducer frequency approx.100 kHz
    Response delay approx. 40 ms



    Electrical specifications


    Operating voltage UB 13 ... 30 V DC , ripple 10 %SS
    No-load supply current I0 ≤ 45 mA

    Output

    Output type

    1 Analog 0-10V output programmable.

    2 RS485 output.

    Rated operating current Ie 100 mA , short-circuit/overload protected
    Repeat accuracy ≤1 %
    Temperature influence ±1.5% of full-scale value

    Ambient conditions

    Ambient temperature -25…70℃(248...343K)
    Storage temperature -40…85℃(233...358K)


    Mechanical specifications


    Connection 5-wire cable
    Protection degree IP67
    Material Housing PVC PVDF PTFE




    Ambient conditions

    Ambient temperature -25…70℃(248...343K)
    Storage temperature -40…85℃(233...358K)

    Mechanical specifications

    Connection 5-wire cable
    Protection degree IP67
    Material Housing PVC PVDF PTFE




    2. Dimensions

    RS485 30VDC 3000mm IP67 12V Ultrasonic Level Sensor 0

    3. Electronic interface and signals definition

    RS485 30VDC 3000mm IP67 12V Ultrasonic Level Sensor 1



    4. Description of Sensor Functions

    Adjusting the analogue output.
    The analogue output can be programed as the user want. Such as working at switch output or working at liner output all the parameters can be set by the RS485 interface.
    There is 8 types of output functions can be programed.
    All the setting routine as follows,
    step 1 set one pointed distance by the RS485,
    step 2 set another pointed distance by the RS485.
    Step3 set the output type liner or switch, and set the related output options
    Step4 reboot the sensor.

    1. Window mode normally-open and liner mode positive slope output function.

    2. Window mode normally-closed and liner mode negative slope output function.

    3. Single switching point, normally-open function.

    4. Single switching point, normally-closed function.

    5. Single switch point with hysteresis gap normally-open function.

    6. Single switch point with hysteresis gap normally-closed function.

    7. Detection of object presence-normal open function.

    8. Detection of object presence-closed open function.

    Switching point, Setting distance only after power on. The internal clock can assure can't be changed after 5 minutes after power on. If want to change the switching point, the user can only setting the request distance after power restart.
    For the RS485 output type.
    There is 2 kinds of working style,
    One for auto measure, the sensor will measure the distance or level repeatedly, and the measurement period can be set by the UART. The measure result can be fetched every time.
    The other style is power save mode when the sensor is sleep, until the sensor received the inquiry command with pre-code. Communication protocol is Modus-RTU.
    For example the measure result can be read by access the register 0x101 by Modbus protocol.
    For more information please contact us for the software engineering guide.


    5. Installation conditions
    If the sensor is installed at the environment temperature fall below 0℃,It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.


    RS485 30VDC 3000mm IP67 12V Ultrasonic Level Sensor 2
