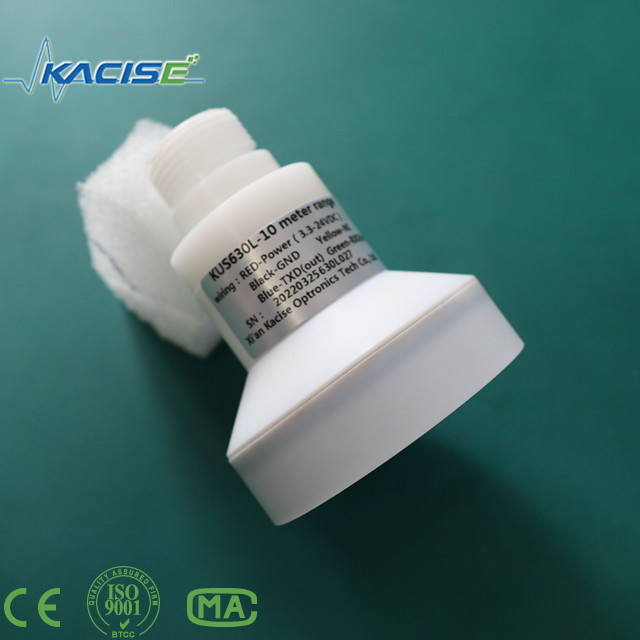

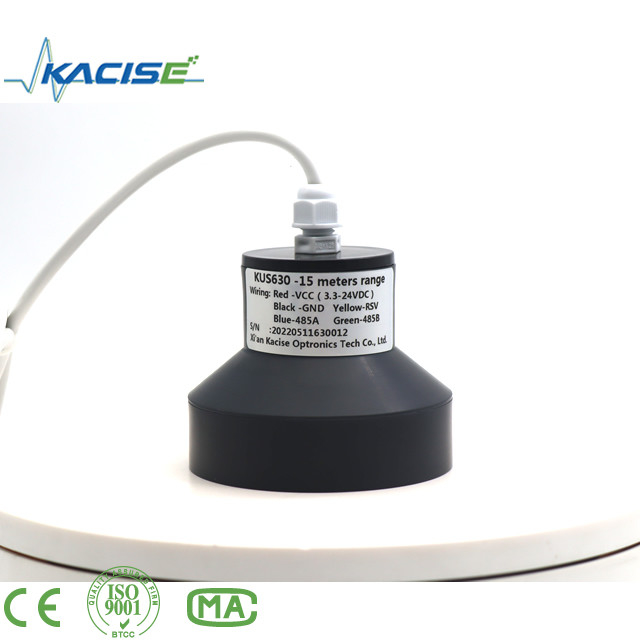

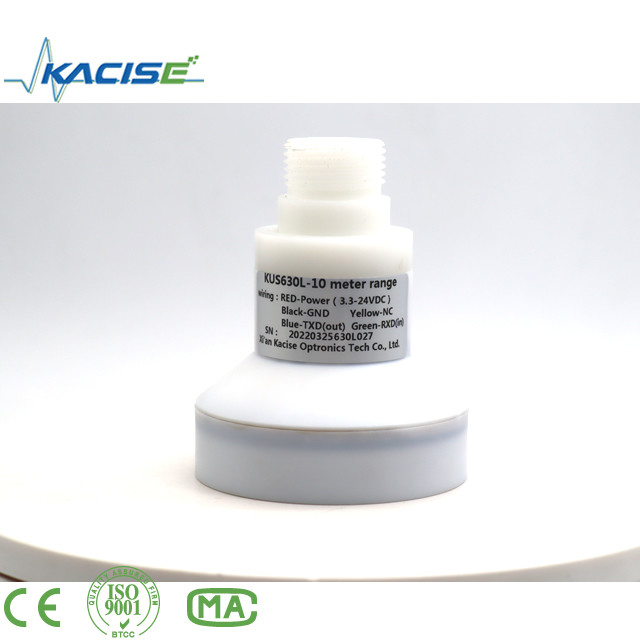

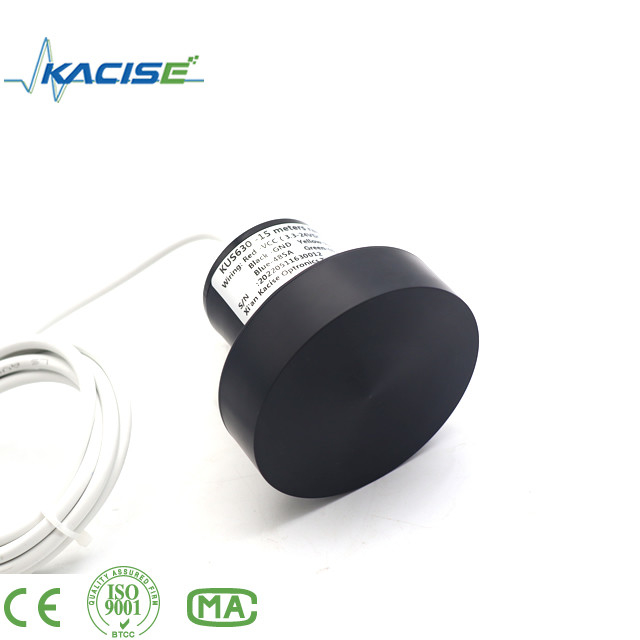

IP68 Ultrasonic Transducer Sensor 25khz For Autonomous Navigation

KUS630 Series Ultrasonic Transducer Sensor 24 VDC IP68 Protection

Dimensions

Unit in the diagram is mm

Electrical connections and signal definitions

Sensor function

analog

The analog output can be set through RS485, and the sensor can work in 8 modes. The specific reference is as follows:

Step 1: Connect to the host computer through serial port debugging assistant or modus debugging assistant.

Step 2, set a near point reference distance point.

Step 3, Set a far point reference point

Step 4, set the output voltage or current of the near-point reference point.

Step 5, set the output voltage or current of the far point reference point.

Step 6, set the analog output to switch characteristic selection.

Step 7, set the analog output as linear output or switch output option.

Step 8, reset the sensor to make the new parameters take effect.

8 working modes of the sensor.

1: Open window mode by default

2: Windowed mode is turned off by default

3: Single-point mode is turned on by default

4: Single-point mode is turned off by default

5: Single-point hysteresis mode is turned on by default

6: The single-point hysteresis mode is turned off by default

7: The presence or absence of detection mode is turned on by default

8: The presence or absence of detection mode is turned off by default

485 output data

485 output data is in MODBUS-RTU format. Refer to the software instruction manual for details.

technical parameters

Selection reminder: For special requirements, please contact our company and indicate in the order.

Precautions:

1. If you need to calibrate the meter, please contact our company. Non-professionals are not allowed to calibrate the meter.

2. When calibrating the meter, please turn on the meter first, and calibrate it after 1 hour of constant temperature.
