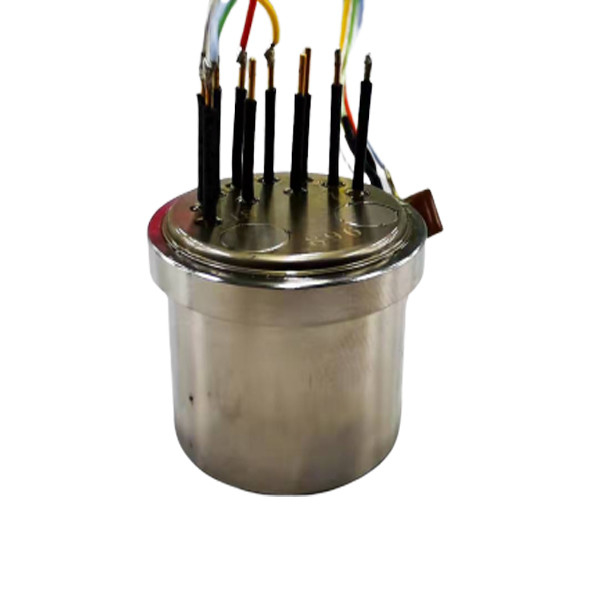

Quartz Flexible 60g Small Size Accelerometer Sensor For Drones

Quartz Flexible 60g Small Size Accelerometer Sensor For Drones

  • Quartz Flexible 60g Small Size Accelerometer Sensor For Drones
  • Quartz Flexible 60g Small Size Accelerometer Sensor For Drones
Quartz Flexible 60g Small Size Accelerometer Sensor For Drones
Product Details:
Place of Origin: China
Brand Name: Kacise
Model Number: KSJRA-4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Φ18.2*23mm,≤30Gram
Payment Terms: L/C, T/T
Supply Ability: 100+
Contact Now
Detailed Product Description
Range: ±60g Resolution/Threshold: ≤5ug
Bias K0 4-hours Composite Repeatability: ≤20μg 1g 4-hour Composite Repeatability: ≤20PPM
Scale Factor K1: 1.1±0.2mA/g Maxim Over Load: 40%
Intrinsic Noise: ≤8.4mV Power Supply: ±12~±15v
Power Consumption: ≤20mA Working Temperature Range: -55~+85℃
Resonance Frequency: 400~800Hz Bandwidth: ≤2500Hz
High Light:

60g Small Size Accelerometer Sensor

,

Quartz Small Accelerometer Sensor

,

Accelerometer Sensor For Drones

KSJRA-4 Quartz flexible Accelerometer



        Feature

☆ Tactical navigation grade performance

☆ High value

☆ Environmentally rugged

☆ Analog output

☆ Compact design

☆ Built-in test

  • Field-adjustable range
  • Application
  • Deep well level measuring

☆ Automotive test instrumentation

☆ Braking system deceleration

☆ Bridge and building sway and tilt monitoring

☆ Industrial and robotic control

☆ Land vehicle navigation

☆ Subway and train ride comfort control

  • Offshore drilling platform motion monitoring
  • Introduction

For an economic package, Kacise produces the KSJR-4 Quartz flexible Accelerometer for industrial grade applications including: automotive test instrumentation, braking system deceleration, bridge and building sway and tilt monitoring, industrial and robotic control, land vehicle navigation, subway and high-speed train ride comfort control, and offshore drilling platform motion monitoring. The KSJR-4 features a etched-quartz-flexure seismic system. An amorphous quartz proof-mass structure provides excellent bias, scale factor, and axis alignment stability. The integral electronics develops an acceleration-proportional output current providing both static and dynamic acceleration measurements. By use of a customer supplied output load resistor, appropriately scaled for the acceleration range of the application, the output current can be converted into a voltage.

  • Parameter
  KSJRA-4A KSJRA-4B KSJRA-4C
number parameters unit figure figure figure
1 Input Range g ±60
2 Resolution/Threshold ug ≤5
3 K0/Bias K0 mg ≤±5 ≤±7 ≤10
4 Bias K0 4-hours Composite Repeatability μg ≤20
5 1g 4-hour Composite Repeatability PPM ≤20
6 Bias K0 1 month Composite Repeatability μg ≤40 50 ≤100
7 Bias K0 Temperature Sensitivity μg/℃ ≤±50 ≤±100
8 Scale Factor K1 mA/g 1.1±0.2
9 Scale Factor K1 1-month Composite Repeatability ppm ≤40 ≤50 ≤100
10 Scale Factor K1 Temperature Sensitivity ppm/℃ ≤±50 ≤±80 ≤±100
11 Second order nonlinear coefficient(K2/K1) μg/g2 ≤20 <30 ≤30
12 maxim over load % 40
13 Intrinsic Noise mV ≤8.4
14 Power supply v ±12~±15
15 Power consumption mA ≤20
16 Working temperature range -55℃~+85
17 Storage temperature range -60~+120
18 Shock tolerance g 150g,0.5ms,1/2sin
19 reliability standard   GJB150.2,GJB150.9,GJB150.16
20 Resonance Frequency Hz 400~800
21 Bandwidth Hz ≤2500
22 Weight Gram ≤30
23 Dimensions mm Φ18.2*23
24 Axis Misalignment Second of arc ≤|100|”
25 Insulation characteristic ≥100MΩ
26 Temperature sensor   Can be customized AD590 PT100 PT1000 18B20 NTC,etc

  • Signal definition



Pin No. Pin. Name 描述/description
1 S- Signal output
2 NC not connected
3 -15VDC -15Vdc power supply
4 +15VDC +15Vdc power supply
5 GND Connect to GND
6 NC not connected
7 NC not connected
8 NC not connected
9 T- temperature sensor out; the temperature sensor can be customized such as NTC PT100 PT1000,etc
10 T+ temperature sensor out

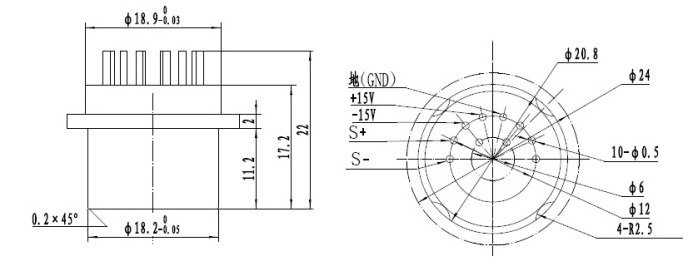

  • Electronic interface and signals definition



Quartz Flexible 60g Small Size Accelerometer Sensor For Drones 0
