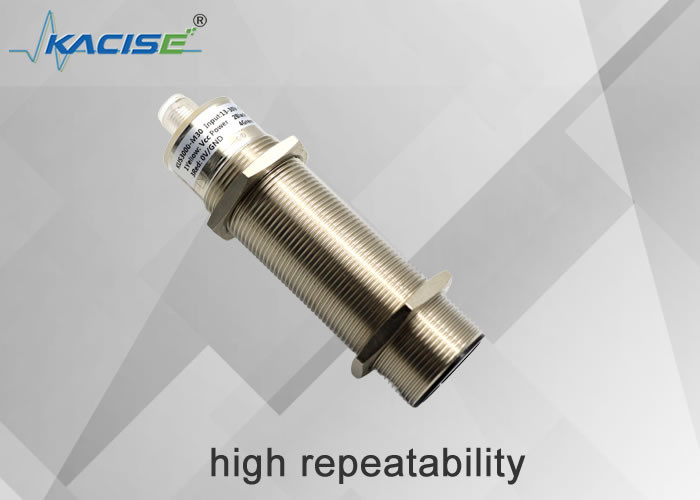

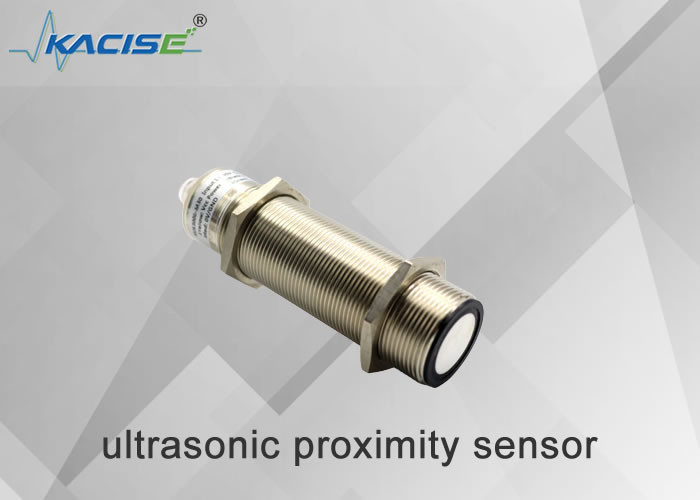

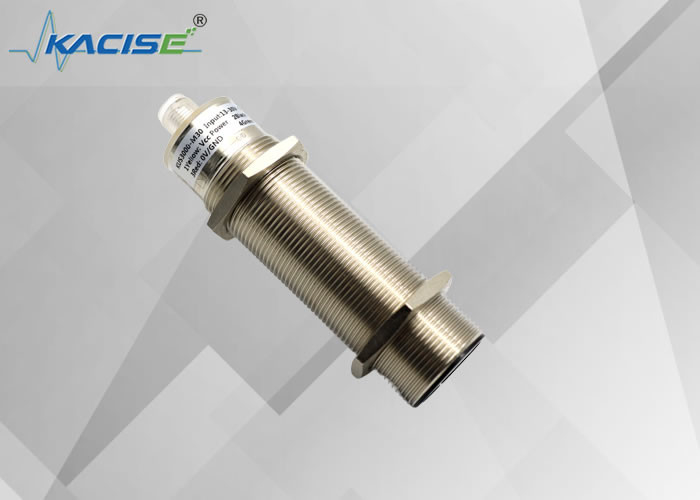

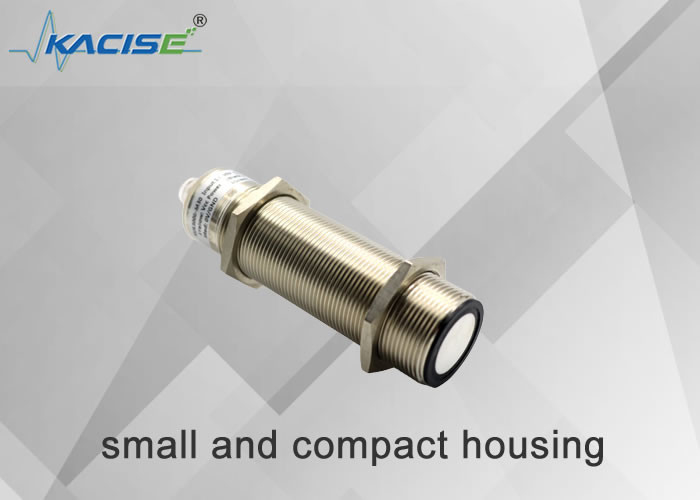

Small and highly accurate KUS3000 M30 ultrasonic distance sensor

KUS3000 Ultrasonic Transducer Sensor

Ultrasonic Transducer Sensor For Distance

KUS3000 Level Proximity Sensor

Place of Origin:

China

Brand Name:

Kacise

Certification:

Model Number:

KUS3000 M30-Type1

Document:

KUS3000 Ultrasonic Level Me....1.pdf

Request A Quote

Product Details

Range:

Protection Class:

IP65

Material:

Nickel-plated Copper Supports Customization

Blind Spot:

200mm

Half Power Angle:

10°

Temperature:

-25~70℃

Precision:

≤1 %

Resolution:

0.1mm

Highlight:

KUS3000 Ultrasonic Transducer Sensor

Ultrasonic Transducer Sensor For Distance

KUS3000 Level Proximity Sensor

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

15*20*15cm,0.3kg

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100+

10mW Resolution KWD300 Ultrasonic Noise Detection Sensor for Precise Detection

Get Best Price

KWD200 Ultrasonic Underwater Communications Sensor

Get Best Price

KWD510 M26 Hydrophone

Get Best Price

86--17719566736

Contact Now

Product Description

Small and highly accurate KUS3000 M30 ultrasonic distance sensor

Small and highly accurate KUS3000 M30 ultrasonic distance sensor 0

1. Dimensional structure

The unit is mm.
Small and highly accurate KUS3000 M30 ultrasonic distance sensor 1

2. Electrical interface

Note: This product has two cable specifications, and the cable wiring instructions of the two specifications are as follows:

Type A cable		Type B cable
Pin1	Brown	Pin1	Yellow
Pin2	White	Pin2	Black
Pin3	Blue	Pin3	Red
Pin4	Black	Pin4	Green

The default cable mix is based on the specifications received by the customer

3. Technical parameter

M30-type 1
Range	200... 2000 mm
Adjustable interval range	200….2000mm
Blind spot	0 ... 200 mm
Response time	approx. 10 ms

Indicator light

Blue led light

The blue light flashes to indicate that calibration can be performed. Blue and other constants indicate that the power supply of the sensor is normal. The blue light will flash within 5 minutes after the power is turned on, indicating that the user can perform output adjustment and calibration. After 5 minutes, the blue light is always on to indicate that the sensor cannot be receiving Calibration command. .

Tellow led light

It is used to indicate whether the measured object is detected. During the calibration stage, the yellow light flashes to indicate that the current calibration state is locked, and it can be switched to the next calibration state.

Red LED light

In normal working state, the red light is not on, and the red light is on to indicate that there is a fault.

During the calibration process, the flashing red light indicates that the sensor locks the current echo loss or infinity state, and the user can switch to the next calibration state.

Electrical parameters

Supply voltage	13 ... 30 V DC , Special wide voltage requirements can be customized
No-load current I0	≤ 45 mA

IOT-spectric models

Supply voltage	3.3-12 DC , ripple 10 %SS
Power consumption I0	≤ 15 mA, sleep mode≤1mA, Serial wake up,

Output

Output type	1 Switch output PNP output normally open and long closed can be calibrated 2 Switch output NPN output normally open and long closed programmable 3 Analog voltage output 0-10V programmable. 4 Analog 4-20mA output programmable 5 RS485 output E4 programmable.
Overcurrent Ie	200 mA , Reverse polarity protection, short circuit protection
Default setting	M18 Switch point A1: 150mm Switch point A2: 1000mm M30 Type 1 switch point A1 200mm switch point A2: 2000mm M30 type 2 switch point A1 300mm switch point A2: 4000mm M30 type 3 switch point A1 500mm switch point A2: 6000mm
Output voltage drop	≤ 2.5 V
Repeatability	≤1 %
On-off level f	≤ 13 Hz High frequency can be customized
Default hysteresis characteristic amplitude	5% of the set value, special requirements can be customized
Temperature Compensation Range	-40℃-85℃

Temperature Requirements

Working temperature	-25…70℃(248...343K)
Storage temperature	-40…85℃(233...358K)

Mechanical part description

Even machine	V1 connector(M12×1),4-Pin
Protection class	IP65 Other can be customized
Shell material	Nickel-plated copper, others can be customized

Note: When the M18 product and M30 product have 4-20mA analog output, the meter connection method is different from that of the 550,600 product. Since the output terminal of the M18 and M30 products is powered by VDD, as shown in Figure 1, the meter should be connected to the power supply port. Between the output terminal and the output terminal, the connection instruction diagram is shown in Figure 2:

Small and highly accurate KUS3000 M30 ultrasonic distance sensor 2
Figure 1 Output power supply circuit diagram

Small and highly accurate KUS3000 M30 ultrasonic distance sensor 3

Figure 2 Schematic diagram of connection method
