| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KUS630 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | gift box,carton box |
| Delivery Time: | 5 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 1000 Pieces per month |
| Response Time: | ＜50ms | Beam Angle: | 7°±2 |
|---|---|---|---|
| Temp. Compensation: | Inside/outside/fix Temp. | Operating Voltage: | 14.5VDC~27VDC |
| Output: | RS485,0~5V | Operating Ambient Temp.: | 0~70℃ (-40~85℃, -55~125℃, Etc, Customizable) |
| IP Grade: | IP65 | Detection Range: | 200mm~3000mm |
| Transducer Frequency: | 70KHZ | Repeatability Precision: | ≤1% |
| Usage: | Long Range Object Detection | Range: | 10-30m |
| High Light: | 10 Meter Ultrasonic Transducer Sensor,Distance Measurement Ultrasonic Transducer Sensor,10 Meter non contact liquid sensor |
||

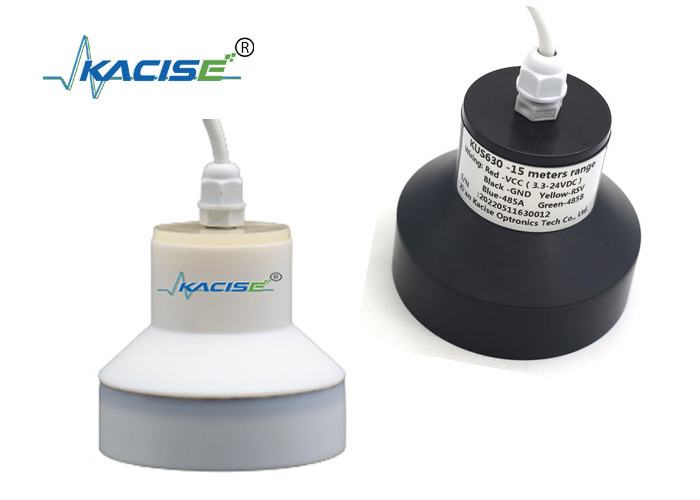

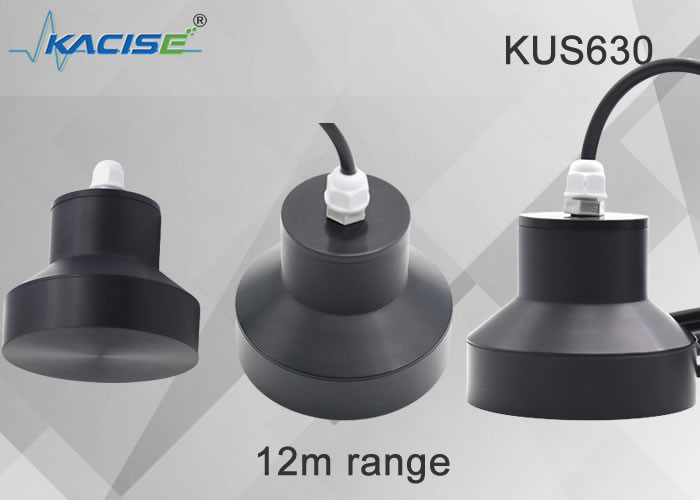

KUS630 10m-30m
Ultrasonic Sensor For Distance Measurement 10m non contact Intelligent Ultrasonic Sensor Water Level Ultrasonic Distance
1. Product features:
Application
2. Product Description
This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing,
designed to meet IP65.
3. Parameter
General specifications
| Model: KUS630 | |
| Measuring range |
0.6m... 15m
Or 1.2m….30m
Or 1.8m….50m
|
| Blind spot |
0 ... 0.6m/1.2m/1.8m(Unstable working area is within 0.6m, it is not recommended
to work in this range); the minimum blind area version of 0.3m can be achieved,
which needs to be customized.
|
| Supply voltage |
3.3 ... 24 V DC , ripple 10 %SS
|
| Working current |
≤ 45 mA (fastest measurement speed)
Low-power version, sleep power consumption is less than 0.3mA,
sending power consumption is 20mA (less than 2ms), and receiving
power consumption is not more than 8mA (less than 150ms)
|
|
Output signal |
1:Programmable analog output 0-10V.
2:RS485 output.
3:Uart serial output
4:4-20mA output
5:Switch output
|
| Measurement accuracy | ≤1 %F.S. |
| Temperature compensation | Yes |
| Ranging resolution | 0.1mm； |
Working conditions
| Working temperature | -25…70℃(248...343K) |
| Storage temperature | -40…85℃(233...358K) |
Other instructions
| Electrical connection | 5-core cable (analog output), 6-core cable (switch output)； |
| Protection class | IP68 |

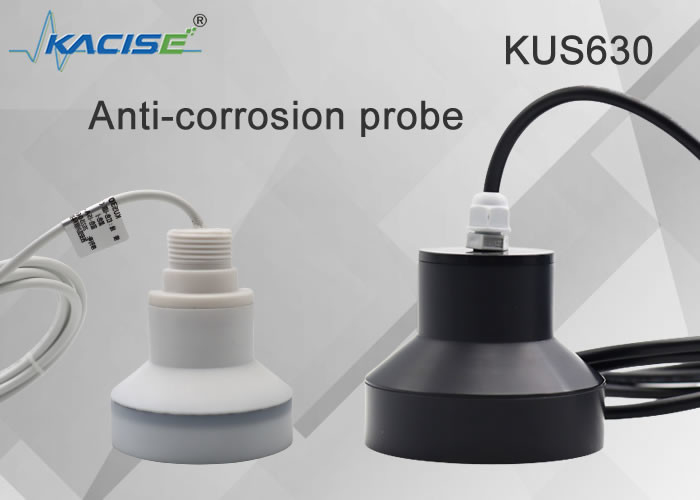

| shell material | PVC /PVDF/PTFE/ABS |
4. Dimensions
5. Wiring
