| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KsINS-70 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Power Consumption: | ≤ 20W | Weight: | 3~4kg |
|---|---|---|---|
| Operating Temperature: | -40℃~ +65℃ | ||
| High Light: | Optical Fiber Strapdown Inertial Navigation Unit,Quartz Flexible Accelerometer Inertial Navigation System |
||

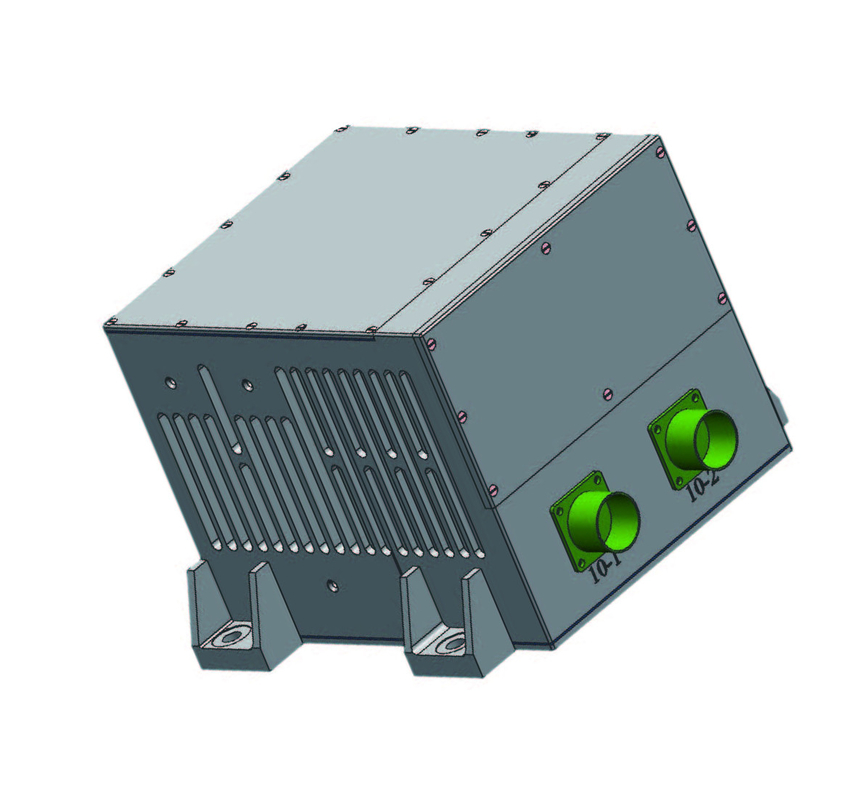

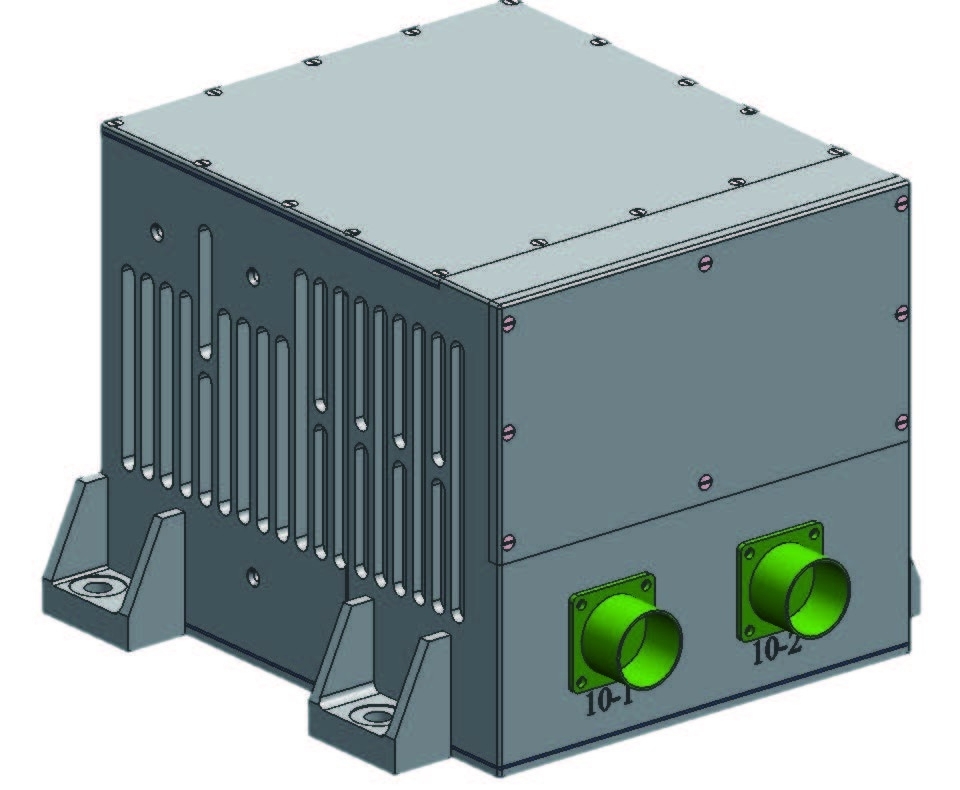

KsINS- 70 fiber optic strapdown inertial navigation system
product description:
The KsINS- 70 fiber optic gyro strapdown navigation system is based on a universal fiber optic inertial navigation platform. The platform adopts a universal design concept and is easy to make adaptive changes according to user needs. It has the advantages of short development cycle, high maturity and good reliability. ; Its supporting gyroscopes, accelerometers, circuits and other components are all made from our existing shelf products, which are mature and reliable.
Features:
● Using domestic fiber optic gyroscope and quartz flexible accelerometer
● The bias stability of type 70 fiber optic gyroscope is better than 0.05°/h (1σ)
● Accelerometer bias stability is better than 50µg (1σ)
● Compatible with static and dynamic base alignment methods, self-alignment and transfer alignment can be selected according to user needs
● Can integrate navigation with external information such as satellite navigation instrument, speedometer, odometer, altimeter, etc., with strong scalability
Application fields and application modes:
Land use, navigation, drones, and can also be extended to other applications.
System performance:
| Car navigation | ship navigation | Drone navigation | Ship local datum | |
|
Location (CEP) |
≤ 0.1%D, Odometer assist ≤ 0.1m, Differential Satellite Assist |
≤ 1nm/3h, Trip meter assist ≤ 0.1m, Differential Satellite Assist |
≤ 3nmile/h |
≤ 1m (relative) |
| Speed(1σ) | ≤ 0.3m/s | ≤ 1.0m/s | ≤ 1.0m/s | ≤ 0.2m/s(relative) |
| Heading(1σ) | ≤ 2.0mil | ≤ 1mil (relative) | ||
| Attitude (1σ) | ≤ 0.02° | ≤ 0.01° (relative) | ||
| Align time | 5min | 15-20min | 5min | 5min |
System features:
| Power consumption | ≤ 20W | |
| size | 190mm (L) × 150mm (W) × 140mm (H) | |
| weight | 3~4kg | |
| Input voltage | 18V～32V | |
| Operating temperature | -40℃~ +65℃ | |
| Mechanical environment | impact | Half sine wave 30g, 11ms |
| vibration | GJB150.16A-2009.C.3 | |
|
Interface information |
RS-232/RS-422×2 Built-in satellite receiver Odometer interface; altimeter interface; speedometer interface |
|
Device performance :
| Gyroscope | Accelerometer | ||
| Bias stability | ≤ 0.03°/h,1σ | Offset Repeatability | ≤ 50µg, 1σ |
| Offset Repeatability | ≤ 0.03°/h,1σ | Bias stability | ≤ 100µg, 1σ |
| scaling factor | ≤ 30ppm, 1σ | Scaling factor repeatability | ≤ 50ppm, 1σ |
| random walk | ≤ 0.002° / , 1σ | Scale factor stability | ≤ 50ppm, 1σ |
