| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | mKsINS- AIR |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Align Time: | ≤5min | Heading Alignment Accuracy: | ≤ 0.06° (1σ) (self-aligned) |
|---|---|---|---|
| Attitude Alignment Accuracy: | 0.01°(1σ) | Working/storage Temperature(℃): | -40℃ ~+60℃ /-45℃ ~+80℃ |
| High Light: | Optical Fiber Strapdown Inertial Navigation System,High Altitude Airships Inertial Navigation System |
||

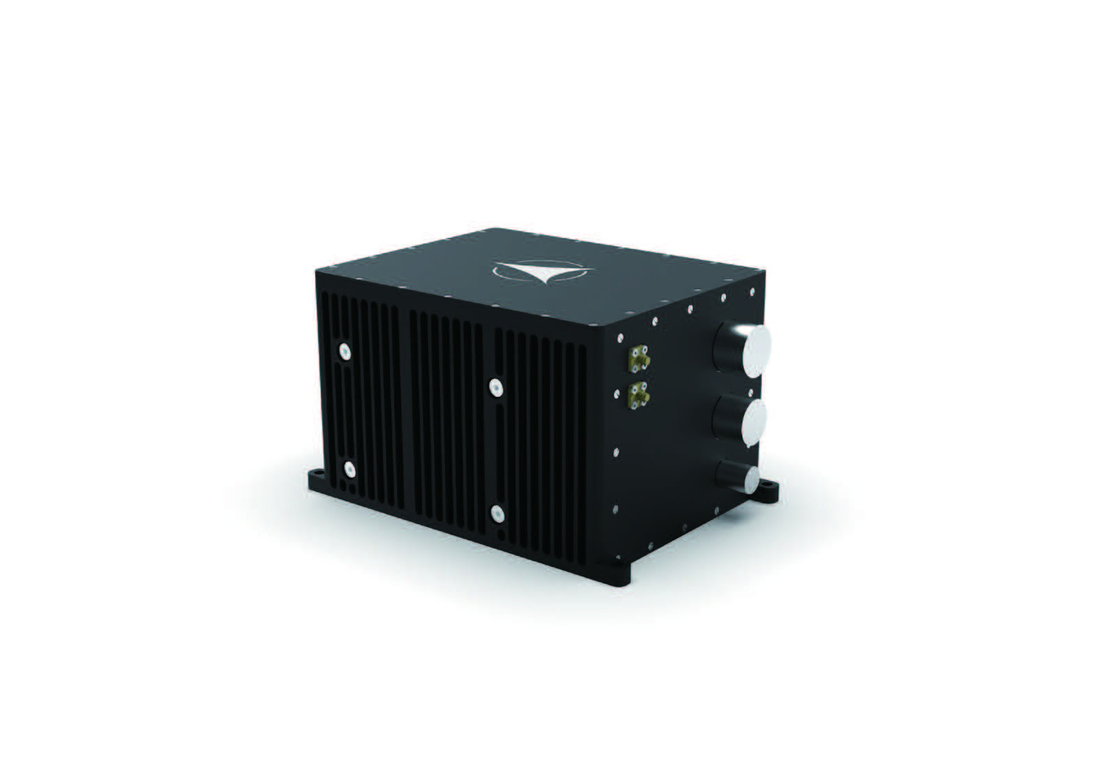

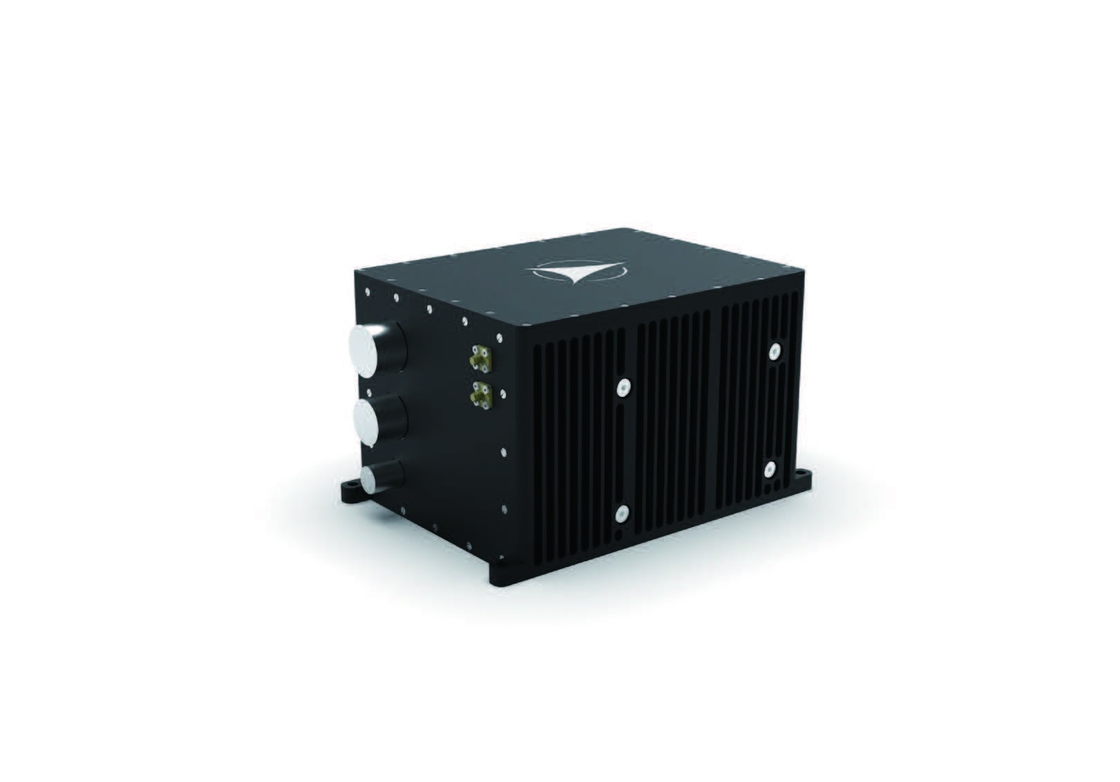

mKsINS- AIR fiber optic strapdown inertial navigation system
product description:
mKsINS-AIR optical fiber strapdown inertial navigation system is a product for large UAVS. The system can be sensitive to the angular motion and linear motion of the UAV carrier, and output the position, speed, heading, angular rate and linear acceleration information of the carrier in real time. It can be combined with the satellite receiver to complete the integrated navigation operation, which can meet the needs of attitude control, navigation and positioning of various UAVs.
Features:
● High precision and high reliability
● Easy installation and built-in vibration reduction mode to meet the needs of harsh vibration environments
● Rich communication interfaces
● The output protocol is flexible and can be configured through test software
● Have a complete BIT strategy and passed the actual flight assessment
Application fields and application modes:
It can be used in the fields of high-altitude airships and large fixed-wing drones.
Performance indicators :
| Align time | ≤5min |
| Position accuracy | Pure inertia: 1nmile/h (CEP); integrated navigation with satellite: altitude 10m; horizontal 5m |
| Speed accuracy | In integrated navigation mode: sky speed ≤ 0.2m/s, horizontal speed ≤ 0.1m/s |
| heading alignment accuracy | ≤ 0.06° (1σ) (self-aligned) |
| Heading maintenance accuracy | 0.01° /h (pure inertia), 0.02° (integrated navigation) |
| Attitude alignment accuracy | 0.01°(1σ) |
| Attitude maintenance accuracy | 0.02° (pure inertia), 0.01° (integrated navigation) |
Application environment :
| Working/storage temperature(℃) | -40℃ ~+60℃ /-45℃ ~+80℃ |
| MTBF(h) | 30000h |
| Dynamic Range | Angular velocity: ±300°/s; Acceleration: -25g~25g |
| Mechanical properties | Endurance vibration environment: with shock absorption: GJB1032 random vibration spectrum |
Physical properties:
| Dimensions | 215mm×166mm× 140mm |
| weight | ≤ 6.0kg |
| waterproof level | IP67 |
External Interface:
| powered by | 18V~36V |
| Power consumption | ≤ 18W |
|
Input/output interface |
RS-422×4 (multiplexing), RS-232×1 (multiplexing), CAN×1 network port×1, Pulse interface × 2, data storage 8G |
| Data output frequency | ≤1000Hz |
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing.
We supply high quality Turbine Gas Flow Meter, hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.
