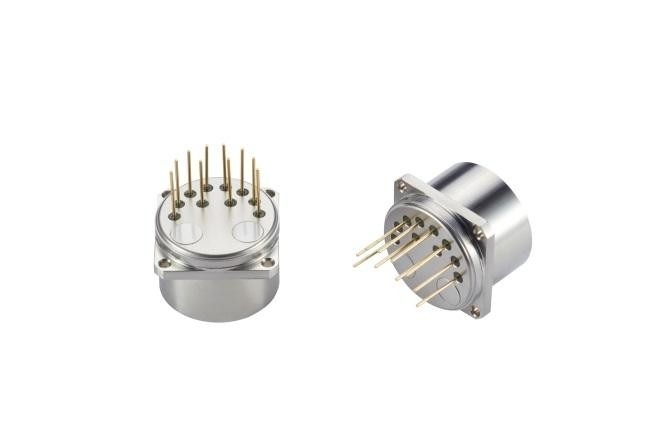

KSJB4 series quartz flexible accelerometer is a kind of high temperature and vibration resistance accelerometer, the product has excellent repeatability, start-up performance, high temperature resistance and high reliability, can be used for static test or dynamic test, is also a standard vibration sensor.
The product adopts unique high temperature and seismic design, packaging technology and special circuit, the output current of the product is proportional to the measured acceleration, providing static and dynamic acceleration measurement, users can choose the appropriate sampling resistance through calculation, to achieve high precision output, and can be built in temperature sensor according to user needs, for offset and scale factor compensation. Reduce the impact of ambient temperature. We can replace QA650, T185, T160, JAE series products in place, but we use double torque structure, which is different from other companies' products, can make the accelerometer offset value and scale factor more stable, and have independent intellectual property rights. This product has been launched since 2010, and the number of deliveries has reached thousands. After years of application, it has become a mature product, especially for the measurement while well drilling of oil well drilling
Application fields: bridge, dam, oil well, coal mine inclination test, high-speed railway control, ship stability control.

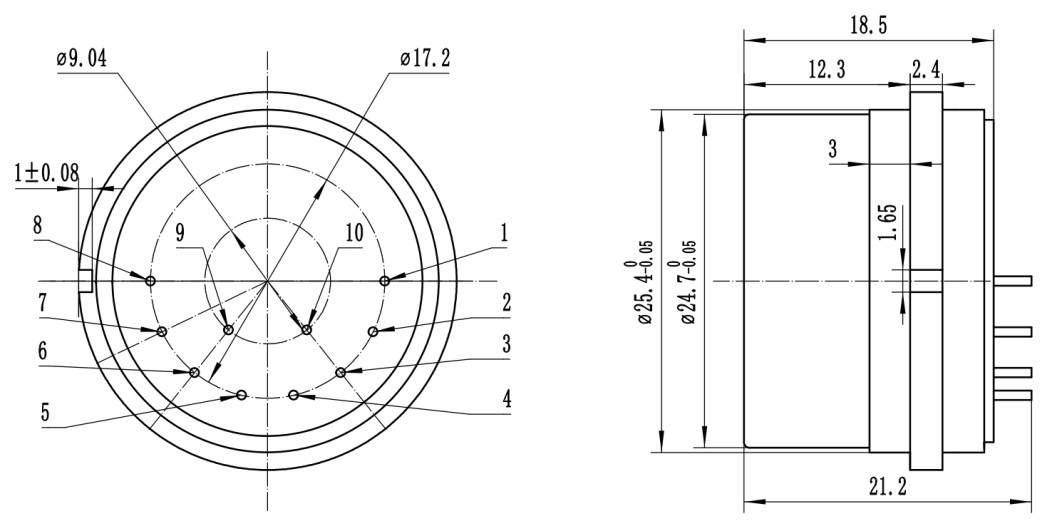

1. JB4-01 Structural dimensions and pin definition
2. JB4-02A and JB4-03A Structural dimensions and pin definitions
3. JB4-02B and JB4-03B structural dimensions and pin definitions
(Type B product outline figure 1)
(B type product outline figure 2)
4. JB4-02C and JB4-03C structural dimensions and pin definitions
5. JB4-02D and JB4-03D structure size and pin definition
Pin definition:
1, Signal output
2, air
3, power -15V
4, power +15V
5, power and signal ground
6, 7, 8, empty
9, -9V or pt1000
10, +9V or pt1000
technical parameters:
| Number | Parameters | KT-JB4-01 | KT-JB4-02 | KT-JB4-03 |
| 1 | Scope | ±30g | ±30g | ±30g |
| 2 | deviation value K0/K1 | ＜10mg | ＜15mg | ＜15mg |
| 3 | deviation value synthesis repeatability σk0 (1σ,one month) | ＜50µg | ＜200µg | ＜200µg |
| 4 | temperature coefficient | ＜50µg/℃ | ＜100µg/℃ | ＜100µg/℃ |
| 5 | scale factor K1 | 1.1～1.3 mA/g | 1.1～1.3 mA/g | 1.1～1.3mA/g |
| 6 | Scale factor integrated repeatability σk1/k1 (1σ,one month) | ＜80 ppm | ＜150 ppm | ＜150 ppm |
| 7 | deviation value Temperature coefficient(The mean value of the whole temperature zone) | ＜100ppm | ＜200ppm | ＜200ppm |
| 8 | installation error | ＜1500µrad | ＜1500µrad | ＜1500µrad |
| 9 | Vibration rectification error | ＜30µg/g 2rms (50-500Hz) | ＜100µg/g 2rms (50-500Hz) | ＜100µg/g 2rms (50-500Hz) |
| 10 | Noise | ＜3000µg-rms (0-10000Hz) | ＜3000µg-rms (0-10000Hz) | ＜3000µg-rms (0-10000Hz) |
| 11 | Operating temperature range | -55～96℃ | -55～155℃ | -55～180℃ |
| 12 | strike | 500 g 0.5ms | 1000 g 0.5ms | 1000 g 0.5ms |
| 13 | Random vibration | 25 g @30-500Hz | 25 g @30-500Hz | 25 g @30-500Hz |
| 14 | resolution ratio | ＜10µg | ＜10µg | ＜10µg |
| 15 | bandwidth | ＞300 Hz | ＞300 Hz | ＞300 Hz |
| 16 | Current consumption | ＜20 mA | ＜20 mA | ＜20 mA |
| 17 | power dissipation @ ±15VDC | ＜480 mW | ＜480 mW | ＜480 mW |
| 18 | Power supply | ±13 to ±18V | ±13 to ±18V | ±13 to ±18V |
| 19 | weight | ＜55g | ＜55g | ＜55g |
| 20 | Mounting diameter | Ф25mm | Ф25mm | Ф25mm |
| 21 | height | ＜21.5mm | ＜21.5mm | ＜21.5mm |
| 22 | Shell materials | 300 series Stainless steel | 300 series Stainless steel | 300 series Stainless steel |
Note:
1. Scale factor is adjusted according to user requirements;
2.Temperature sensor: divided into AD590, pt1000,
3. Test cycle: divided into 1 month, 3 months, 6 months, 12 months, according to user requirements for testing;
4. Install according to user requirements; The dimensions can be slightly adjusted according to user requirements, and other test requirements can be carried out according to customer requirements.
