High Precision Fiber Optic Gyroscopes Used In Inertial Measurement Units，Bias drift ≤0.1 (°) / h

High Precision Inertial Fiber Optic Gyroscopes

Rotational Fiber Optic Gyroscopes

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

certificate of explosion-proof, CE

Model Number:

K1FOG20

Request A Quote

High Precision Fiber Optic Gyroscopes Used In Inertial Measurement Units，Bias drift ≤0.1 (°) / h

Product Details

Dimensions (mm):

50×50×36

Start Time (s):

Bias Drift (°) / H (10s Smooth, Fix Temperature):

≤0.1 (°) / H (10s Smooth, Fix Temperature)

Highlight:

High Precision Inertial Fiber Optic Gyroscopes

Rotational Fiber Optic Gyroscopes

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 working days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Pieces per Week

Single Axis Fiber Optic Electronic Gyroscope Sensor Shocking Resistance

Get Best Price

Video

Well Logging Dynamically Tuned Gyroscope For High Temperature Environment

Get Best Price

Small Size Mems Gyroscope Sensor Angel Measuring Instruments Dip Performance

Get Best Price

200Hz Single Axis Gyro Sensor , Gyroscope Sensor Module High Bias Stability

Get Best Price

86--17719566736

Contact Now

Product Description

K1FOG20 series Gyro

Name: High Precision Fiber Optic Gyroscopes Used In Inertial Measurement Units，Bias drift ≤0.1 (°) / h
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: K1FOG20
Price: 431.00 USD
Availability: InStock

This product is an inertial angular rate sensor that utilizes the optical Sagnac effect to measure the rotational angular velocity of the carrier along its sensitive axis. It employs a digital closed-loop detection circuit to capture the optical path difference in clockwise light caused by external angular velocity. The optical path voltage signal is modulated and demodulated, with closed-loop feedback and control, enabling real-time detection of angular velocity signals.

Function: The product consists of two main components: an optical angular velocity sensing unit and a signal detection system, delivering uniaxial angular increment data and internal temperature information.

Application: This product is ideal for use in optoelectronic cranes, aerial platforms, inertial navigation systems, inertial measurement devices, optical and photographic instruments, platform stabilization systems, and other similar applications.

High Precision Fiber Optic Gyroscopes Used In Inertial Measurement Units，Bias drift ≤0.1 (°) / h 0

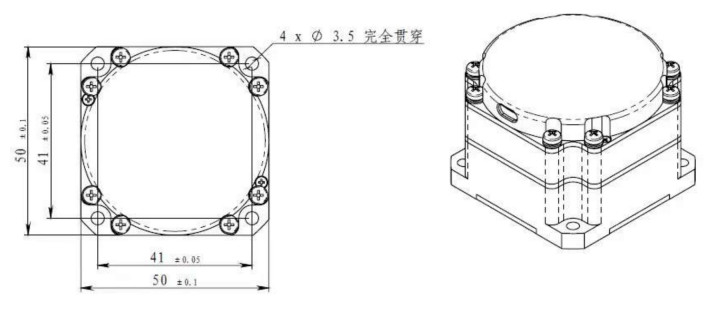

Installation mode 1. Size: 50X50X32

High Precision Fiber Optic Gyroscopes Used In Inertial Measurement Units，Bias drift ≤0.1 (°) / h 2

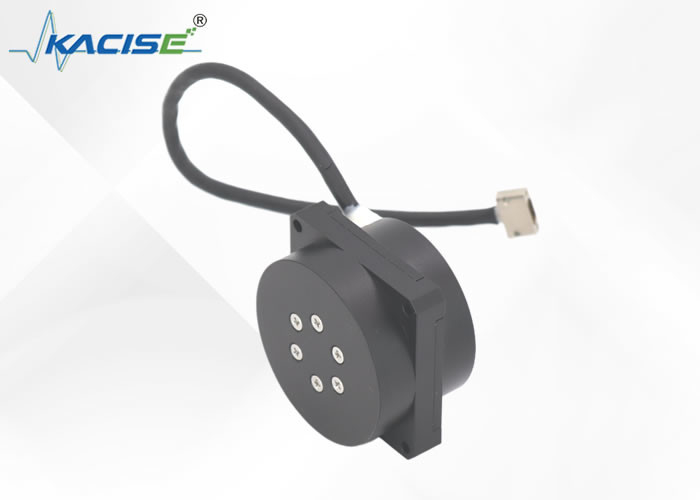

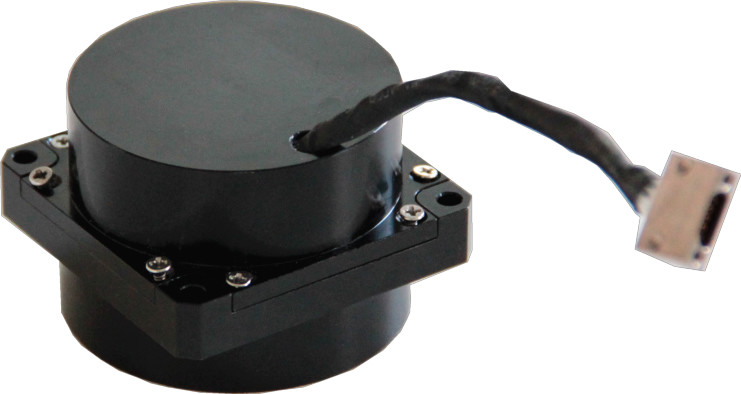

Installation mode: 2nd dimension: 50X50X36

Main performance parameters

Sn#	test item	H	L
1	Dimensions (mm)	50×50×36	50×50×36
2	start time (s)	5	5
3	Bias drift (°) / h (10s smooth, fix temperature)	≤0.1	≤0.3
4	Bias drift (°) / h (10s smooth) -45~ + 70	≤0.3	≤0.5
5	Bias repeatability (°) / h	≤0.05	≤0.1
6	Random walk coefficient⁽º⁾/h^1/2	≤0.01	≤0.02
7	Scale factor non-linearity (ppm)	≤10	≤20
8	Scale factor repeatability (ppm)	≤10	≤20
9	Operate temperature ℃	-45～+70	-45～+70
10	Storage temperature of (℃)	-50～+80	-50～+80
11	Dynamic range (°) / s	±900	±900
12	Supply voltage (V)	+5	+5
13	Steady-state power consumption (full temperature) (W)	<4	<4
14	weight (g)	＜130	＜130
