Place of Origin: | China (Mainland) |
Brand Name: | Kacise |
Certification: | certificate of explosion-proof, CE |
Model Number: | KSJB2 |
Minimum Order Quantity: | 1pcs |
---|---|
Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
Delivery Time: | 5-8 working days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 1000 Pieces per Week |
Power Supply: | 12V-15V | Deviation Value K0/K1: | ≤±3 Mg |
---|---|---|---|
Weight: | ≤80g | Product Name: | Accelerometer Sensor |
Storage Temperature Range: | -60~+120℃ | Range: | ±70g |
Operating Temperature: | -55°C To +85°C | Size: | Ф25.4mm X30mm |

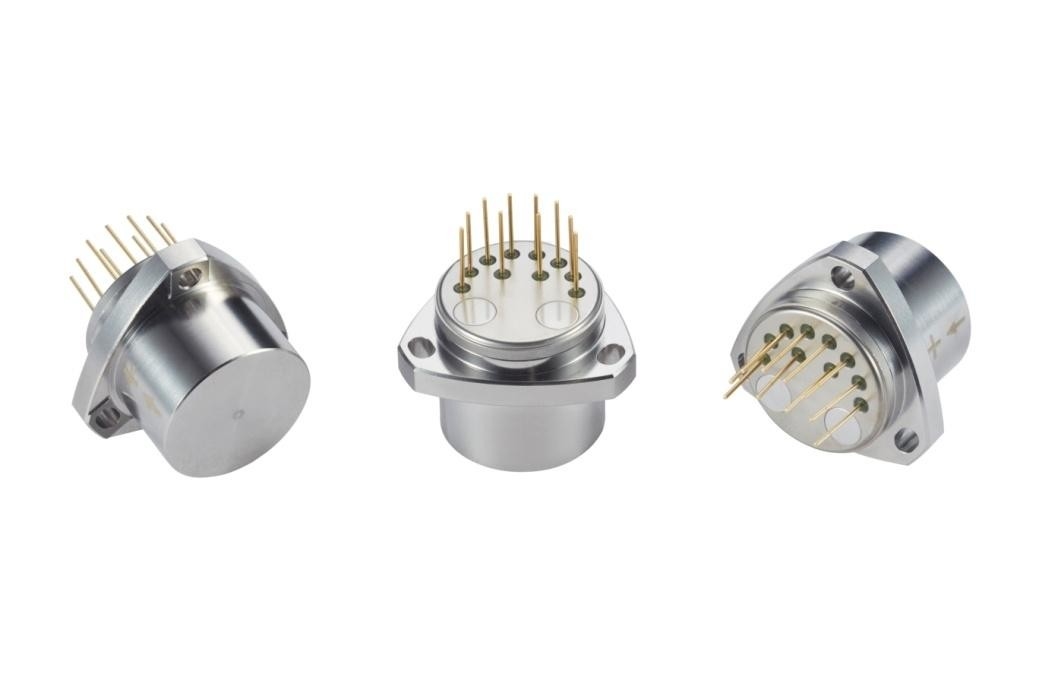

KSJB2 series quartz flexible accelerometer is a high-precision, inertial navigation level accelerometer for a large number of military applications (up to 100g), the product has excellent long-term stability, repeatability, start-up performance, environmental adaptability and high reliability characteristics, can be used for static testing can be used for dynamic testing, is also a standard vibration sensor and inclination sensor.
The output current of the product is linearly related to the force or acceleration received, and the user can select the appropriate sampling resistance through calculation to achieve high-precision output. The built-in temperature sensor can be used to compensate the offset value and scale factor to reduce the impact of ambient temperature according to user needs.
Applications: Inertial measurement of military high-precision inertial navigation system in aerospace, aviation, ships, weapons and other fields, and precision instrument equipment vibration isolation test and inclination test.

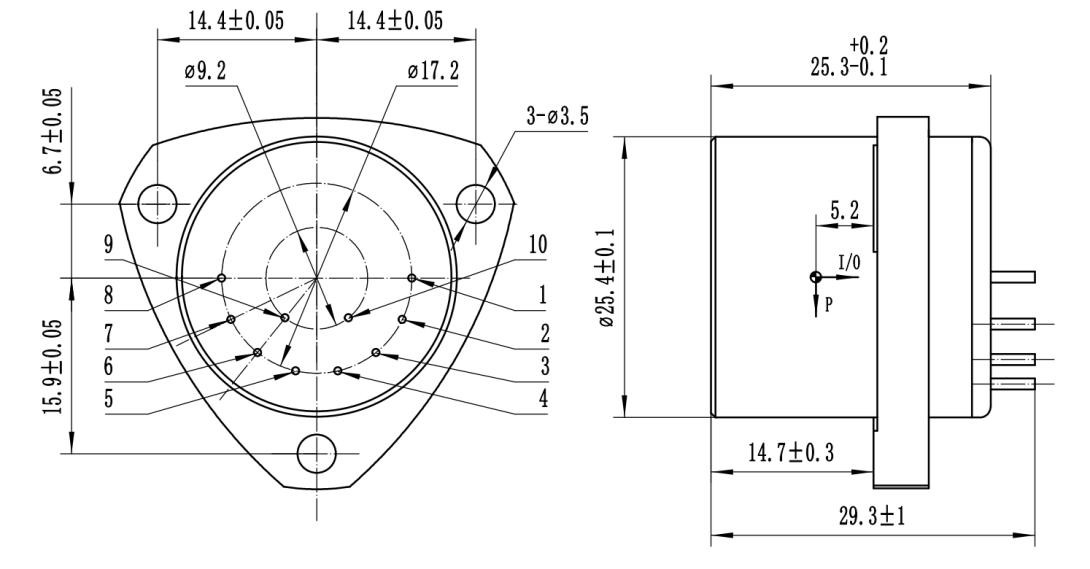

Figure I: Universal accelerometer
Pin conventional definition: 1, signal output; 2. Empty; 3, -15V; 4, +15V; 5, power supply and signal ground; 6. Empty; 7. Empty; 8. Empty; 9, -9V output; 10, +9V output.
Number | Parameters | KSJB2-01 | KSJB2-02 | KSJB2-03 |
1 | Scope | ±70g | ±70g | ±70g |
2 | Threshold value | 5μg | 5μg | 5μg |
3 | deviation value K0/K1 | ≤±3 mg | ≤±3 mg | ≤±5 mg |
4 | scale factor K1 | 0.8~1.2 mA/g | 0.8~1.2 mA/g | 0.8~1.2 mA/g |
5 | Second order nonlinear coefficient K2 | ≤±10μg /g2 | ≤±15μg /g2 | ≤±20μg /g2 |
6 | 0g 4 hours short-term stability | ≤10 μg | ≤15 μg | ≤20 μg |
7 | 1g 4 hours short-term stability | ≤10 ppm | ≤15 ppm | ≤20 ppm |
8 | deviation value synthesis repeatability σK0 (1σ,one month) | ≤10 μg | ≤20 μg | ≤30 μg |
9 | Scale factor integrated repeatability σK1/K1 (1σ,one month) | ≤15ppm | ≤30 ppm | ≤50 ppm |
10 | Comprehensive repeatability of nonlinear coefficients K2/K1(1σ,one month) | ≤±10 μg /g2 | ≤±20 μg /g2 | ≤±30 μg /g2 |
11 | deviation value Temperature coefficient(The mean value of the whole temperature zone) | ≤±10 μg /℃ | ≤±30 μg /℃ | ≤±50 μg /℃ |
12 | Scale factor Temperature coefficient(The mean value of the whole temperature zone) | ≤±20 ppm /℃ | ≤±30 ppm /℃ | ≤±50 ppm /℃ |
13 | Noise(The sampling resistance is 840Ω) | ≤5mv | ≤5mv | ≤5mv |
14 | Natural frequency | 400~800 Hz | 400~800 Hz | 400~800 Hz |
15 | bandwidth | 800~2500 Hz | 800~2500 Hz | 800~2500 Hz |
16 | Random vibration | 6g(20-2000Hz) | 6g(20-2000Hz) | 6g(20-2000Hz) |
17 | strike | 100g,8ms,1/2sin | 100g,8ms,1/2sin | 100g,8ms,1/2sin |
18 | Operating temperature range | -55~+85℃ | -55~+85℃ | -55~+85℃ |
19 | Storage temperature range | -60~+120℃ | -60~+120℃ | 60~+120℃ |
20 | Power supply | ±12~±15V | ±12~±15V | ±12~±15V |
21 | Current consumption | ≤±20mA | ≤±20mA | ≤±20mA |
22 | Temperature sensor | User customizable | User customizable | User customizable |
23 | dimension | Ф25.4X30mm | Ф25.4X30mm | Ф25.4X30mm |
24 | weight | ≤80g | ≤80g | ≤80g |
Note:
1. Scale factor is adjusted according to user requirements;
2.Temperature sensor: divided into AD590, pt1000, 18B20,
3. Test cycle: divided into 1 month, 3 months, 6 months, 12 months, according to user requirements for testing;
4. According to user installation requirements; The dimensions can be slightly adjusted according to user requirements, and other test requirements can be carried out according to customer requirements.
The Kacise KSJB2 Linear Acceleration Meter is a powerful accelerometer sensor that provides accurate detection of gravity force and linear acceleration. It is designed with an explosion-proof certification and is suitable for a variety of applications. The KSJB2 is equipped with a threshold value of 5μg and a low noise of 5mV, so it can provide reliable and precise measurements. The operating temperature is -55°C To +85°C and the size is Ф25.4mm X30mm. It can support a power supply of 12V-15V. With a minimum order quantity of 1pcs, it is packed in individual boxes and all boxes are packed in standard packages or customers requests available. Delivery is ensured within 5-8 working days. Payment terms are available through T/T, Western Union, MoneyGram. Our factory has a capacity of 1000 Pieces per Week.
We offer technical support and services for Accelerometer Sensor. Our tech team is always available to help with any questions or issues that may arise. We can provide assistance with installation, configuration, and troubleshooting of the Accelerometer Sensor. Our tech team can also provide guidance on how to use the sensor to its fullest potential. We also offer software updates to keep your Accelerometer Sensor running smoothly and efficiently.
If you have any questions or need technical support, please don't hesitate to contact us. Our team is here to help!
