| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSJB2 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Range: | ±70g | Power Supply: | 12V-15V |
|---|---|---|---|
| Threshold Value: | 5μg | Size: | Ф25.4mm X30mm |
| Product Name: | Accelerometer Sensor | Noise: | 5mV |
| Deviation Value K0/K1: | ≤±3 Mg | Weight: | ≤80g |
Accelerometer Sensor is an acceleration measurement unit and motion velocity sensor, which is used to measure acceleration, velocity and shock. This sensor has a range of ±70g and a power supply of 12V-15V. It has a size of Ф25.4mm X30mm and a threshold value of 5μg. The deviation value K0/K1 is ≤±3 Mg. It is an ideal choice for motion, acceleration and shock measurements. It is a reliable and accurate device designed to measure acceleration in multiple directions and provide precise motion velocity readings. It is suitable for a wide range of applications, including robotics, machine vision, vibration monitoring, automotive, aerospace, and more.

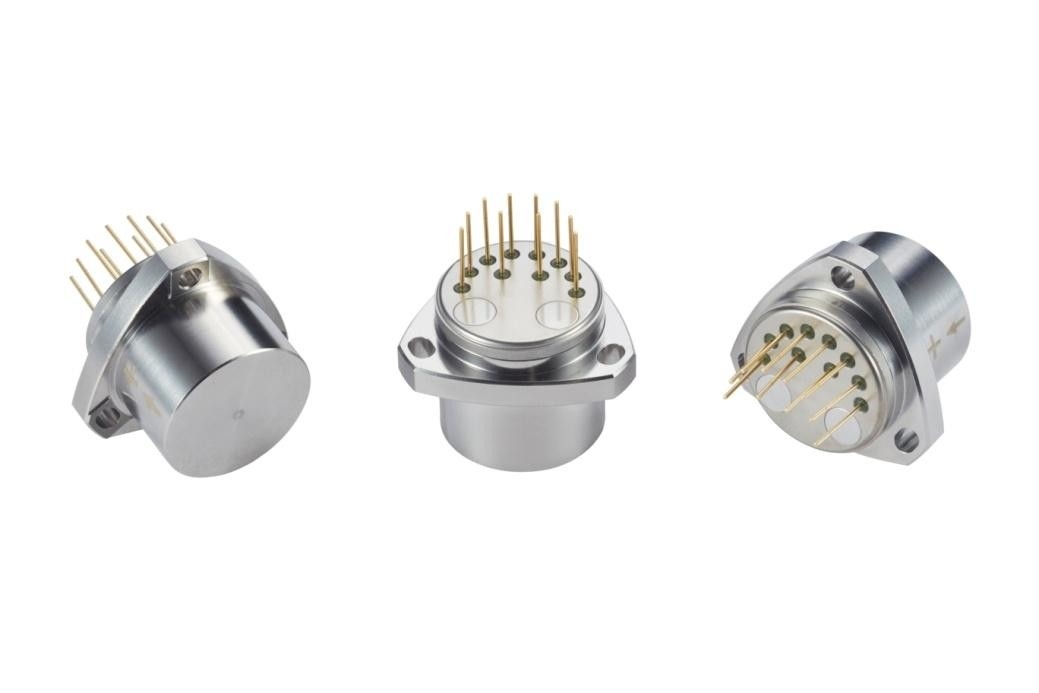

Figure I: Universal accelerometer

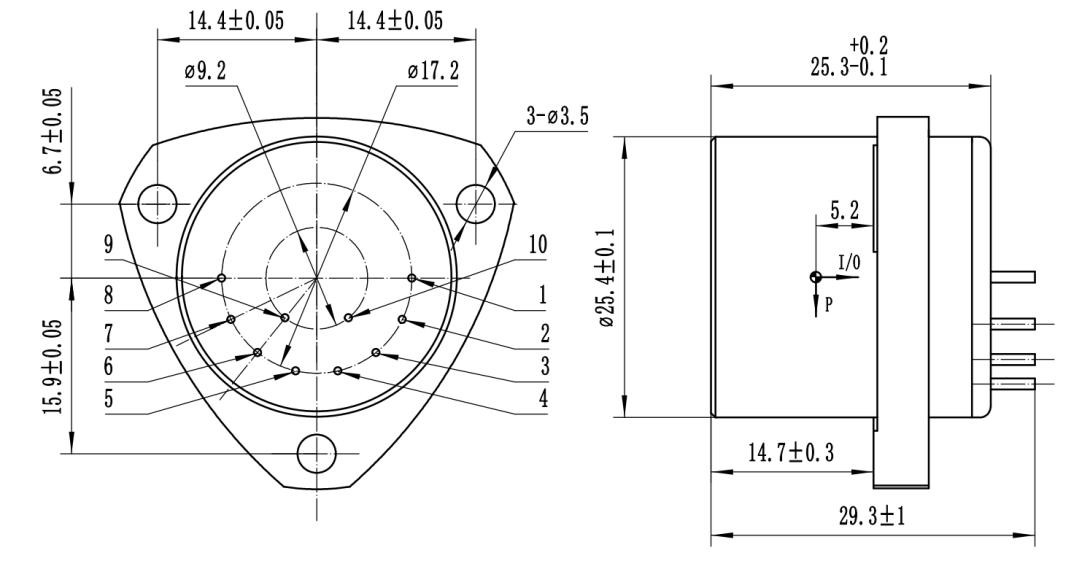

Pin conventional definition: 1, signal output; 2. Empty; 3, -15V; 4, +15V; 5, power supply and signal ground; 6. Empty; 7. Empty; 8. Empty; 9, -9V output; 10, +9V output.
Note:
1. Scale factor is adjusted according to user requirements;
2.Temperature sensor: divided into AD590, pt1000, 18B20,
3. Test cycle: divided into 1 month, 3 months, 6 months, 12 months, according to user requirements for testing;
4. According to user installation requirements; The dimensions can be slightly adjusted according to user requirements, and other test requirements can be carried out according to customer requirements. |
|---|
Kacise KSJB2 Accelerometer Sensor is a high-precision motion velocity sensor which can measure the gravity force and acceleration precisely. It is equipped with advanced components and is suitable for various applications and industries. The size of the Kacise KSJB2 Accelerometer Sensor is Ф25.4mm X30mm, and it has a threshold value of 5μg and a deviation value K0/K1 of ≤±3 Mg. It can work under a wide temperature range from -55°C to +85°C. It also has CE certification and certificate of explosion-proof.
Kacise KSJB2 Accelerometer Sensor is widely used in multiple scenarios, such as monitoring the vibration and tilt of medical equipment, controlling the acceleration of unmanned aerial vehicles, and measuring the motion velocity of vehicles. It is also applicable to measure the motion velocity of construction machinery, agricultural machinery, robots and other mechanical equipment. It is also used to measure the vibration in water conservancy projects, to monitor the movement of buildings, and to detect the motion of industrial machinery. By using Kacise KSJB2 Accelerometer Sensor, the motion velocity and acceleration of any object can be monitored and measured accurately.
The minimum order quantity of Kacise KSJB2 Accelerometer Sensor is 1pcs, and it can be delivered within 5-8 working days. The payment terms are T/T, Western Union, MoneyGram, and up to 1000 pieces can be supplied per week. All the products are packed in individual boxes and then packed in standard packages or customers’ requests.
We provide a high level of technical support and service to ensure our customers get the most out of their Accelerometer Sensor. Our team of experienced professionals is committed to providing customers with the technical assistance they need, whenever they need it.
We provide technical support for the Accelerometer Sensor through a variety of channels, including telephone support, email support, live chat support, and online resources. Our team is available to answer questions and provide guidance on any issue related to the Accelerometer Sensor.
We also provide product training, which is designed to help customers maximize their use of the Accelerometer Sensor. We can help customers understand the features, benefits, and proper use of the product, as well as troubleshooting tips and best practices.
Our technical support and service is provided free of charge. We are committed to providing our customers with the best possible experience when using our products.
The Accelerometer Sensor will be shipped in a secure, corrugated cardboard box. The box should be filled with enough packing material to keep the sensor safe during transportation. The box should also be clearly labeled with the address of the recipient.
If the Accelerometer Sensor is being shipped internationally, special customs forms must be filled out. All necessary documents such as invoices, packing lists, and certificates of origin should also be included.
The Accelerometer Sensor should be handled with care and checked for damage before being shipped. It is important to inspect the product for any signs of physical damage or tampering.
