Product Description:
Accelerometer Sensor is an essential motion velocity sensor and a highly advanced vibration detection system that can detect even the slightest of vibrations. It is designed to provide accurate and reliable sensing of motion velocity and vibration detection with a deviation value K0/K1 of ≤±5 Mg, a noise level of 5mV, and a threshold value of 5μg. This size of this advanced system is 18.2mm X23mm and is ideal for vibration detection applications. The Accelerometer Sensor is an excellent choice for applications requiring precise motion velocity and vibration detection. It is reliable, durable, and offers unparalleled performance.
The Accelerometer Sensor is the ideal choice for detecting small changes in motion velocity and vibration. It can accurately detect extremely subtle vibrations and motion velocity changes. Its advanced features make it more accurate and reliable than other vibration detection systems. With its small size, it can easily fit into any application, making it an ideal choice for precise vibration detection. Additionally, it is easy to install and maintain, making it a cost-effective solution for vibration detection applications.
The Accelerometer Sensor is an ideal choice for anyone looking for a reliable and accurate motion velocity and vibration detection system. It is designed to deliver precise and reliable results, and its advanced features make it the perfect choice for any application that requires precise motion velocity and vibration detection. The Accelerometer Sensor is an essential motion velocity sensor and a highly advanced vibration detection system that can detect even the slightest of vibrations.

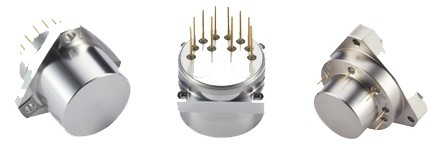

1．Square flange dimensions
Pin definition:
1, Signal output
2, air
3, power -15V
4, power +15V
5, power and signal ground
6, 7, 8, empty
9, -9V or pt1000
10, +9V or pt1000

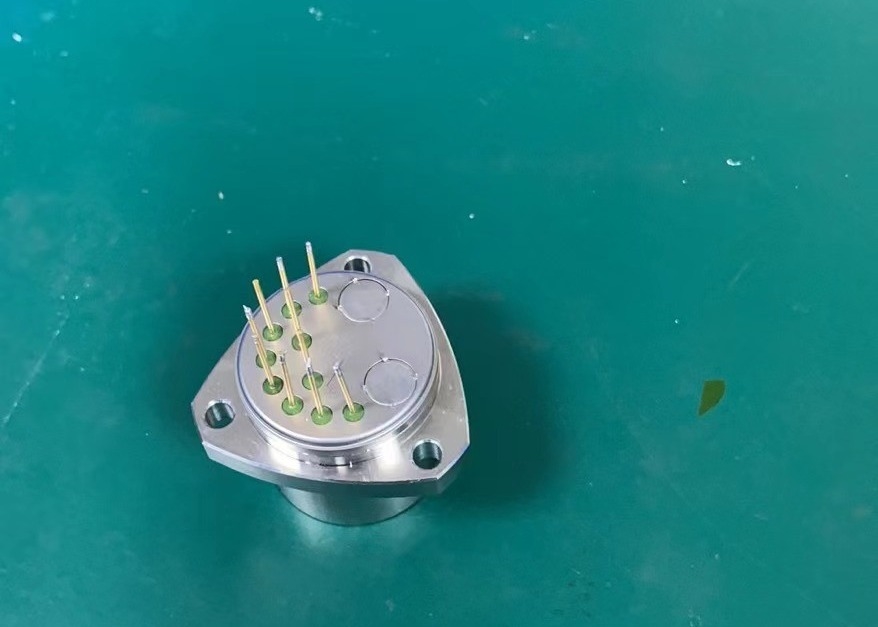

2．Triangular flange dimensions
3．Dimensions of inverted triangle flange
Technical Parameters:
| Number |
Parameters |
KSJB3-01 |
KSJB3-02 |
KSJB3-03 |
| 1 |
Scope |
±60g |
±60g |
±60g |
| 2 |
Threshold value |
5μg |
5μg |
5μg |
| 3 |
deviation value K0/K1 |
≤±5 mg |
≤±7 mg |
≤±5 mg |
| 4 |
scale factor K1 |
1.0±0.2 mA/g |
1.0±0.2 mA/g |
0.6±0.2 mA/g |
| 5 |
Second order nonlinear coefficient K2 |
≤±20μg /g2 |
≤±30μg /g2 |
≤±20μg /g2 |
| 6 |
0g 4 hours short-term stability |
≤10 μg |
≤20 μg |
≤20 μg |
| 7 |
1g 4 hours short-term stability |
≤10 ppm |
≤20 ppm |
≤20 ppm |
| 8 |
deviation value synthesis repeatability σK0 (1σ,one month) |
≤15 μg |
≤50 μg |
≤50 μg |
| 9 |
Scale factor integrated repeatability σK1/K1 (1σ,one month) |
≤15ppm |
≤50 ppm |
≤50ppm |
| 10 |
Comprehensive repeatability of nonlinear coefficients K2/K1(1σ,one month) |
≤±20 μg /g2 |
≤±30 μg /g2 |
≤±30 μg /g2 |
| 11 |
deviation value Temperature coefficient(The mean value of the whole temperature zone) |
≤±15 μg /℃ |
≤±50 μg /℃ |
≤±50 μg /℃ |
| 12 |
Scale factor Temperature coefficient(The mean value of the whole temperature zone) |
≤±15 ppm /℃ |
≤±80 ppm /℃ |
≤±50 ppm /℃ |
| 13 |
Noise(The sampling resistance is 840Ω) |
≤5mv |
≤8.4mv |
≤8.4mv |
| 14 |
Natural frequency |
350~800 Hz |
350~800 Hz |
350~800 Hz |
| 15 |
bandwidth |
800~2500 Hz |
800~2500 Hz |
800~2500 Hz |
| 16 |
Random vibration |
10g(20-2000Hz) |
10g(20-2000Hz) |
10g(20-2000Hz) |
| 17 |
strike |
150g,4.5ms,1/2sin |
150g,4.5ms,1/2sin |
150g,4.5ms,1/2sin |
| 18 |
Operating temperature range |
-55～+85℃ |
-55～+85℃ |
-55～+85℃ |
| 19 |
Storage temperature range |
-60~+120℃ |
-60~+120℃ |
60~+120℃ |
| 20 |
Power supply |
±12~±15V |
±12~±15V |
±12~±15V |
| 21 |
Current consumption |
≤±20mA |
≤±20mA |
≤±20mA |
| 22 |
Temperature sensor |
User customizable |
User customizable |
User customizable |
| 23 |
dimension |
Ф18.2X23mm |
Ф18.2X23mm |
Ф18.2X23mm |
| 24 |
weight |
≤30g |
≤30g |
≤30g |
Note:
1. Scale factor is adjusted according to user requirements;
2.Temperature sensor: divided into AD590, pt1000, 18B20,
3. Test cycle: divided into 1 month, 3 months, 6 months, 12 months, according to user requirements for testing;
4. According to user installation requirements; The dimensions can be slightly adjusted according to user requirements, and other test requirements can be carried out according to customer requirements.
|
Applications:
Kacise's KSJB3 Accelerometer Sensor offers excellent performance and is suitable for various applications, such as automotive, industrial, medical and aerospace. It is an ideal tool for measuring acceleration, vibration, inclination and shock in a wide range of applications. It can be used to measure the acceleration of a vehicle, detect vibration in industrial processes, monitor motion of medical devices, measure shock in aerospace applications and more. It is packed in individual boxes and all boxes are packed in standard packages or customers’ requests.
Support and Services:
Accelerometer Sensor Technical Support and Service
We provide a wide range of technical support and service for our Accelerometer Sensor products. Our highly trained experts are available to help you with your product and answer any questions you may have.
- Phone Support - Call our toll-free number for help with installation, troubleshooting, and any other questions you may have.
- Online Support - Our website includes a comprehensive database of product information and FAQs.
- Live Chat Support - Our online customer service representatives are available to answer your questions.
- Email Support - Send us an email and we will respond to your inquiry within 24 hours.
For more information about our Accelerometer Sensor products, please visit our website. We are committed to providing our customers with the best possible service and support.
Packing and Shipping:
Packaging and Shipping of Accelerometer Sensor
The Accelerometer Sensor will be packaged in a sealed plastic bag and placed in a cardboard box for shipment. The box will be filled with protective foam to prevent any damage during transit. The box will then be sealed with tape and labeled accordingly for easy identification.
Once the package is ready, it will be shipped via a reliable courier service for faster delivery. The tracking number will be provided to the customer for easy tracking of the package.
