| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSJB3 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Bandwidth: | 800~2500 Hz | Range: | ±60g |
|---|---|---|---|
| Threshold Value: | 5μg | Weight: | ≤30g |
| Size: | Ф18.2mm X23mm | Operating Temperature: | -55°C To +85°C |
| Noise: | 5mV | Deviation Value K0/K1: | ≤±5 Mg |
| High Light: | 2500 Hz Accelerometer Sensor,Compact Accelerometer Sensor,Quartz Acceleration Measurement Unit |
||
1．Square flange dimensions
Pin definition:
1, Signal output
2, air
3, power -15V
4, power +15V
5, power and signal ground
6, 7, 8, empty
9, -9V or pt1000
10, +9V or pt1000
2．Triangular flange dimensions
3．Dimensions of inverted triangle flange
Note:
1. Scale factor is adjusted according to user requirements;
2.Temperature sensor: divided into AD590, pt1000, 18B20,
3. Test cycle: divided into 1 month, 3 months, 6 months, 12 months, according to user requirements for testing;
4. According to user installation requirements; The dimensions can be slightly adjusted according to user requirements, and other test requirements can be carried out according to customer requirements. |
|---|

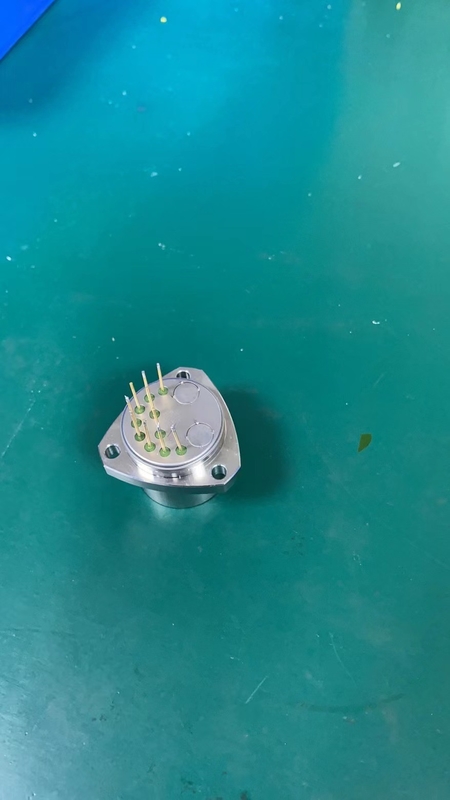

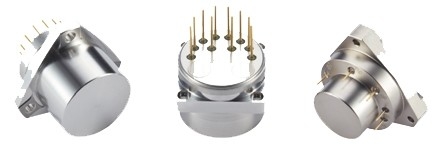

The Kacise KSJB3 Accelerometer Sensor is ideal for measuring and monitoring acceleration, velocity, displacement, and other dynamic activities. It is used in a variety of industries, such as aerospace, automotive, industrial automation, and medical. It is widely used for vibration monitoring in industrial and medical applications. It is also used for seismic and structural health monitoring in aerospace and automotive applications. The sensor is suitable for use in extreme environments, such as high-temperature, low-temperature, explosive-proof, and high-pressure applications. The sensor is highly reliable and accurate, making it perfect for precision measurement applications.
The Kacise KSJB3 Accelerometer Sensor is a reliable and cost-effective solution for measuring acceleration and other dynamic activities. It is designed to provide precise and accurate data with a wide range of operating temperatures and bandwidths. The product has an explosion-proof certification, making it suitable for use in hazardous environments. The wide temperature range and power supply make it suitable for use in extreme environments. The sensor is highly reliable and accurate, making it perfect for precision measurement applications.
Our technical support and service staff are available to help you with any questions or problems you may have with your Accelerometer Sensor. We can provide assistance with installation, troubleshooting, product maintenance, and software updates.
We also offer a range of product customization options, such as custom calibrations, mounting options, and custom data formats. Our team of experts are here to work with you to create the perfect solution for your specific needs.
Accelerometer Sensor is packaged in a waterproof and shockproof box. The box is sealed with a plastic cover to protect the product from dust, dirt and moisture. The box is then labelled with a barcode and product information including product name, serial number, and country of origin.
The product is shipped using an expedited courier service. The shipping cost is included in the price of the product. Delivery time will depend on the destination address. The courier will provide customers with a tracking number once the product has been dispatched.
